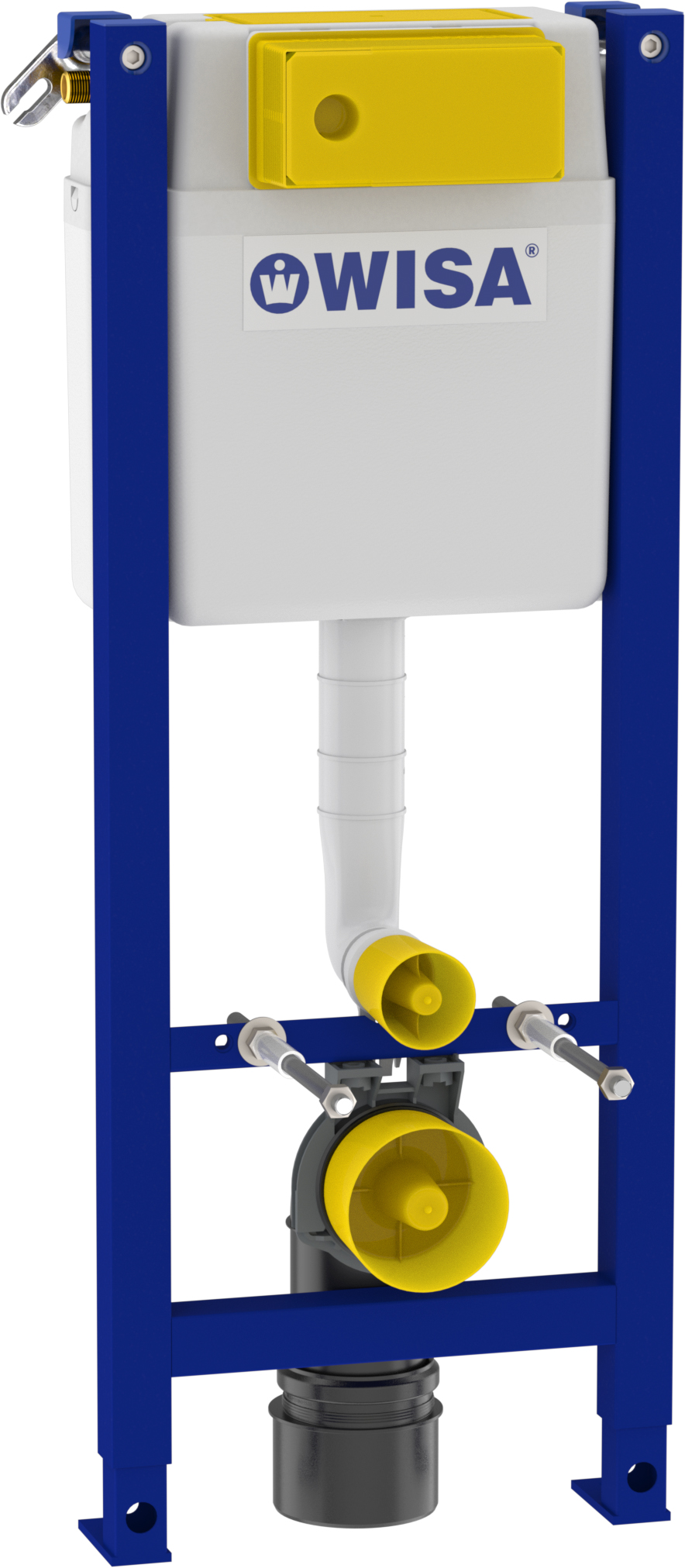

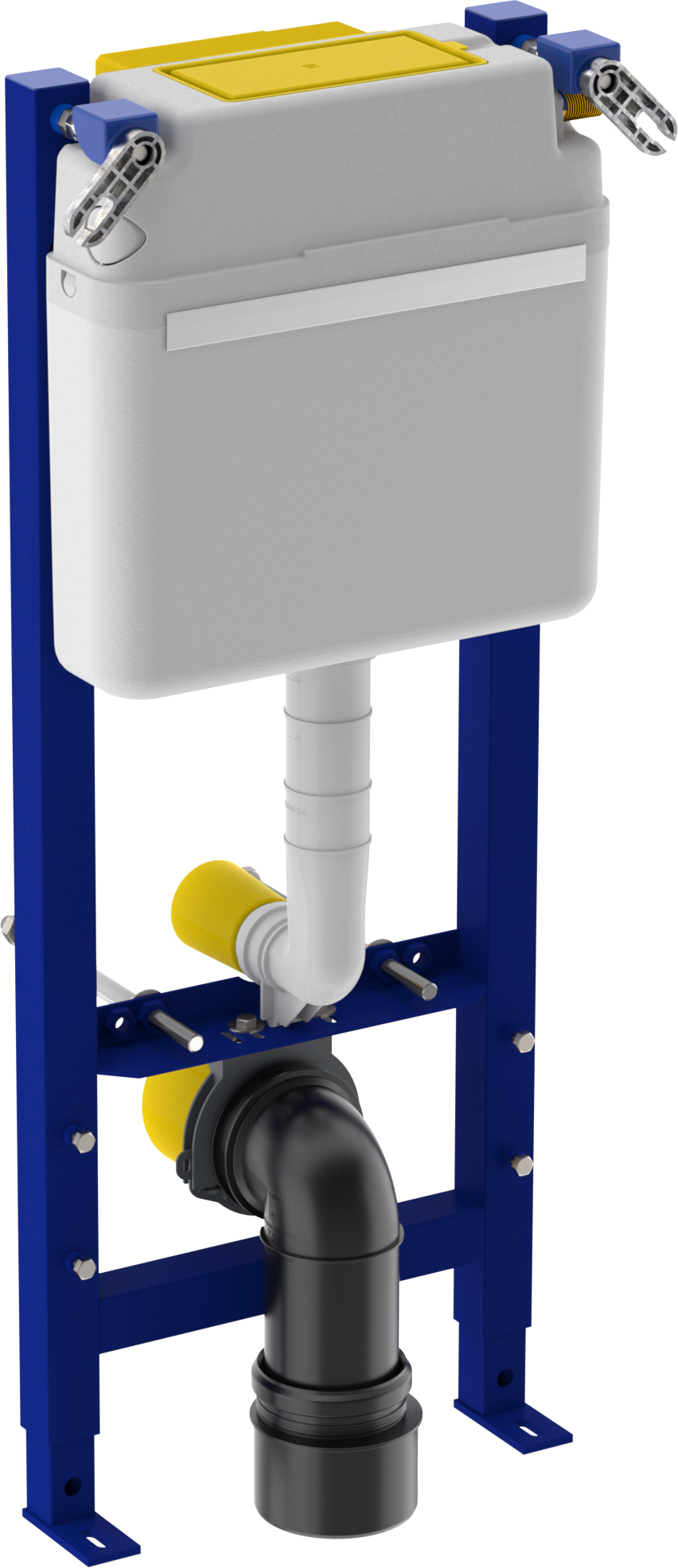

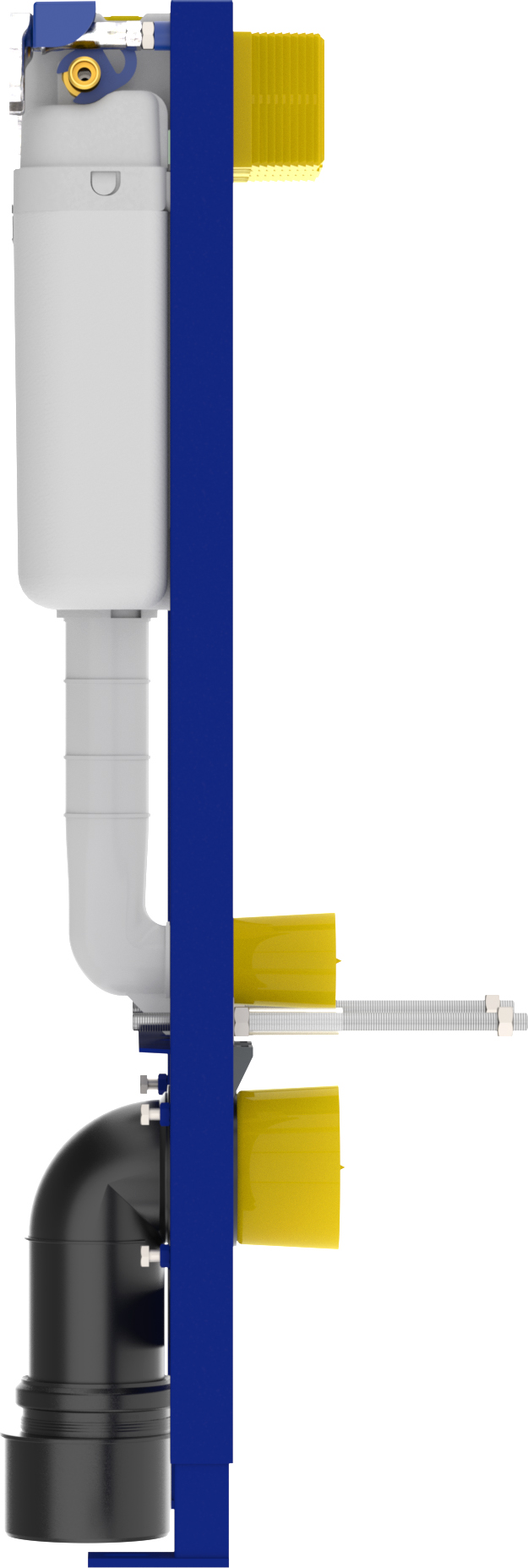

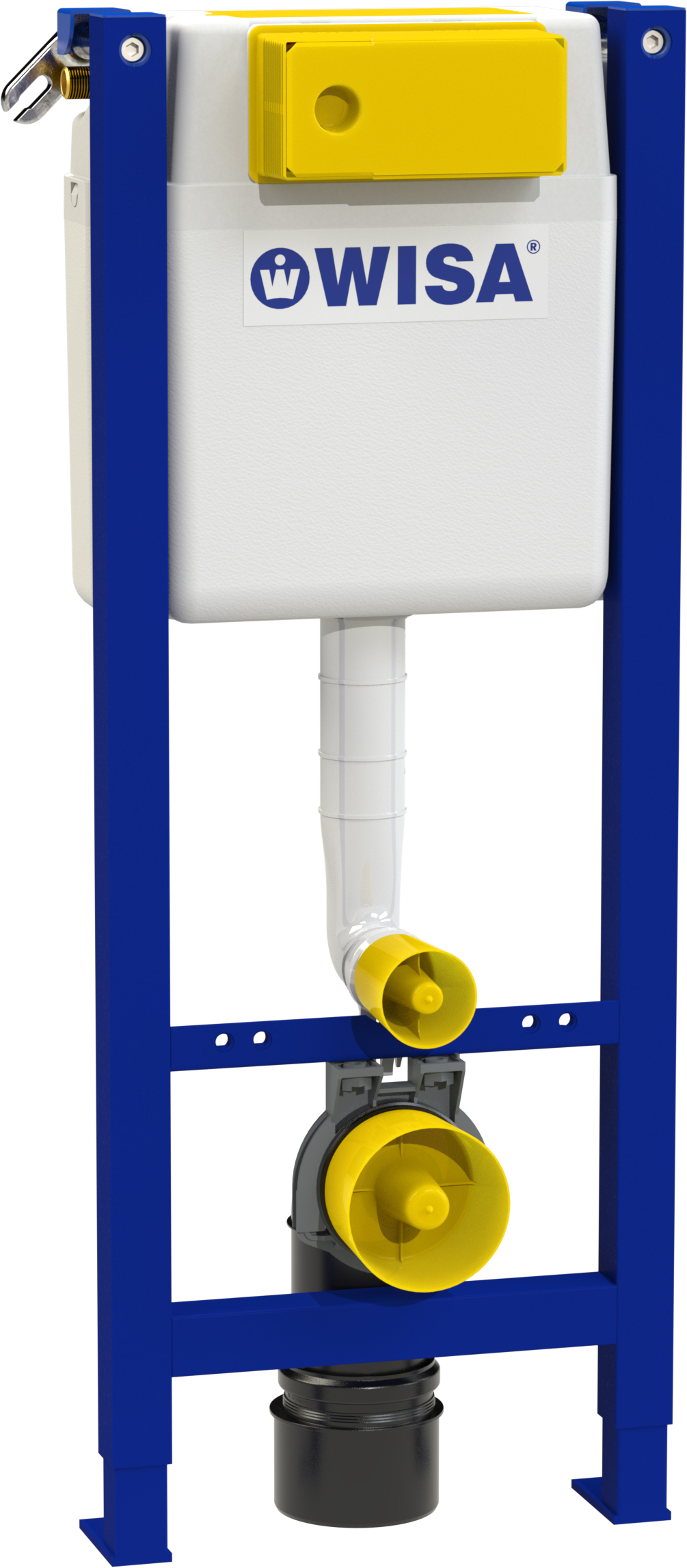

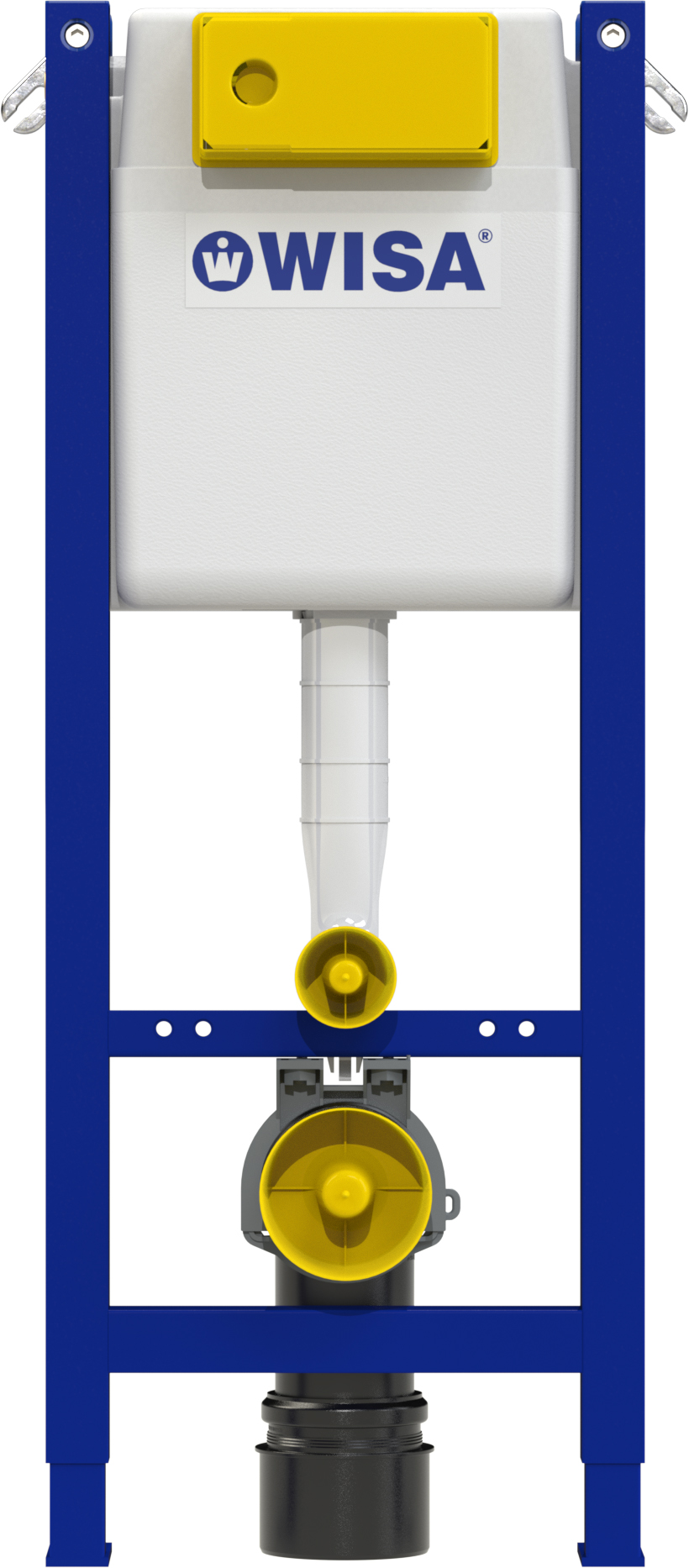

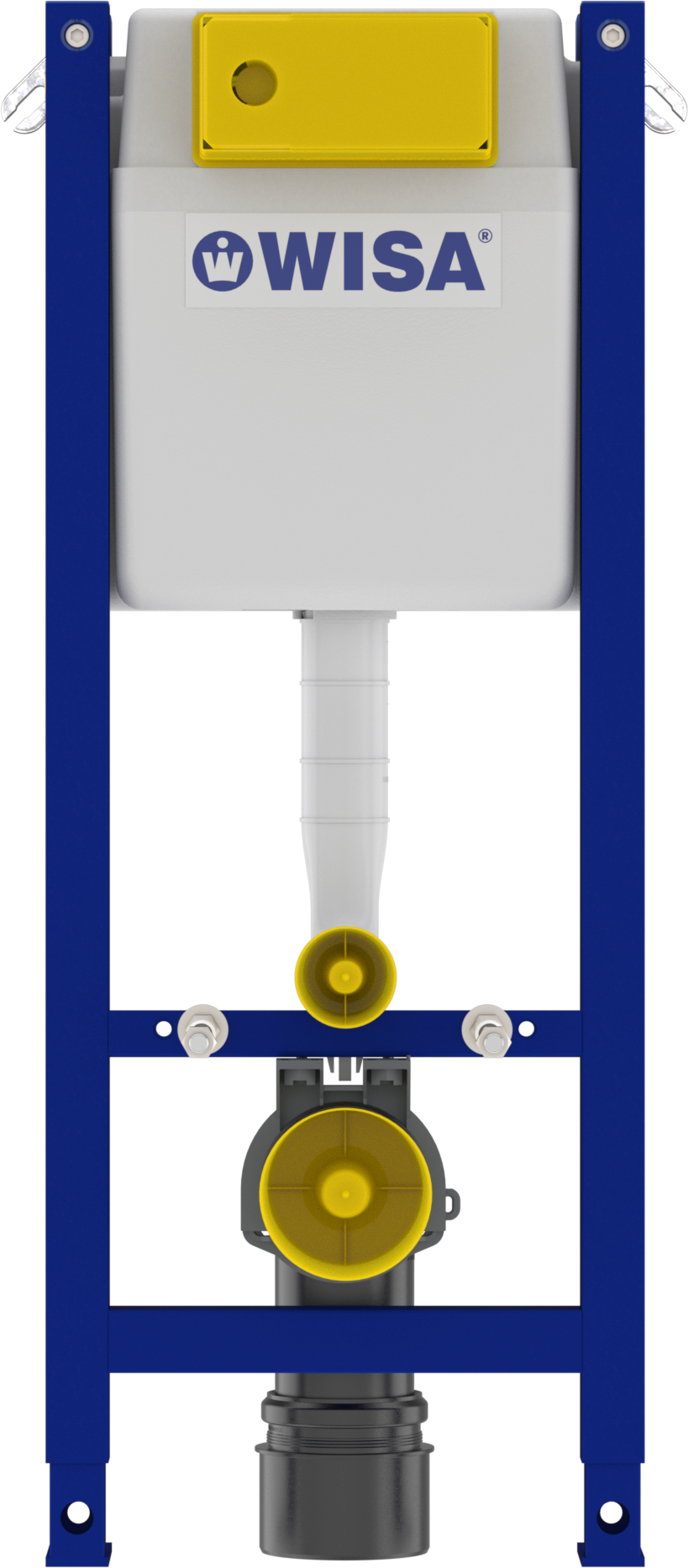

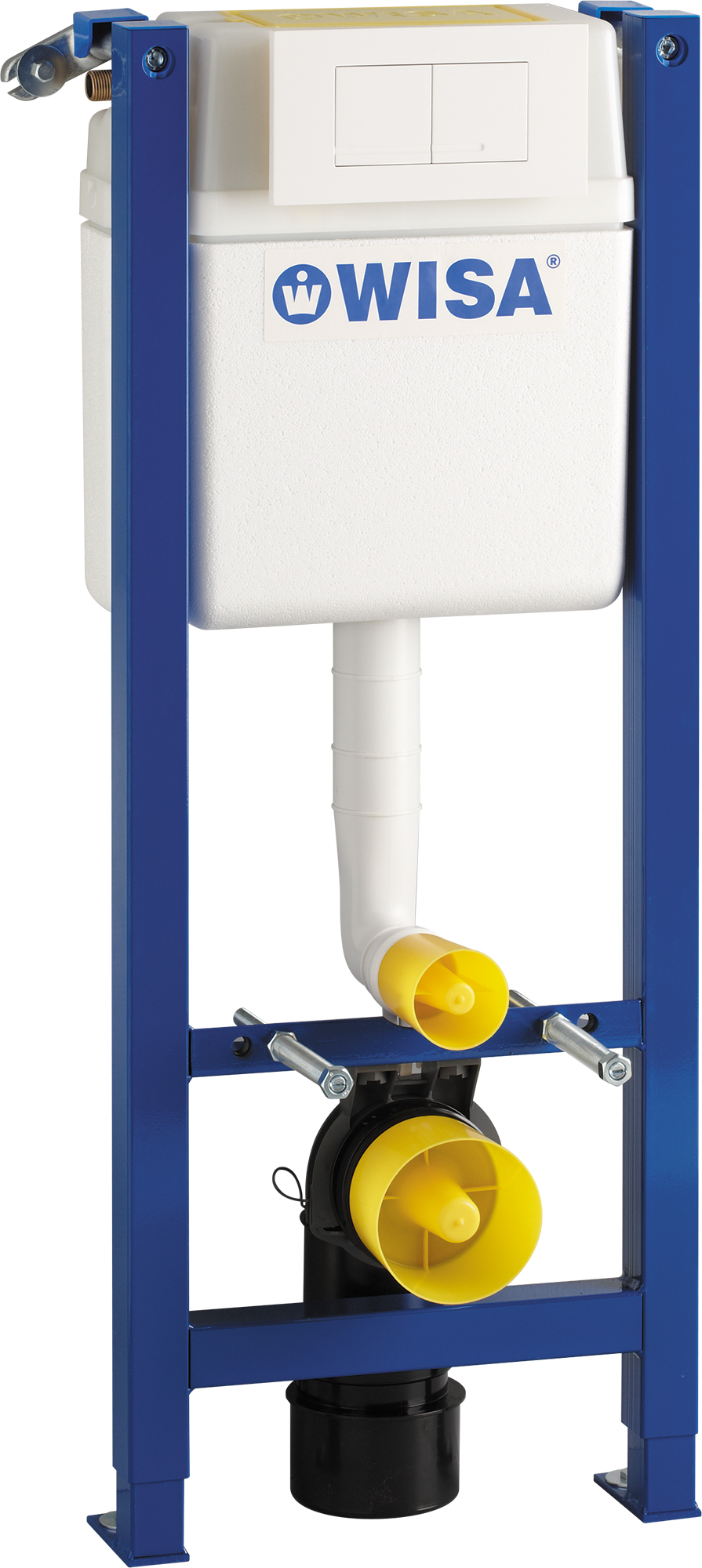

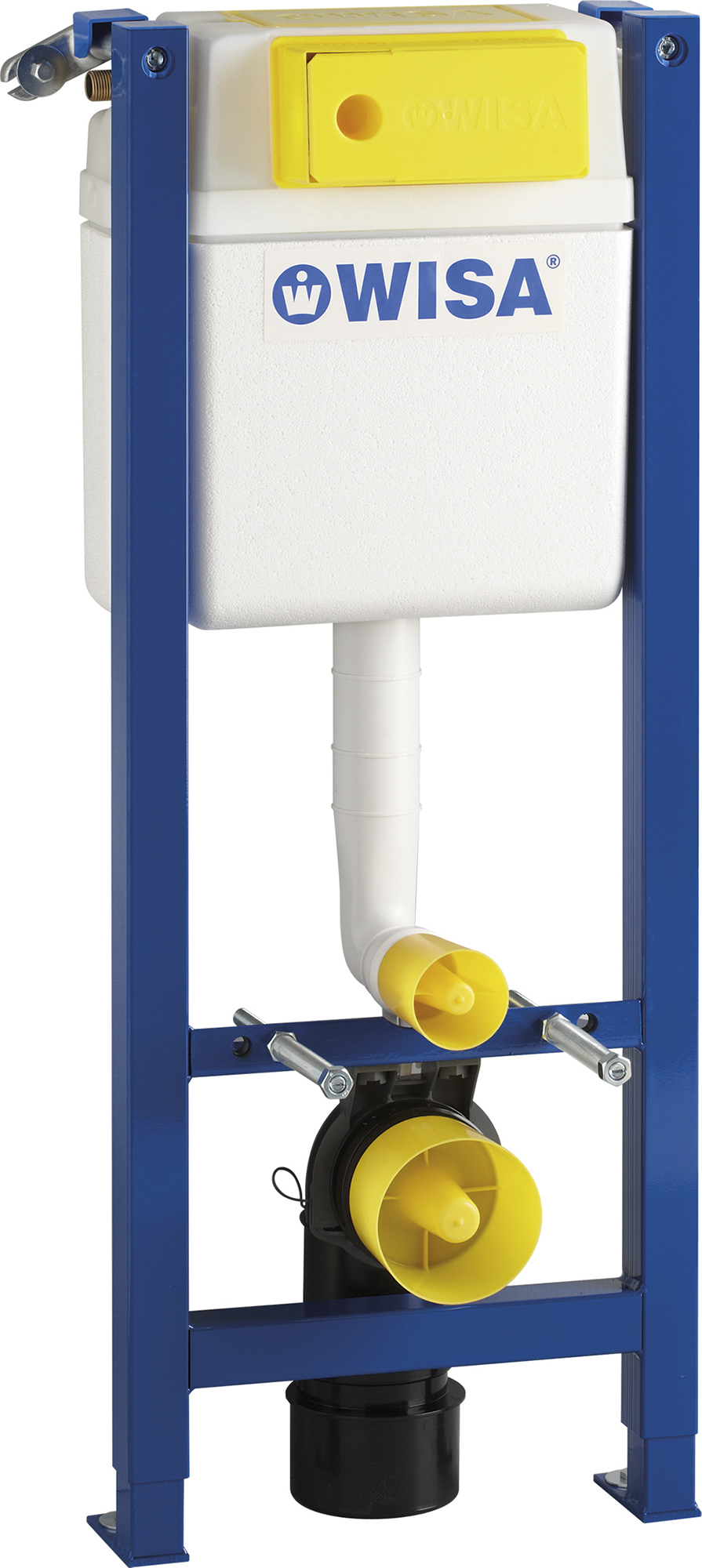

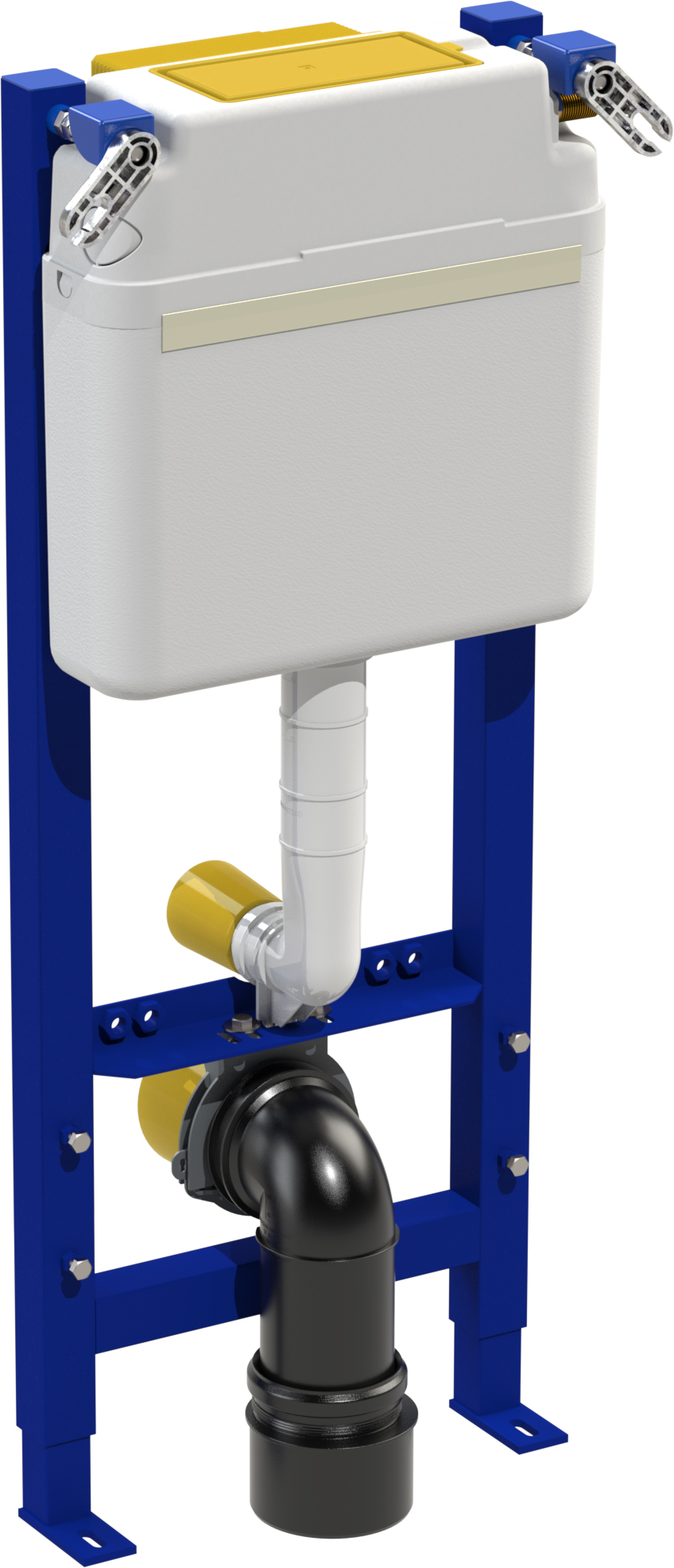

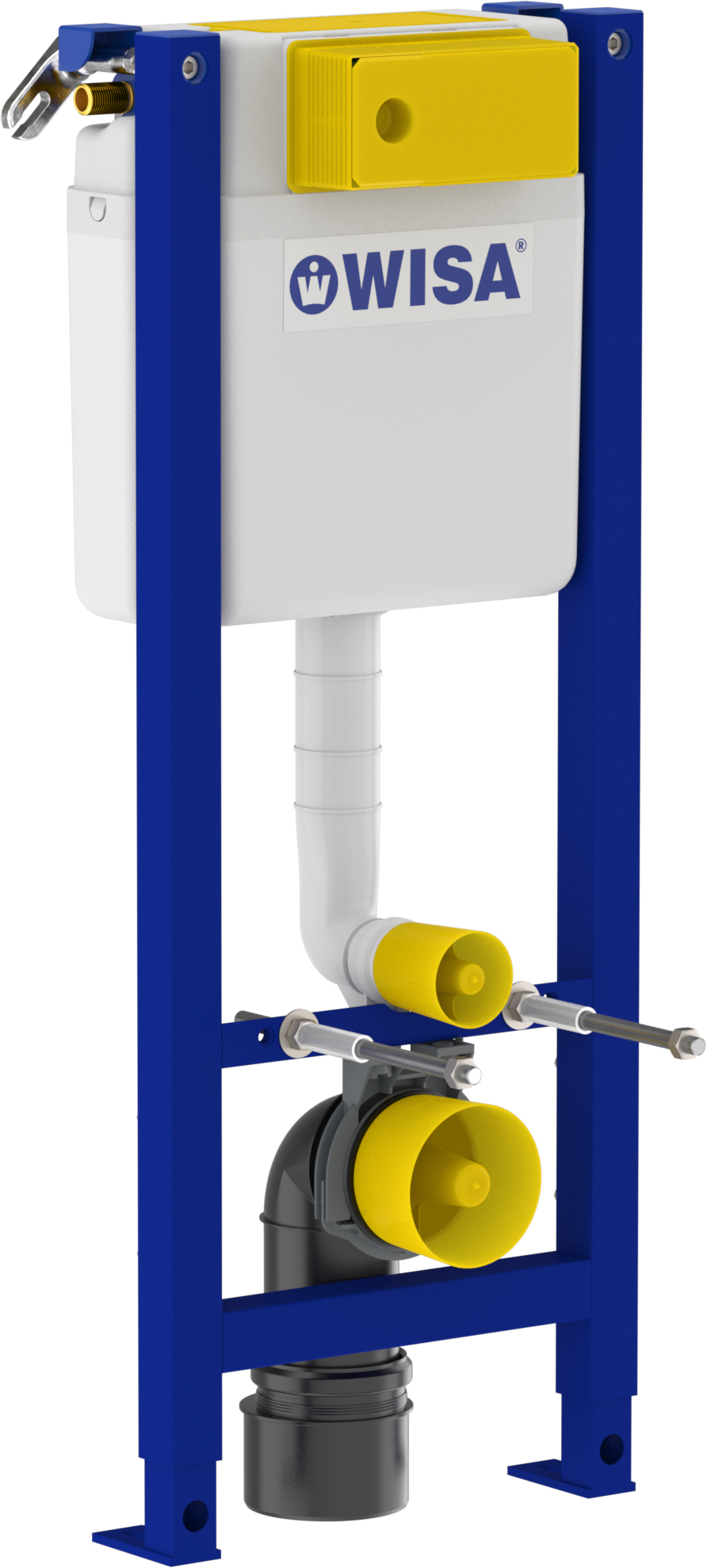

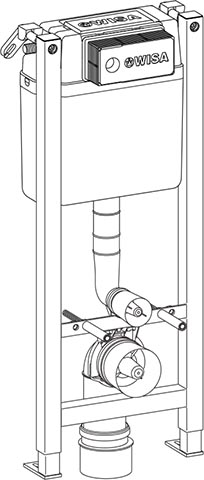

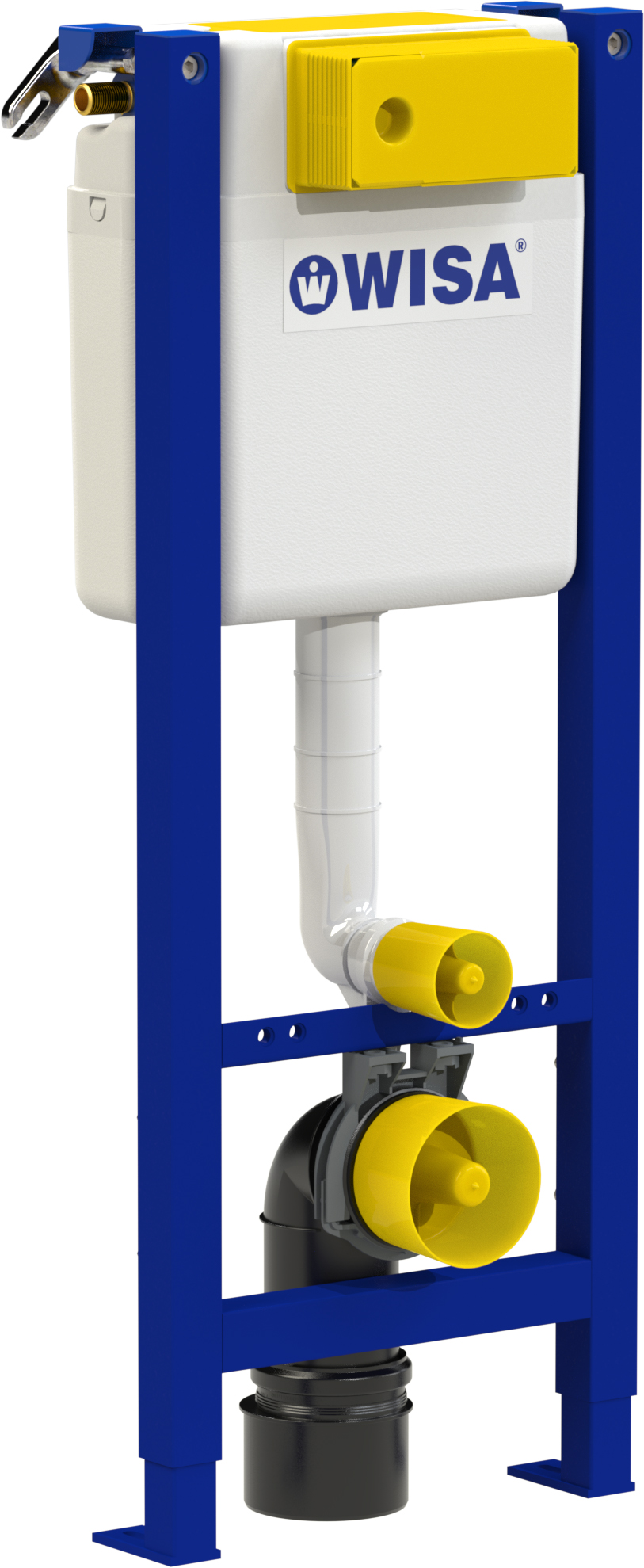

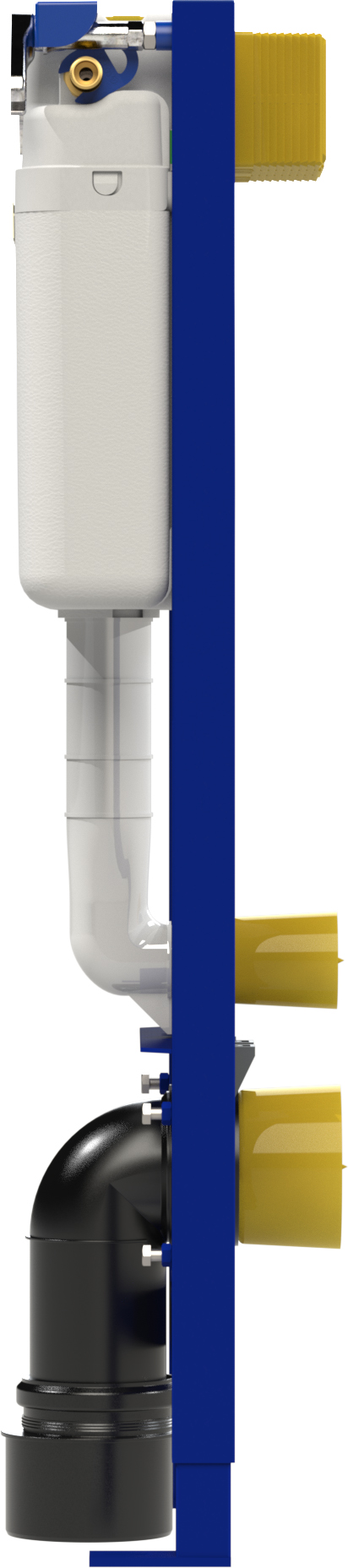

WISA XT WC top/front 98 cm
Product number:
8050453002
EAN:
8711778169098
- Pre-installed WC cistern with support frame
- Strong, powder coated frames made from 4x4 cm closed profile steel
- Good corrosion resistance

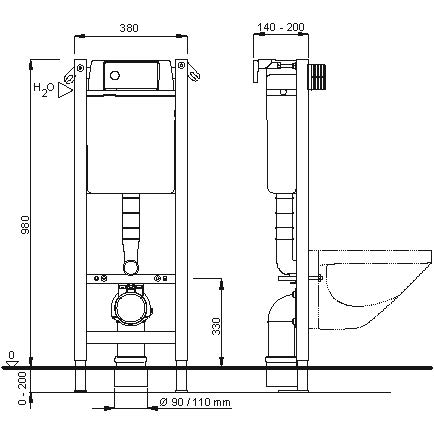

- Very small built-in frame ( Wide: 38 cm, Height: 98 cm, Depth: 14 cm)
- Frame adjustable up to 20 cm in height
- Strong flushing
- Dual flush 3/6 L
- Flush volume adjustable between 6 and 7.5 L
- HDPE fully insulated tank, prevents condensation
- Very quiet hydraulic fill valve (Acoustic class A)
- Pre-installed cistern, wall and waste pipe connections, valve and water connections
- Brass shank G1/2”
- Pre-assembled wall fixation kit
- Including WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm
- 90x90 mm elbow with adaptor
- Adaptor can also be used as a straight connector 90x110 mm
- Including insulation kit for pan to wall
- Bowl fixation for 180 and 230 mm
- Sleeves for protection of the rods
- Including cardboard drilling template and comprehensive instruction for all countries/languages
- Suitable for pneumatic and mechanical control panels
- Top or front control possible
- Modern, compact and slim design control panels available in different colours and materials
- CE EN 14055 - CL1-6- NL I - VR I
Because of the pre-installed parts it’s easy and fast to install.Very easy to exchange the products inside the cistern. Easy changing from 6/3 to 4/2 liter flush by interchanging the flush valve. Easy changing from 6 to 7,5 liters without removing the valve.
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Depth: | 140 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 980 to 1180 mm |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 980 mm |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | WISA XT Top/Front |
| Self-bearing construction: | Yes |
| Series: | XT |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | Yes |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | Yes |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
XT Control Panel ION DF glass white
Can be installed in every XT flushing system Flushing by non-touch infrared technology Mains 230 V (standard) Hydro generator or 6V battery pack (optional) Design panel in glass Dual Flush (3 / 6L or 2.5 / 4L) RGB LED lights (every color possible) WISA Intelligent Sensor Technology (WIST) Walk-away automatic flushing Hygienic flush for optimal water quality Eco Mode for power saving Change the settings by WISA App
XT Control Panel ION DF glass black
Can be installed in every XT flushing system Flushing by non-touch infrared technology Mains 230 V (standard) Hydro generator or 6V battery pack (optional) Design panel in glass Dual Flush (3 / 6L or 2.5 / 4L) RGB LED lights (every color possible) WISA Intelligent Sensor Technology (WIST) Walk-away automatic flushing Hygienic flush for optimal water quality Eco Mode for power saving Change the settings by WISA App
XT Control panel Kantos ABS white DF
Material: ABS 6 or 3 L dual flush Dimensions: 208 X 111 mm Suitable for WISA XT toilet systems Top control or front control
XT Control panel Kantos ABS matt chrome DF
Material: ABS 6 or 3 L dual flush Dimensions: 208 X 111 mm Suitable for WISA XT toilet systems Top control or front control
XT Control panel Kantos ABS bright chrome DF
Material: ABS 6 or 3 L dual flush Dimensions: 208 X 111 mm Suitable for WISA XT toilet systems Top control or front control
XT control panel Kantos Steel DF
Material: stainless steel 6 or 3 L dual flush Dimensions: 208 X 111 mm Suitable for WISA XT toilet systems Top control or front control
XT Control panel Juno ABS white DF
Material: ABS 6 or 3 L dual flush Dimensions: 208 X 111 mm to use in combination with WISA XT toilet systems to use from the front or top including pneumatic clamp
XT Control panel Juno ABS matt chrome DF
Material: ABS 6 or 3 L dual flush Dimensions: 208 X 111 mm to use in combination with WISA XT toilet systems to use from the front or top including pneumatic clamp
XT Control panel Juno ABS bright chrome DF
Material: ABS 6 or 3 L dual flush Dimensions: 208 X 111 mm to use in combination with WISA XT toilet systems to use from the front or top including pneumatic clamp
XT control panel Kantos DF
Material: tempered glass 6 or 3 L dual flush Dimensions: 208 X 111 mm Suitable for WISA XT toilet systems Top control or front control Floating impression by shadow gap
XT control panel Kantos glass black DF
Material: tempered glass 6 or 3 L dual flush Dimensions: 208 X 111 mm Suitable for WISA XT toilet systems Top control or front control Floating impression by shadow gap
WISA CLEAN 387
The unique FrescoTablet keeps the WC fresh and hygienically clean at all times, even between cleanings The FrescoTablet has a cleansing effect Every flush becomes a cleaning of the toilet (including under the rim of the toilet) The FrescoTablet is a specially developed product, consisting entirely of 100% biodegradable natural materials The continuous cleaning creates an extremely smooth surface The flush water has a bactericidal and effective cleansing effect The flush water colours fresh blue The FrescoTablet has a decalcifying effect Separate cleaning/bleaching agents are not necessary Suitable for XT / 387 toilet systems Suitable for XT / 387 Kantos DF control panels Including 2 FrescoTablets Excluding Kantos control panel
XT control panel Kantos Steel DF
Material: aluminium Colour: Matte white 6 or 3 L dual flush Dimensions: 208 x 111 cm Floating impression by shadow gap Suitable for WISA XT toilet systems Top control or front control
XT bedieningspaneel Kantos DF aluminium mat zwart
Material: aluminium Colour: Matte black 6 or 3 L dual flush Dimensions: 208 x 111 cm Floating impression by shadow gap Suitable for WISA XT toilet systems Top control or front control
| Product number: | Description | Image |
|---|---|---|
| 8035432783 | Universal hydraulic float valve 3/8 |
|
| 8050801525 | Flush valve |
|
| 8050801522 | Flush valve (DFF) |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
|
| 8050887175 | Tightening nut |
|
| 8050887119 | Cistern lid, cisterns XT, 387, 6052 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390031 | Clamp with control hooks, cisterns XT, 387, 6052, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390051 | SF clamp with control hocks |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050897009 | Electronische hefboom DF voor WISA XS/XT |
|
| 8050390111 | Set of mounting and adjusting pins XT/387 mechanical |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887169 | Inspection opening protection, upper/front |
|
| 8050887349 | Flush pipe |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050887372 | Adapter Ø 90/100 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
