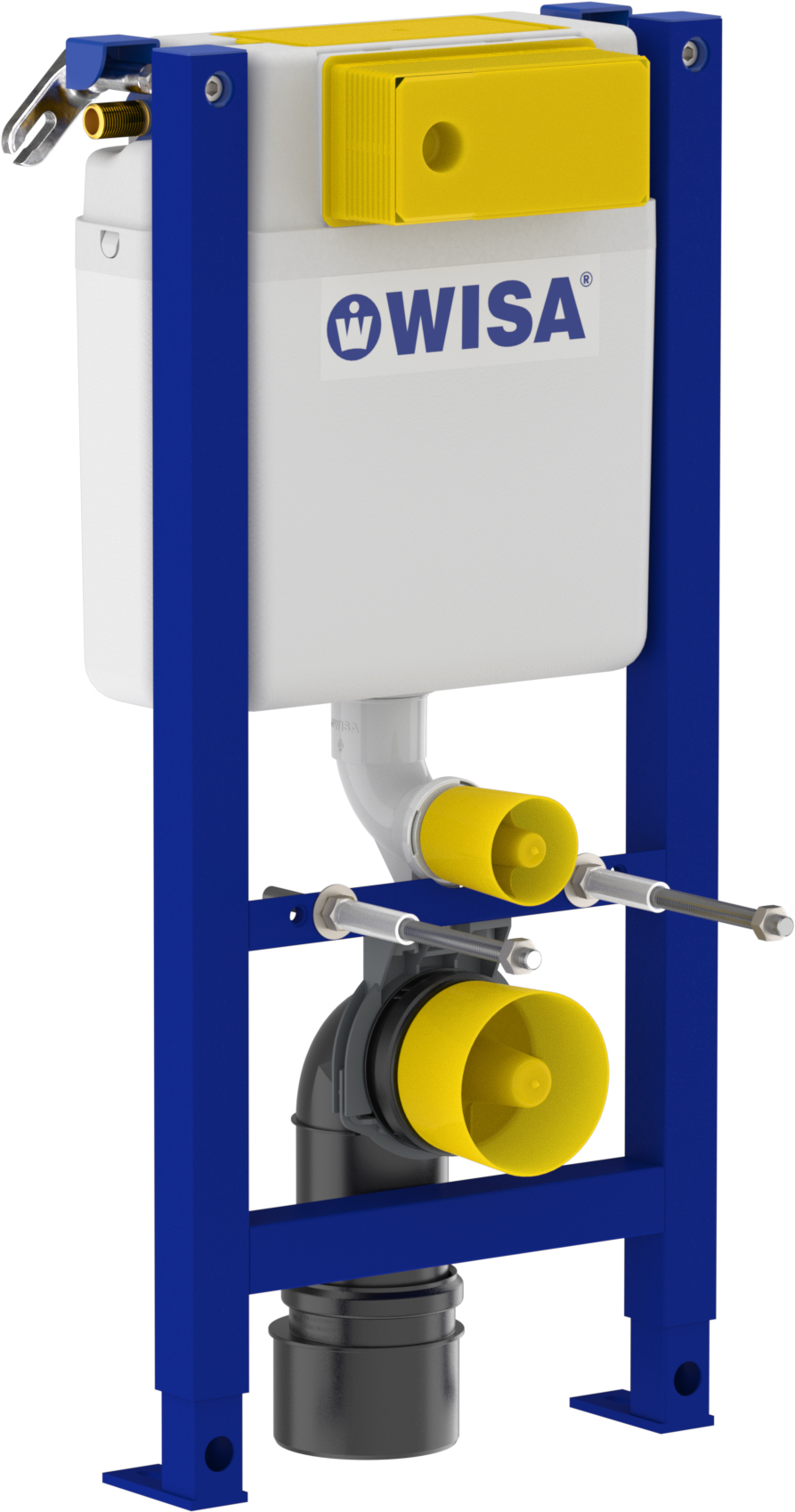

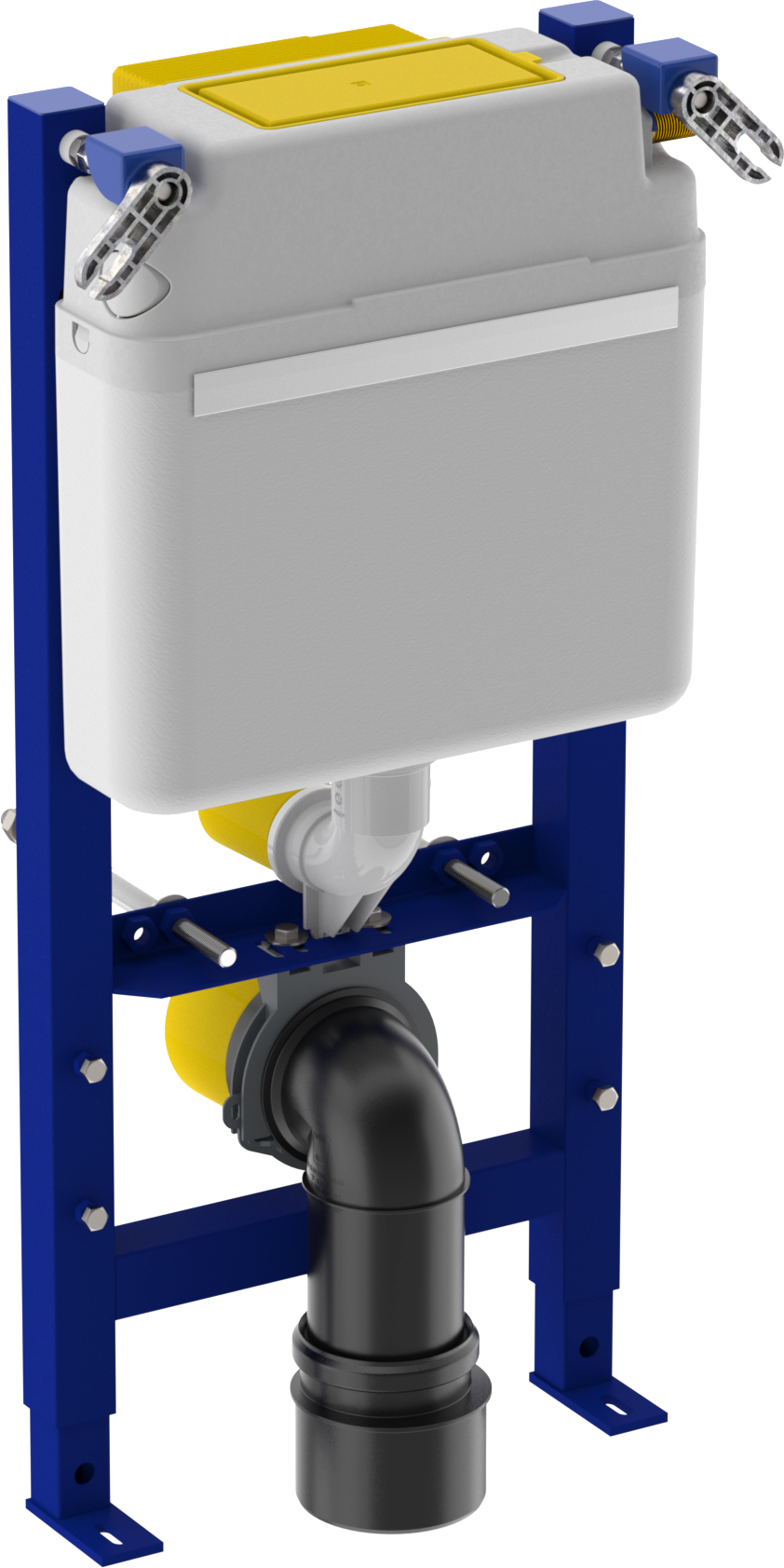

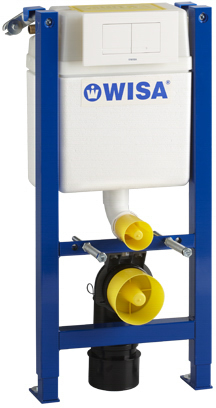

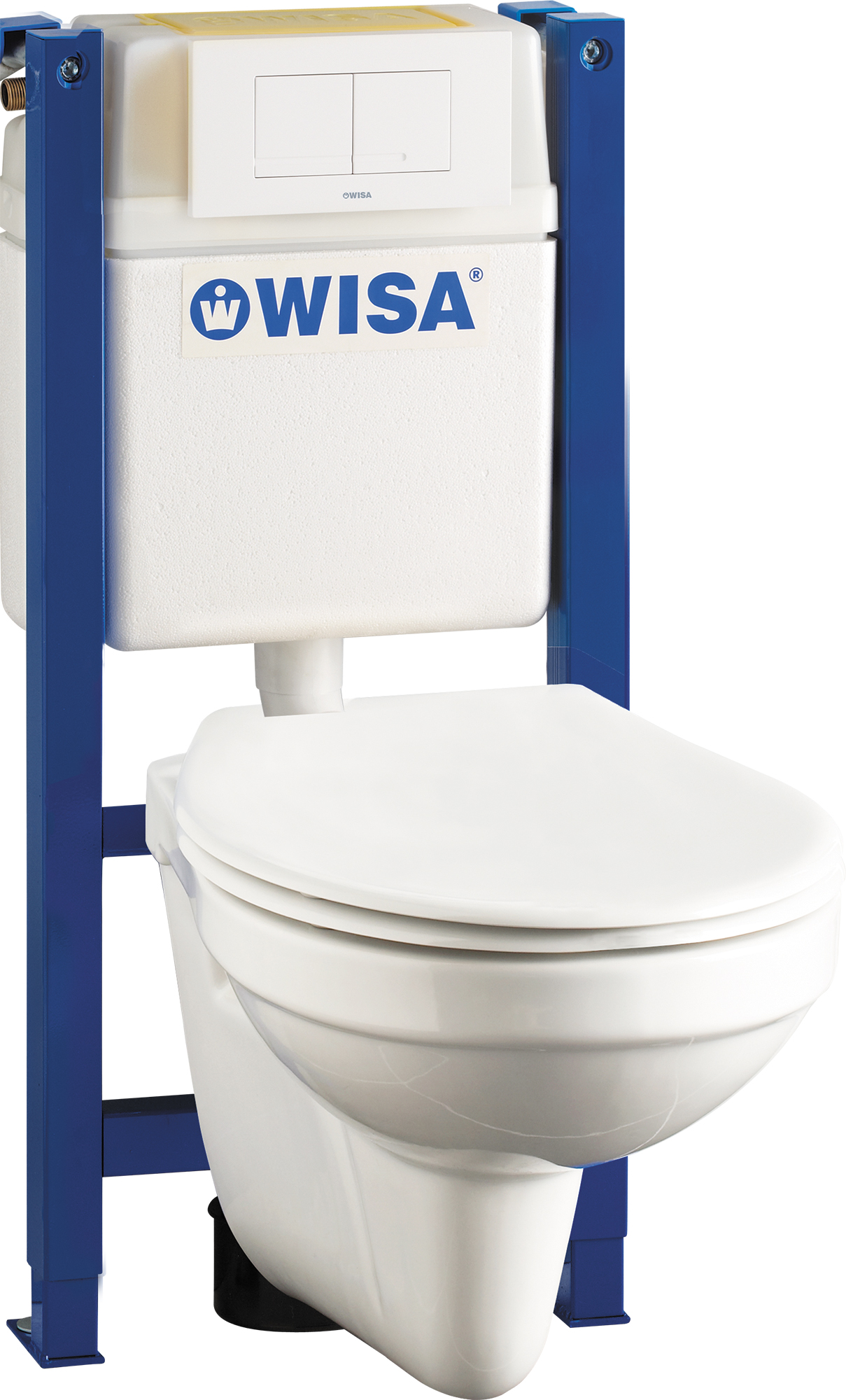

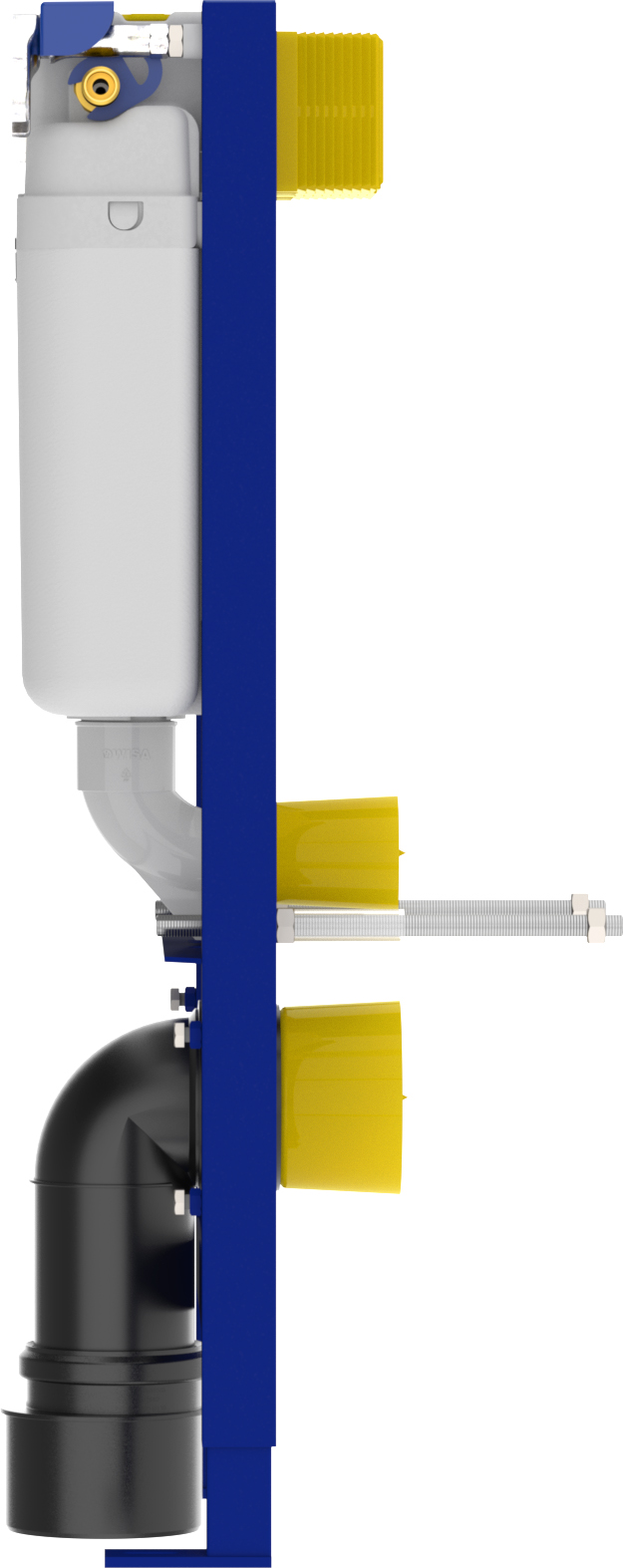

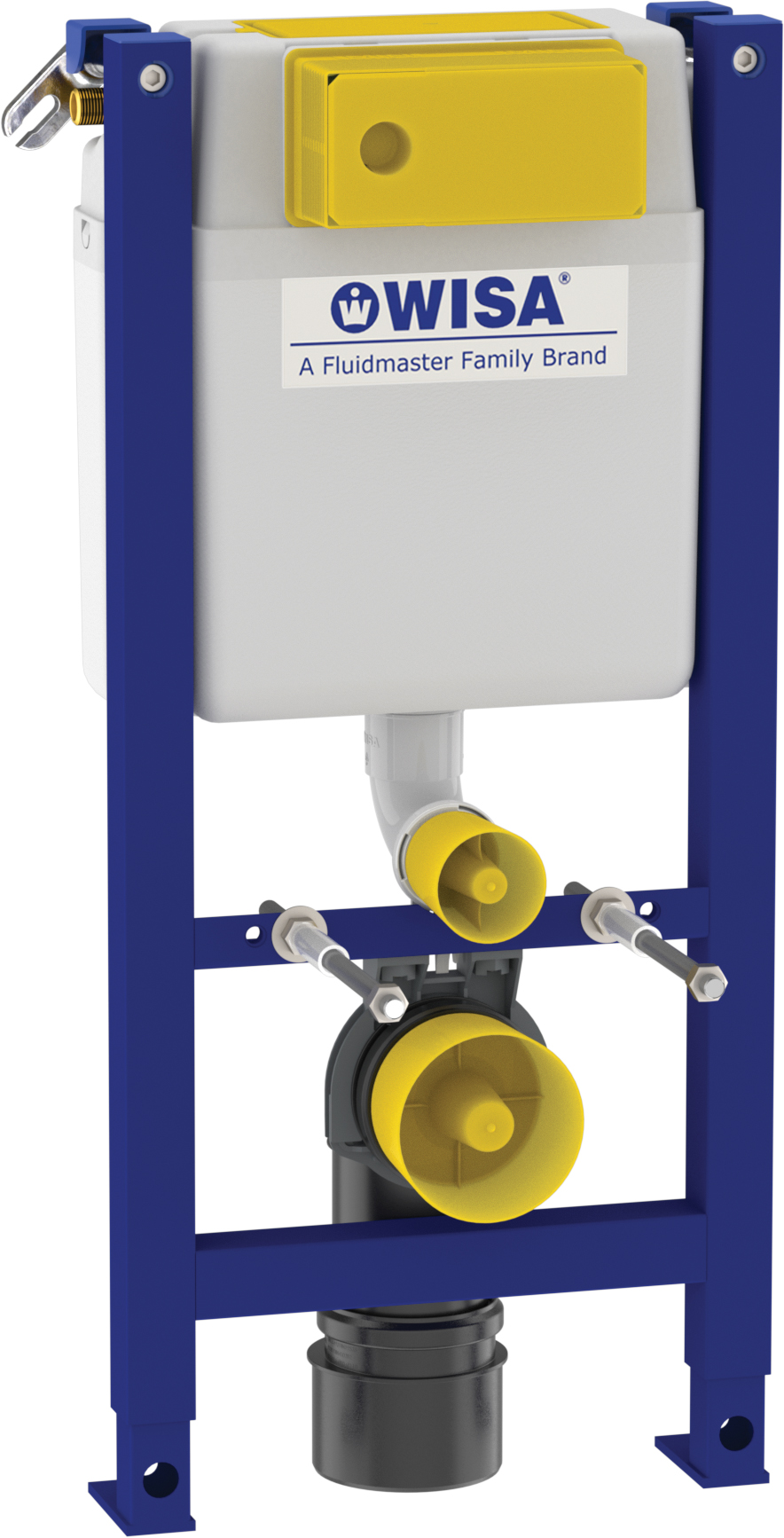

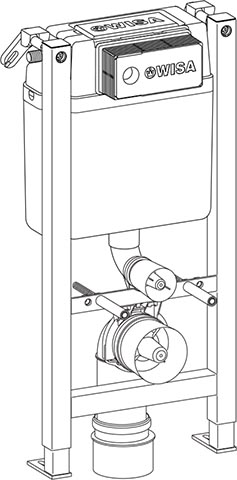

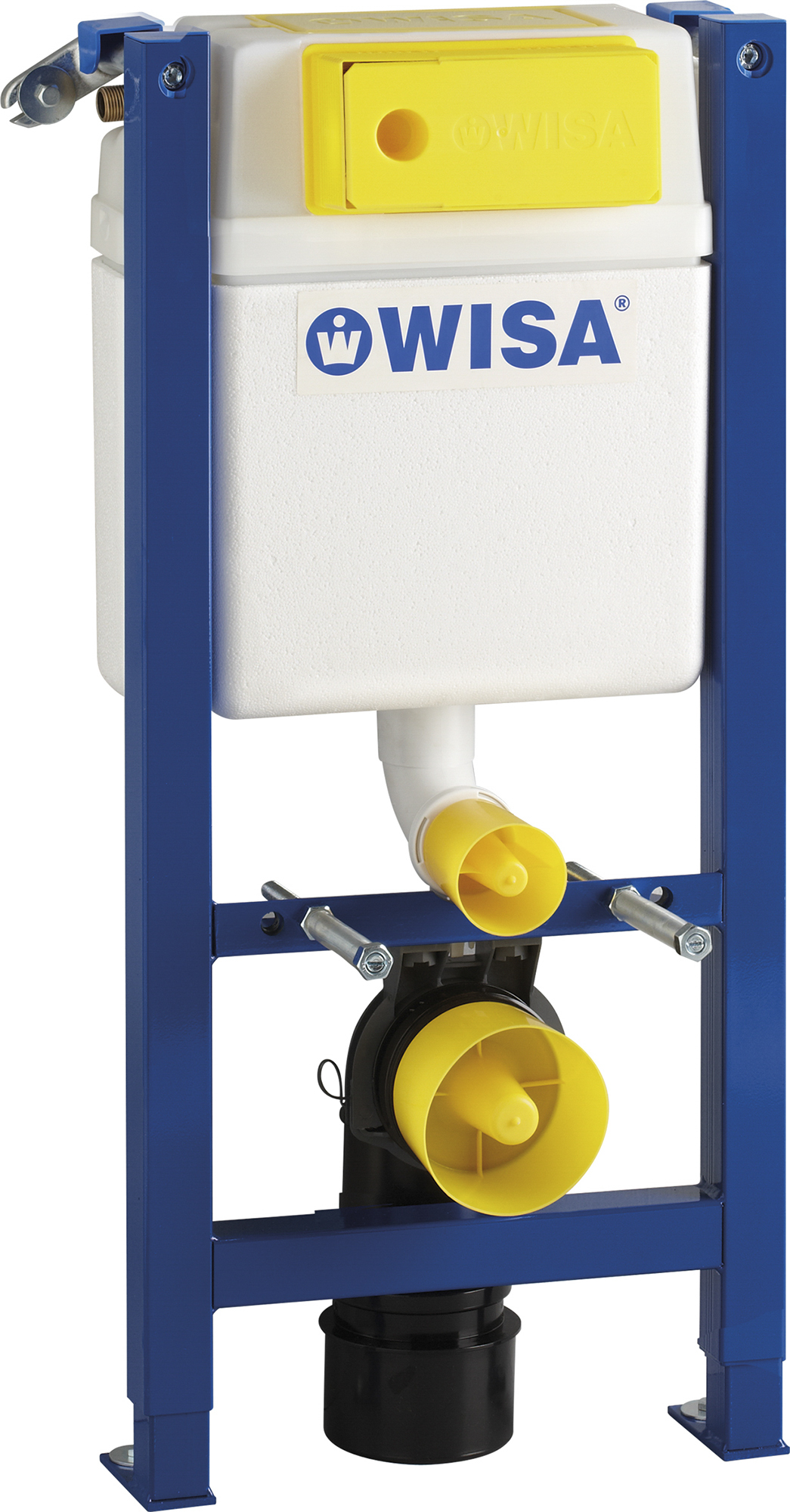

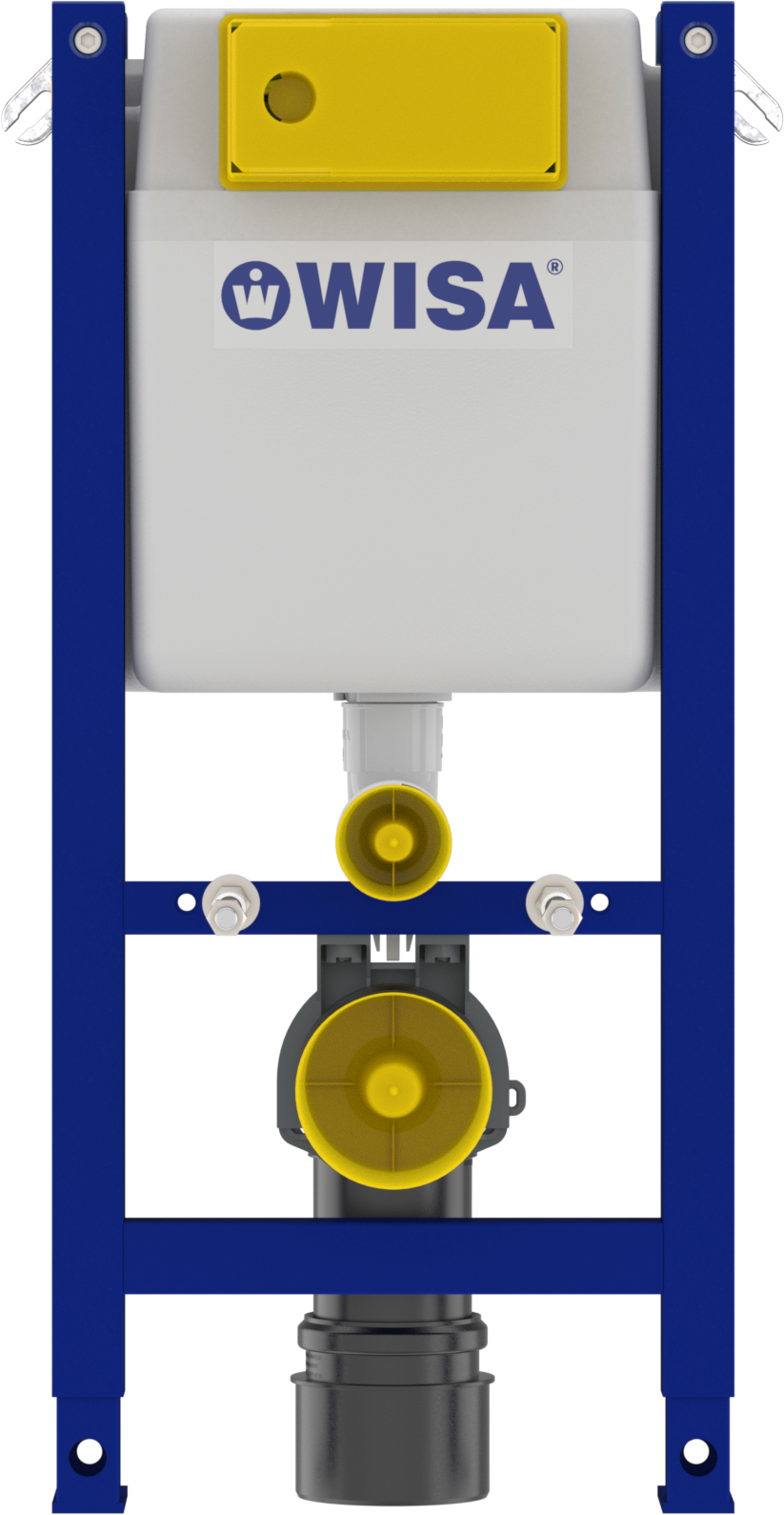

WISA XT WC top/front 83 cm
Product number:
8050453003
EAN:
8711778169104
- Pre-installed WC cistern with support frame
- Strong, powder coated frames made from 4x4 cm closed profile steel
- Good corrosion resistance

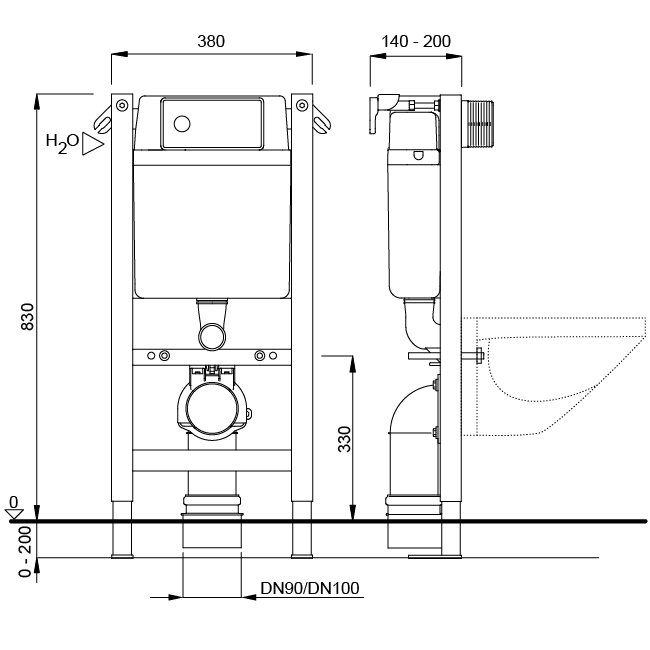

- Very small built-in frame ( Wide: 38 cm, Height: 83 cm, Depth: 14 cm)
- Frame adjustable up to 20 cm in height
- Strong flushing
- Dual flush 3/6 L
- Flush volume adjustable between 6 and 7.5 L
- HDPE fully insulated tank, prevents condensation
- Very quiet hydraulic fill valve (Acoustic class A)
- Pre-installed cistern, wall and waste pipe connections, valve and water connections
- Brass shank G1/2”
- Pre-assembled wall fixation kit
- Including WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm
- 90x90 mm elbow with adaptor
- Adaptor can also be used as a straight connector 90x110 mm
- Including insulation kit for pan to wall
- Bowl fixation for 180 and 230 mm
- Sleeves for protection of the rods
- Including cardboard drilling template and comprehensive instruction for all countries/languages
- Suitable for pneumatic and mechanical control panels
- Top or front control possible
- Modern, compact and slim design control panels available in different colours and materials
- CE EN 14055 - CL1-6- NL I - VR I
Because of the pre-installed parts it’s easy and fast to install.Very easy to exchange the products inside the cistern. Easy changing from 6/3 to 4/2 liter flush by interchanging the flush valve. Easy changing from 6 to 7,5 liters without removing the valve.
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Depth: | 140 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 830 to 1030 mm |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 830 mm |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | WISA XT Top/Front |
| Self-bearing construction: | Yes |
| Series: | XT |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | No |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | Yes |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | Yes |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432783 | Universal hydraulic float valve 3/8 |
|
| 8050801525 | Flush valve |
|
| 8050801522 | Flush valve (DFF) |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
|
| 8050887175 | Tightening nut |
|
| 8050887119 | Cistern lid, cisterns XT, 387, 6052 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390031 | Clamp with control hooks, cisterns XT, 387, 6052, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390051 | SF clamp with control hocks |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050897009 | Electronische hefboom DF voor WISA XS/XT |
|
| 8050390111 | Set of mounting and adjusting pins XT/387 mechanical |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887169 | Inspection opening protection, upper/front |
|
| 8050887349 | Flush pipe |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050887372 | Adapter Ø 90/100 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
