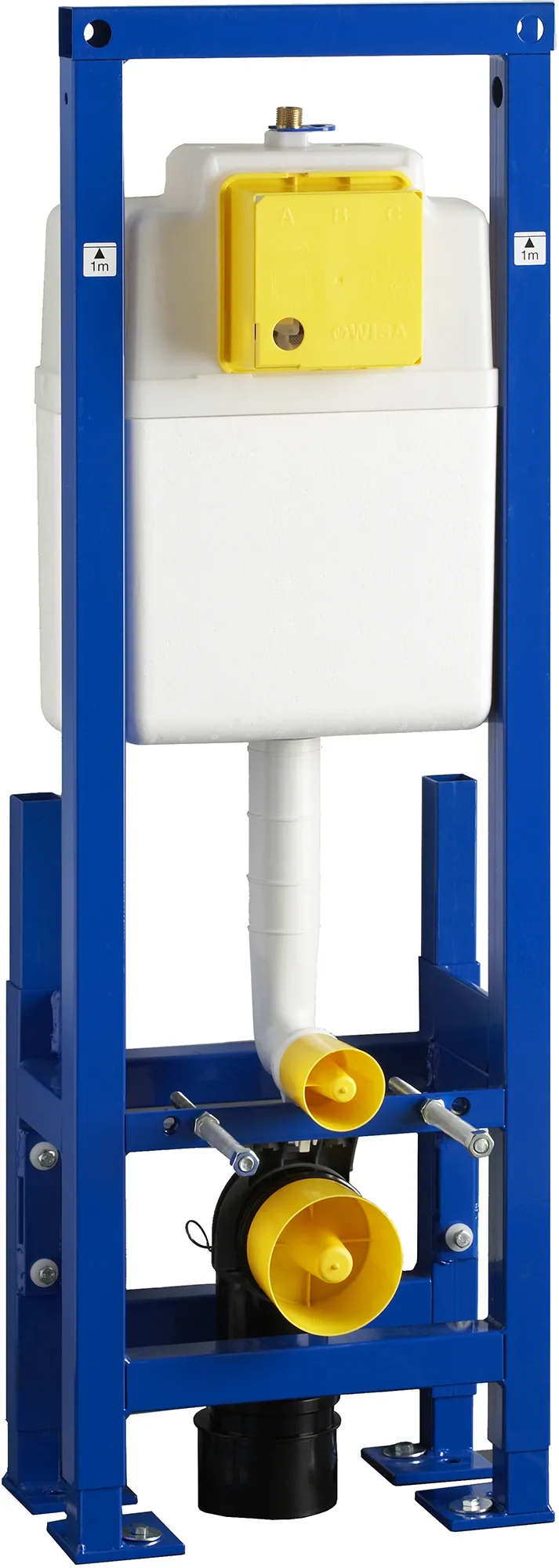

WISA XS WC frame self supporting 90/100 mm



Product number: 8050452732
EAN: 8711778121133




Adjustable depth: No
Adjustable flushing water quantity: Yes
Adjustable height: Yes
Adjustable toilet height: No
Adjustable width: No
Battery power supply: No
Centre distance of toilet attachment: 18 cm and 23 cm
Depth: 210 to 210 mm
Flushing: Two quantities
Flushing water quantity: 3 to 6 l
Frame suitable for wc with offset >60cm: Yes
Frame suitable for wc with offset >60cm: Yes
Height: 1180 to 1380 mm
KIWA certified: Yes
Load capacity >=400 kg according to EN 997: Yes
Material: Steel
Material flushing reservoir: Plastic
Max. flushing water quantity: 7.5 l
Min. flushing water quantity: 3 l
Min. shelf height: 1180 mm
Number of tap water connections: 1
Outer pipe diameter drainage: 90 mm
Programmable with remote control: No
Quality class flushing reservoir: Polypropylene (PP)
Reservoir type: WISA XS
Self-bearing construction: Yes
Series: XS
Size of tap water connection: 1/2 inch
Sound class according to EN ISO 3822: Group I, <=20 dB(A)
Spacer under reservoir: No
Suitable for drywall: Yes
Suitable for electrical operation: Yes
Suitable for flushing flow throttling: Yes
Suitable for front operation: Yes
Suitable for infrared operation: Yes
Suitable for manual operation: Yes
Suitable for pneumatic operation: Yes
Suitable for radar operation: No
Suitable for sanitary installation wall system: No
Suitable for shelf operation: No
Suitable for shower toilet: No
Suitable for solid wall: No
Suitable for toilets with a reduced contact area: Yes
Surface protection: Coated
Tap water connection: External thread
Width: 380 to 380 mm
With anti-condensation insulation: Yes
With bracket suitable for floor mounting: Yes
With bracket suitable for high wall mounting: Yes
With bracket suitable for low wall mounting: No
With building management system connection: No
With contact sound insulation set: Yes
With control panel: No
With drainage bend: Yes
With electrical connection: No
With fan connection: No
With flushing bend: Yes
With front cladding: No
With inlet and outlet fittings: Yes
With mounting material for the element: Yes
With mounting material for the toilet: Yes
With stop valve: Yes
