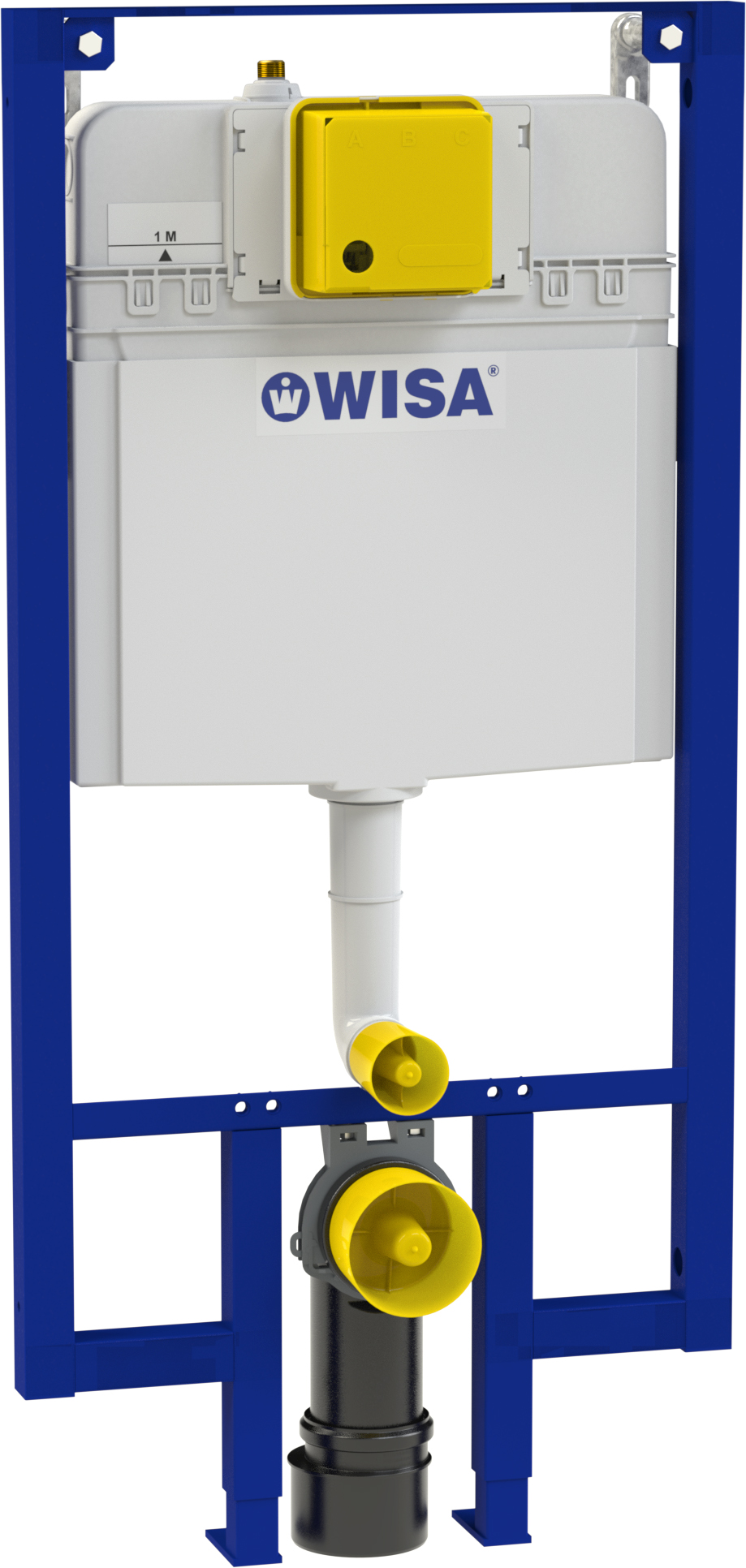

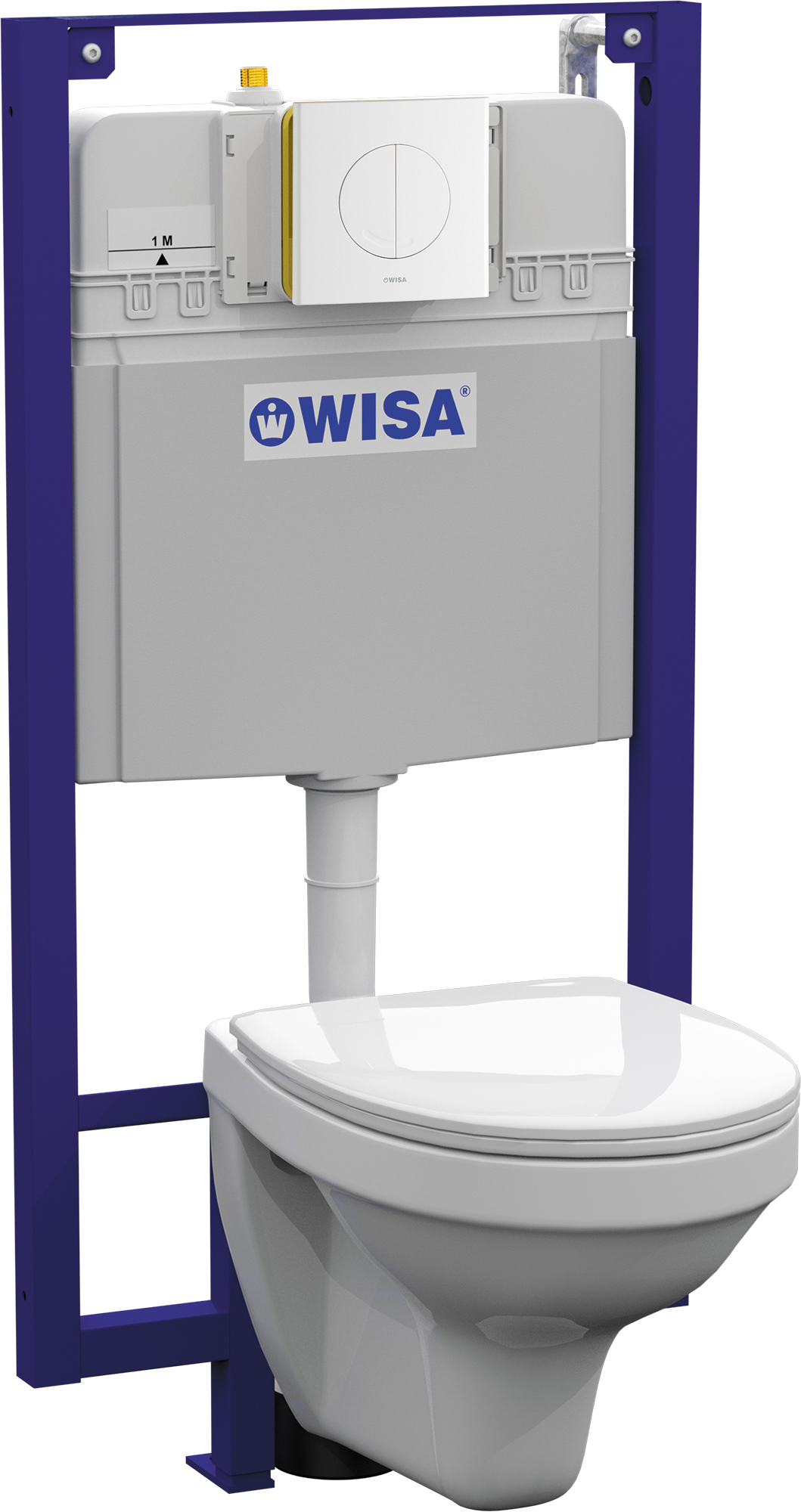

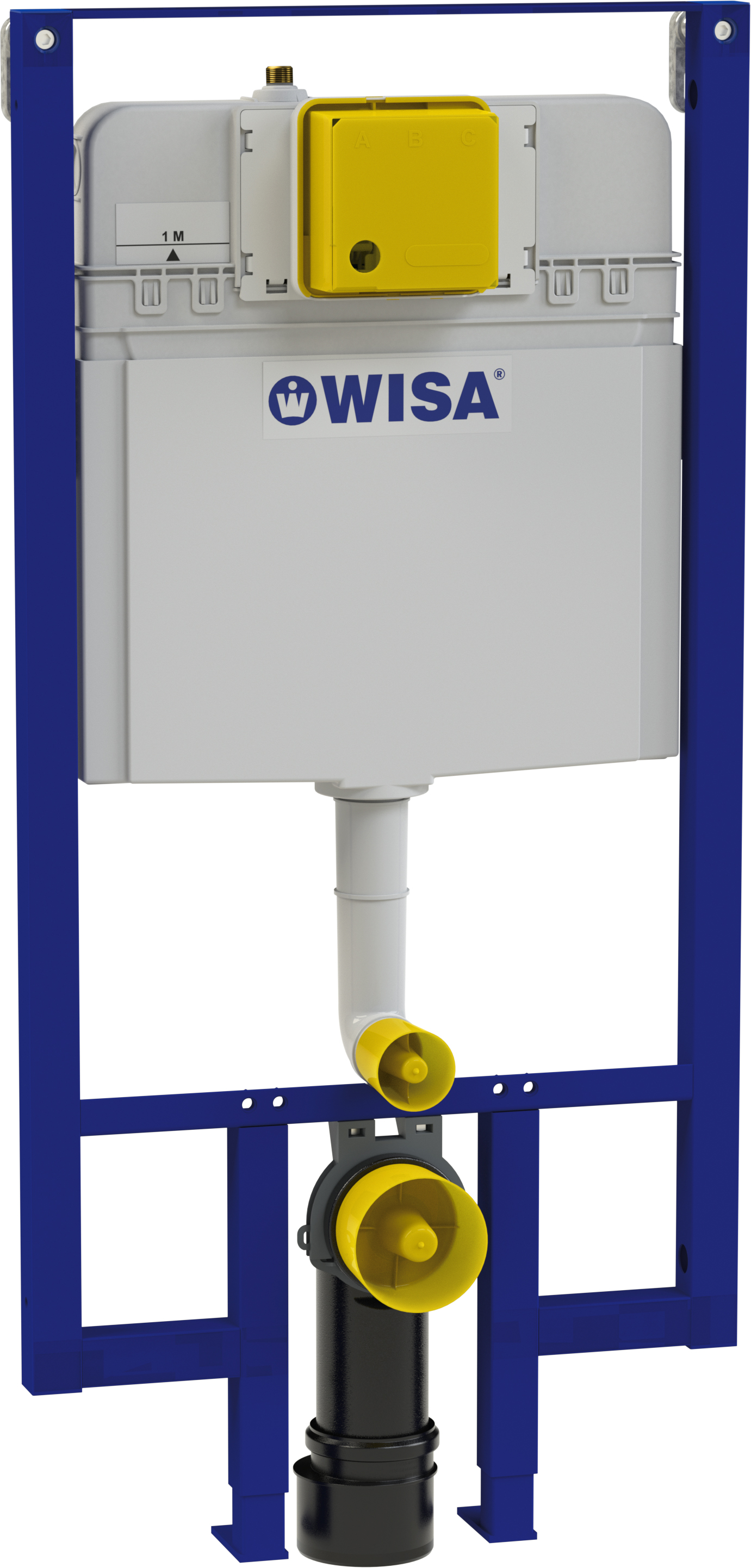

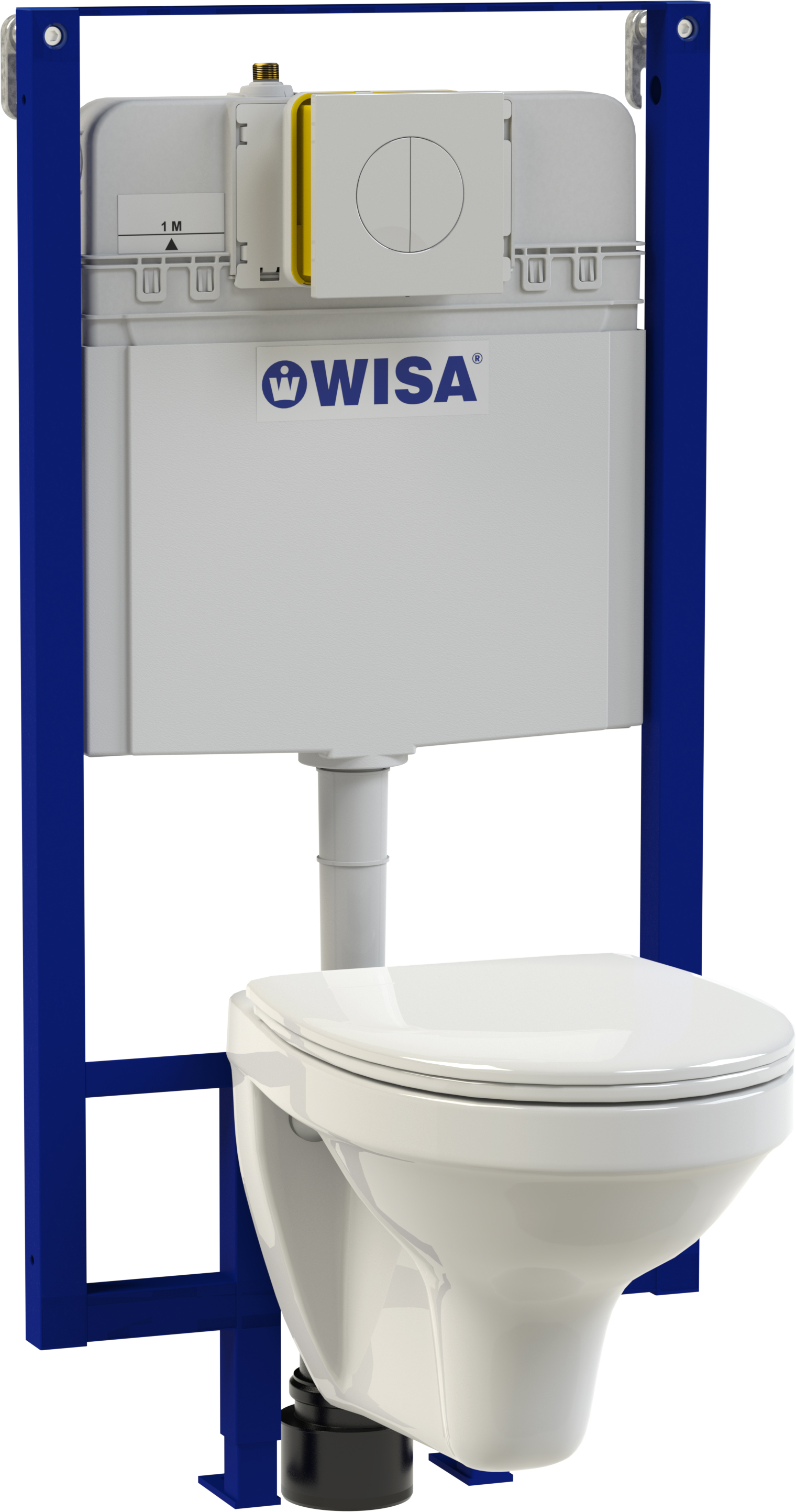

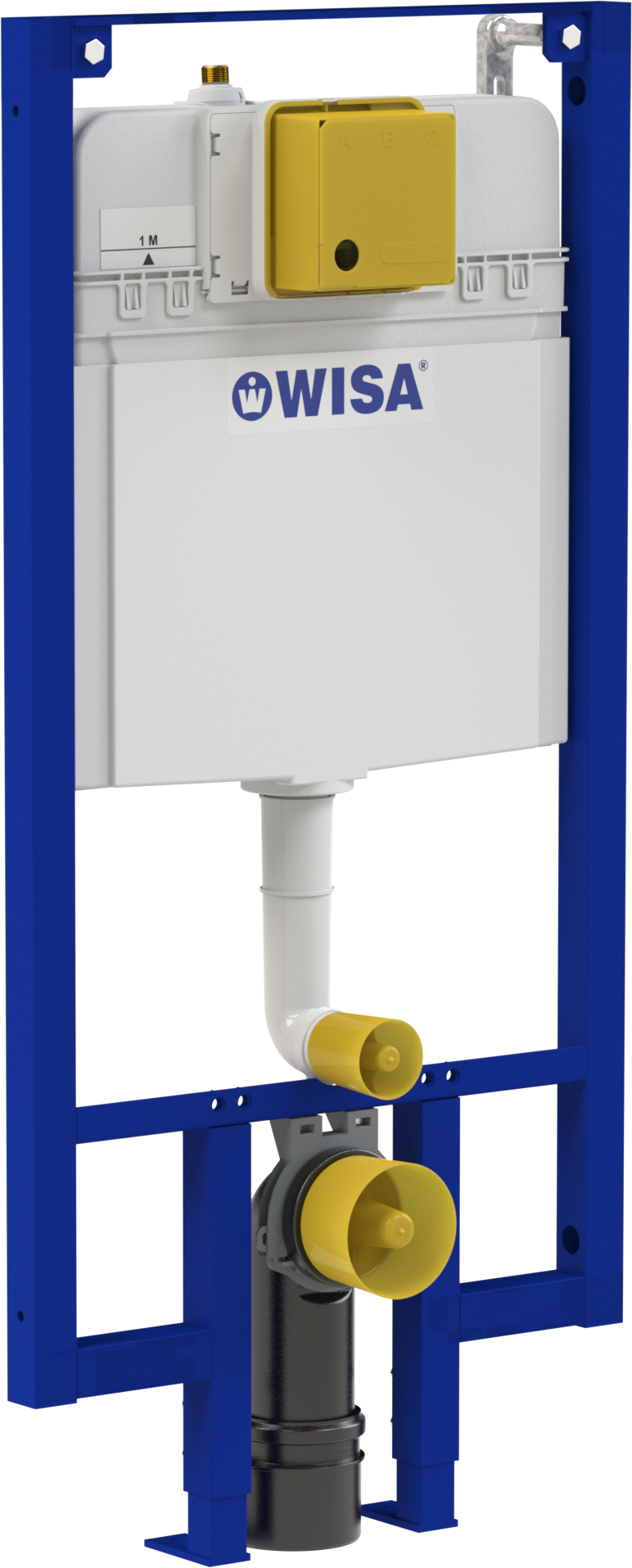

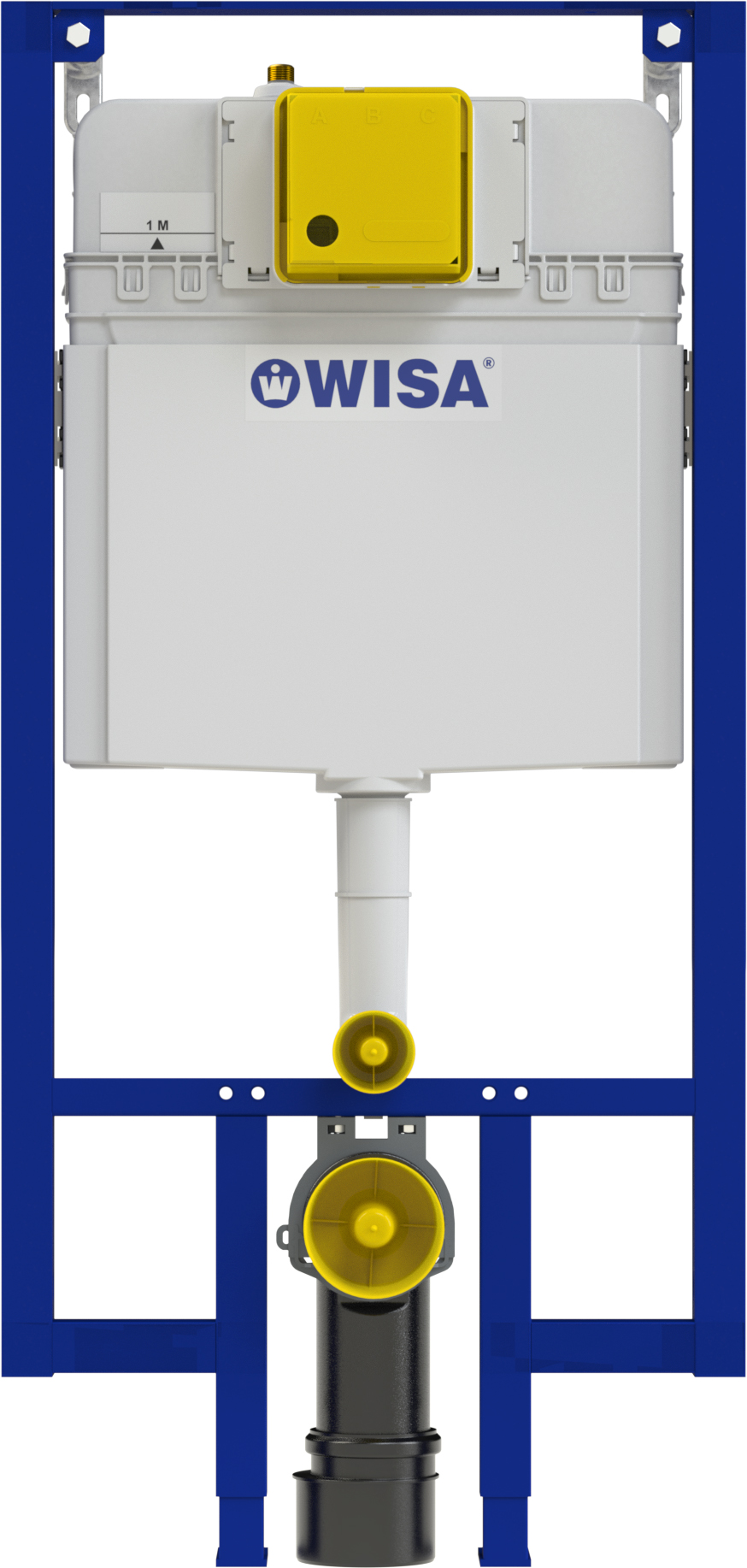

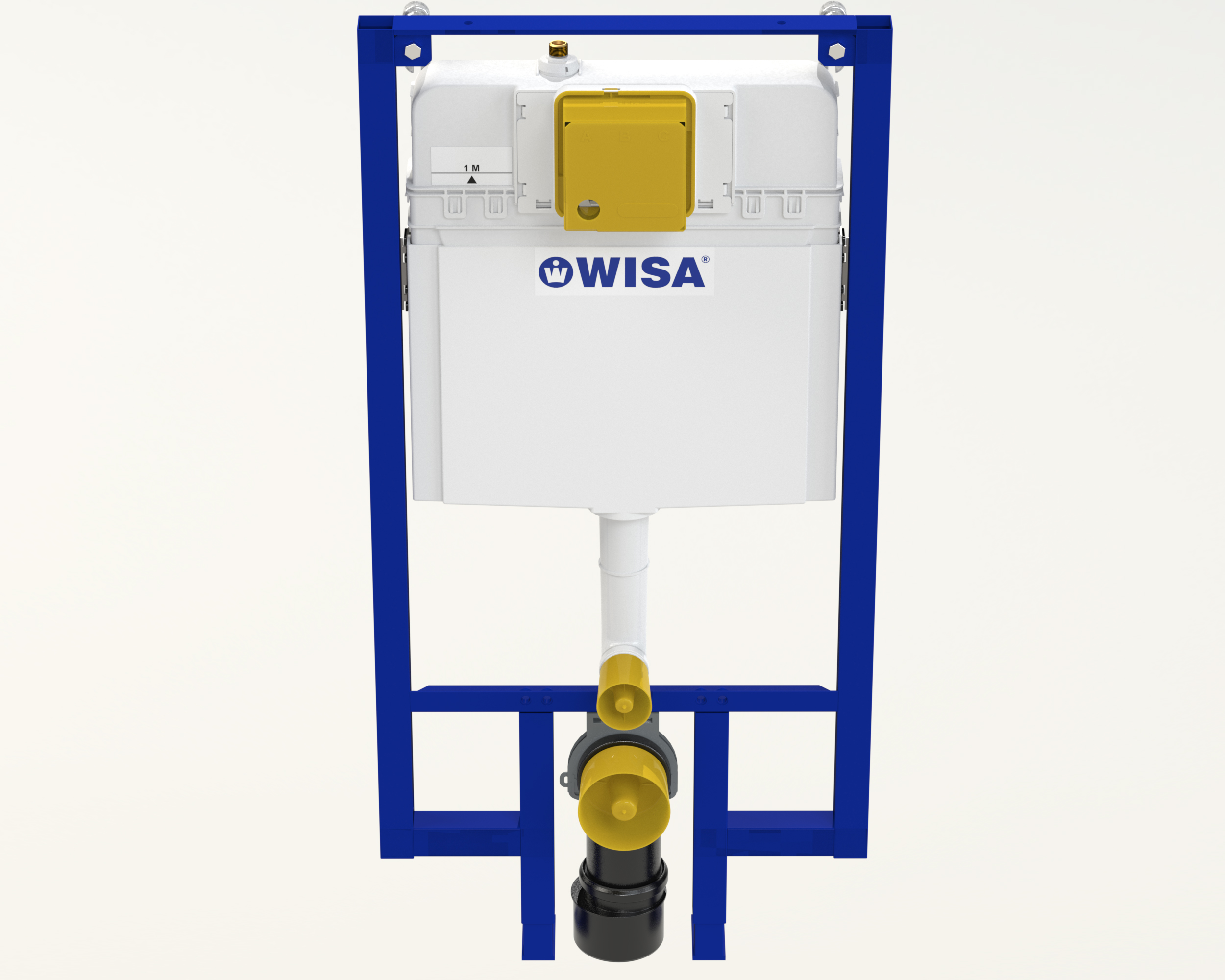

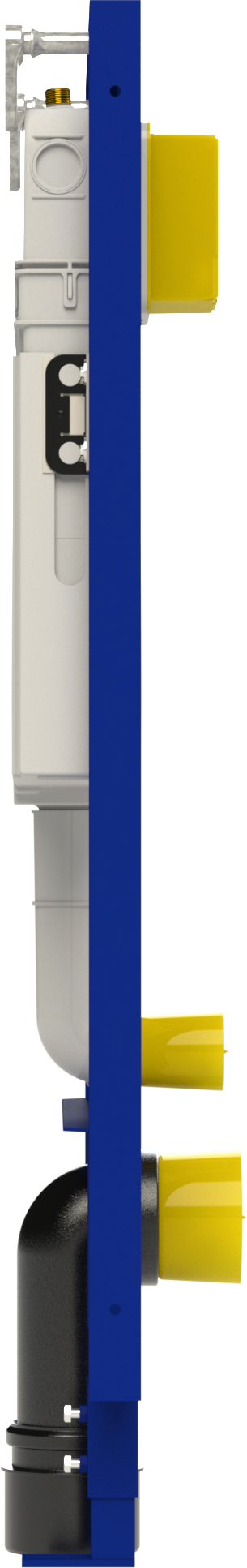

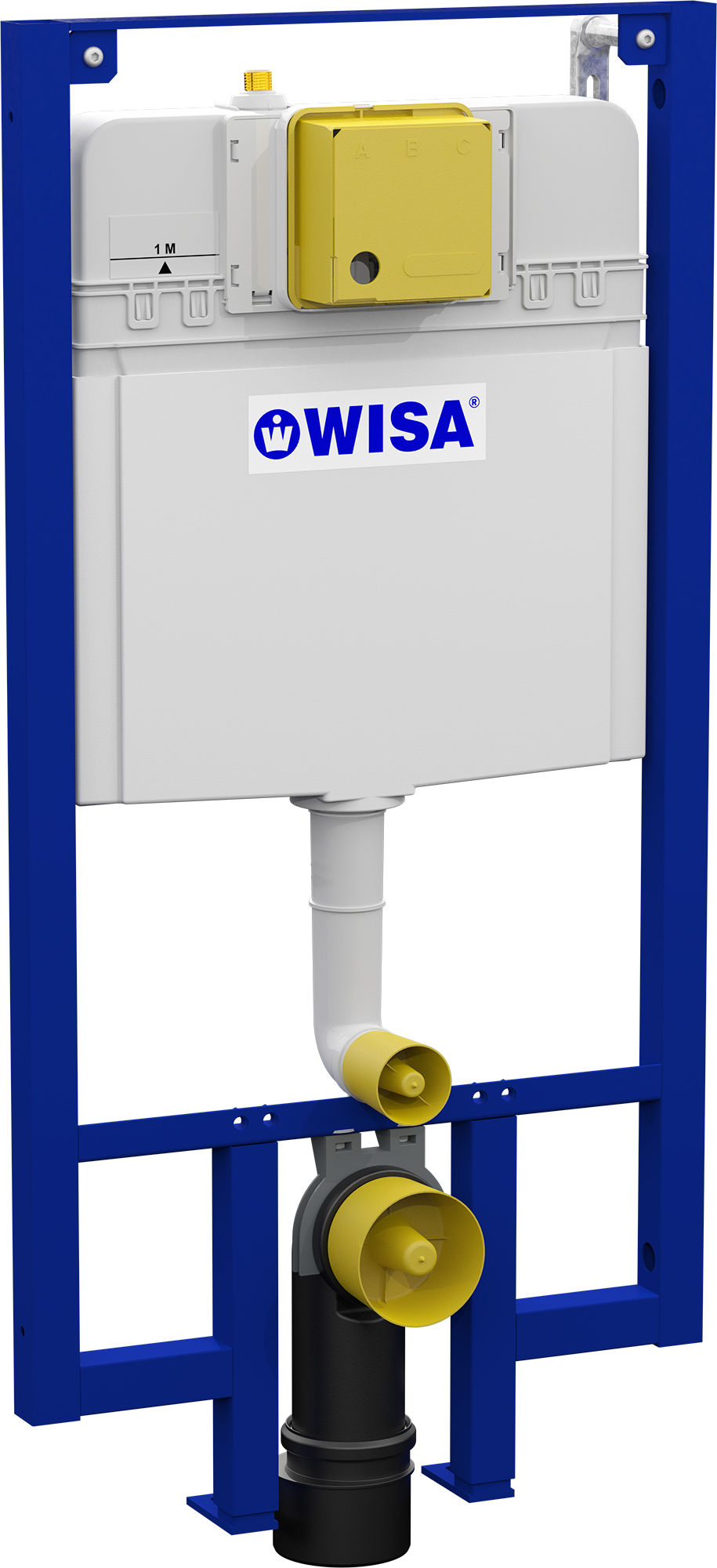

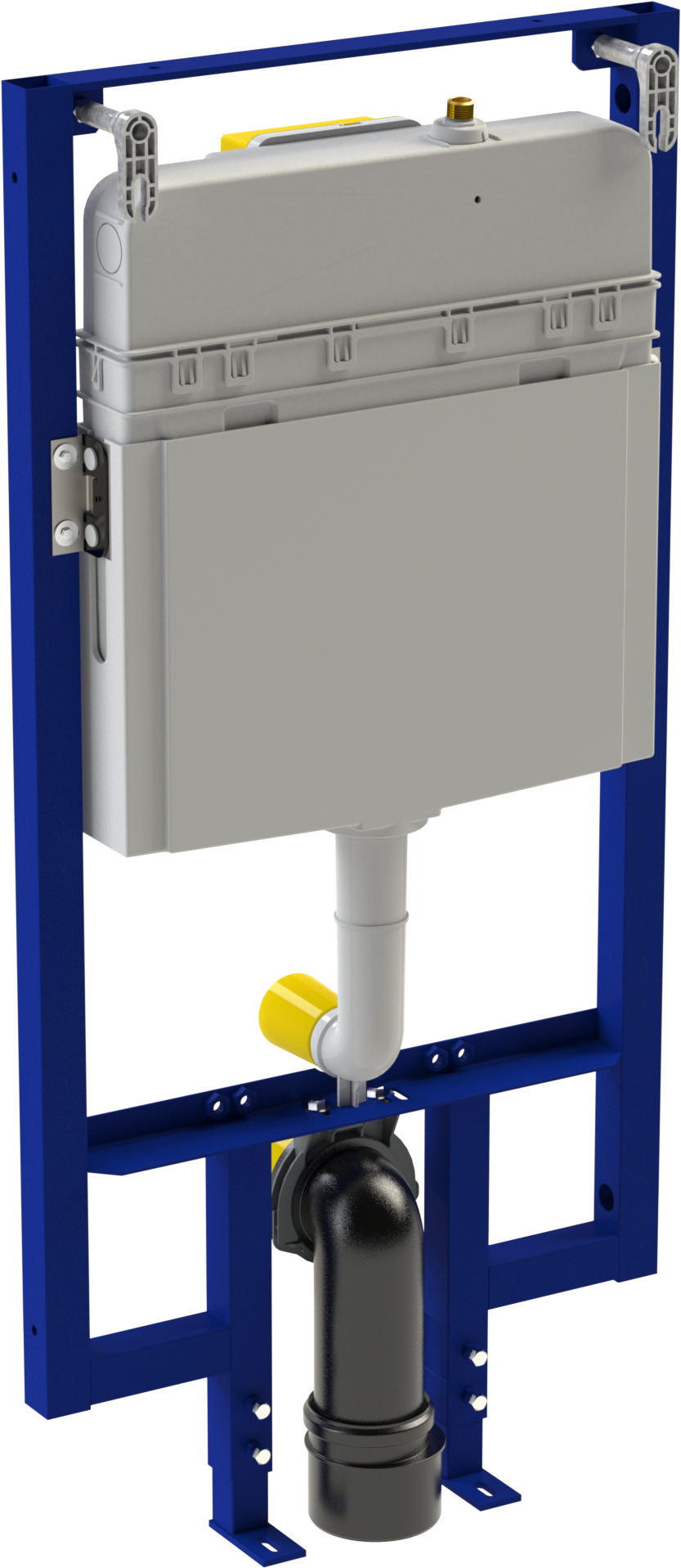

WISA XF WC frame 90/110 mm
Product number:
8050452515
EAN:
8711778210080
- Supporting, blue powder coated WC element, square profi le 40x40 mm
- Dual flush 3/6 L or 6 L flush interruption depending on control panel
- Pre-assembled wall brackets and adjustable feet (0-200 mm)
- Flush volume adjustable between (2-3 l / 4-7 l)
- Insulated against condensation
- Quiet Hydraulic Fill valve (Noise class 1 ISO 3822)
- Depth adjustable drain elbow (+/-20 mm)
- Pre-installed stop valve top center
- Prepared for the connection with plastic piping system
- Water connection 1/2” left
- Incl. insulation kit for pan to wall
- Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm
- Matching mechanical XS DF control panels suitable for front operation needs to be ordered separately
- CE EN 14055 - CL1-6- NL I - VR I
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Declaration of Performance: | 14055 |
| Depth: | 100 to 129 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | No |
| Frame suitable for wc with offset >60cm: | No |
| Height: | 1180 to 1380 mm |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7 l |
| Min. flushing water quantity: | 2 l |
| Min. shelf height: | 1180 mm |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polyethylene (PE) |
| Reservoir type: | WISA XF Front |
| Self-bearing construction: | Yes |
| Series: | XF |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | No |
| Suitable for flushing flow throttling: | No |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | No |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 580 to 580 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | Yes |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 747EBSCW | Hydraulic fill valve side inlet G 3/8 |
|
| 2-231 | Rubber membrane |
|
| GR0714 | Fill valve 747 diffuser |
|
| GR0691-5002 | Fill valve support hook, right |
|
| GR0700-5002 | Fill valve support hook, left |
|
| GR0663-9010 | Plastic wrench |
|
| GR0232 | Water connection flexible hose |
|
| 1409988419 | Rosette water connection for XF, 399 |
|
| 8050802365 | Ball valve |
|
| GR-S350-0250 | Flush valve |
|
| GR-S391-0250 | Flush valve rubber gasket 59 x 23,4 x 4,2 mm |
|
| BG0005 | Flush valve holder |
|
| BG0033 | Flush valve holder O-ring |
|
| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
|
| GR0891 | Bridge, mechanical |
|
| GR0889 | Lever full flush |
|
| GR0890 | Lever half flush |
|
| GR0053 | O-ring |
|
| GR0003 | Flush pipe with tongue 195 mm |
|
| 667870 | Composition of insulated outlet pipe 300 mm |
|
| 1603988425 | FLUSH PIPE ELBOW RUBBER GASKET for XF/399 |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| GR0888 | Mounting frame masonry aid |
|
| 8050887145 | Inspection opening protection, front |
|
| GR0029 | Discharge elbow PE 90 x 90 mm |
|
| GR0006 | Gasket for discharge elbow |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050887372 | Adapter Ø 90/100 mm |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
