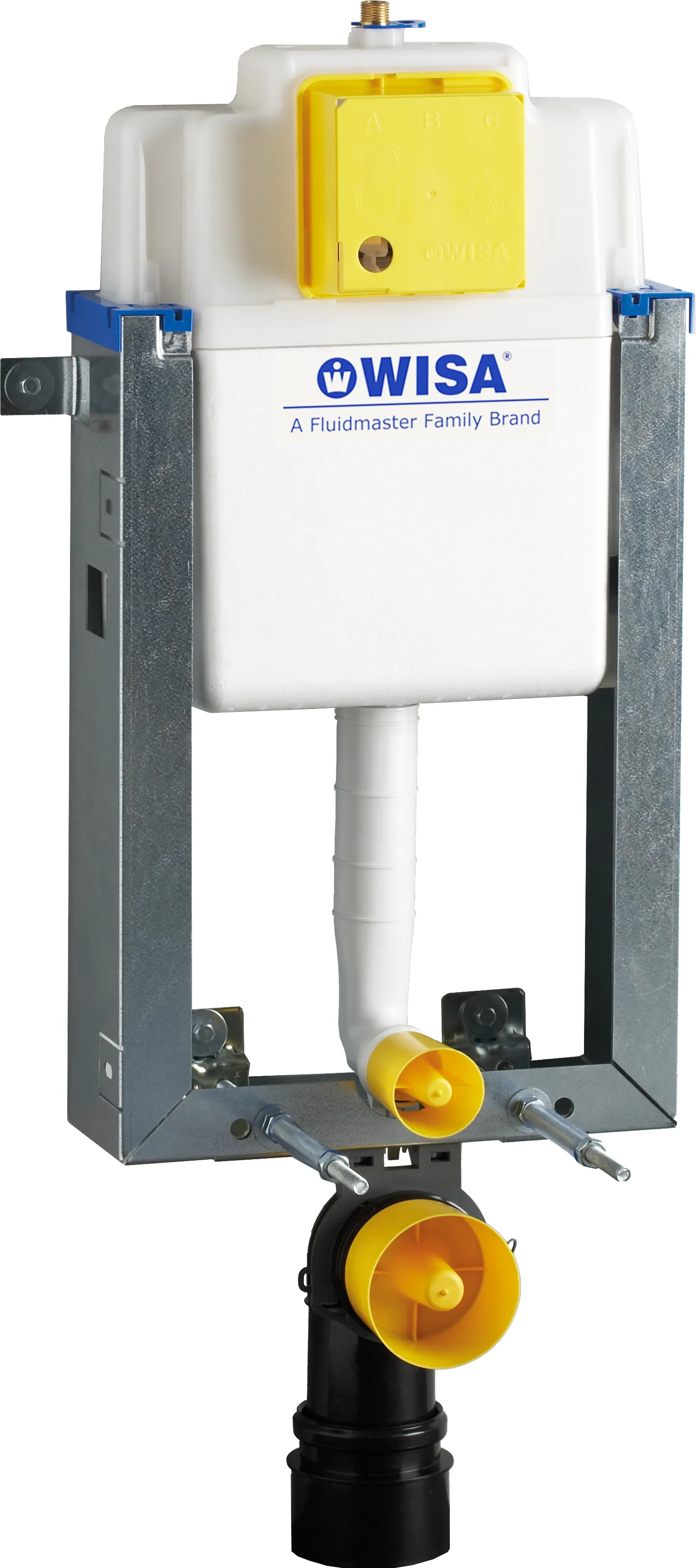

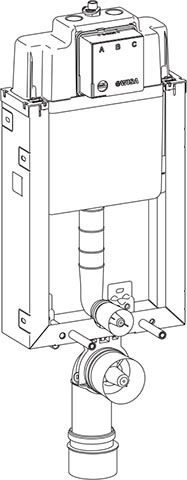

WISA Mont XS WC-Element
Product number:
8050452104
EAN:
8711778121041
- Pre-installed WC cistern
- Galvanized steel frame
- Dual flush 3/6 L or 6 L flush depending on control panel
- Flush volume adjustable between 6 - 7.5 L
- Insulated against condensation
- Quiet hydraulic float valve
- Pre-installed stop valve
- Water connection 1/2”
- Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 x 110 mm
- Incl. insulation kit for pan to wall
- CE EN 14055 - CL1- 6 - NL I - VR I
| Adjustable depth: | No |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | No |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Depth: | 140 to 140 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | No |
| Frame suitable for wc with offset >60cm: | No |
| Height: | 785 to 785 mm |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polyethylene (PE) |
| Reservoir type: | WISA XS |
| Self-bearing construction: | No |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | No |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | Yes |
| Suitable for toilets with a reduced contact area: | No |
| Surface protection: | Sendzimir galvanized |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 400 to 400 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | Yes |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432783 | Universal hydraulic float valve 3/8 |
|
| 8050801525 | Flush valve |
|
| 8050801522 | Flush valve (DFF) |
|
| 8050801527 | FLUSH VALVE, CISTERN 4/2 L |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
|
| 8050887175 | Tightening nut |
|
| 8050887113 | Cistern lid, cisterns XS, 380, 3800 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390034 | Clamp with control hooks, cisterns 3800/380, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390051 | SF clamp with control hocks |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050897009 | Electronische hefboom DF voor WISA XS/XT |
|
| 8050390108 | Set of fixation pins and control pins for XS, 380, 3800 FI plates |
|
| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887145 | Inspection opening protection, front |
|
| 8050887355 | Flush pipe with tongue |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050887372 | Adapter Ø 90/100 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
| 8050802329 | Flexible hose |
|
| 8050802325 | Flexible hose with G3/8 F - G1/2 Eurocone + ball valve |
|
| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
|
| 8050885470 | Flow reducer WISA XS/XT |
|
| 8035882386 | Flow reducer WISA XS/XT for Rimless toilets |
|
