WISA 500 white
Product number:
8050422670
EAN:
8711778014565
- Low hanging cistern
- 6 litre flush interruption, can be increased to 9 litres
- Insulated against condensation
- Quiet hydraulic float valve
- Compliant with British water regulations
- 3/8” water connection left, right or center back (in case of center back connection flush interruption is not possible, use art. 8050899148)
- CE EN 14055 - CL1-6- NL I - VR I
| Adjustable flushing water quantity: | Yes |
|---|---|
| Colour: | White |
| Depth: | 106 mm |
| Filling valve noise class: | Group I, <=20 dB(A) |
| Filling valve sound class according to DIN-52 218: | Group I, <=20 dB(A) |
| Flushing: | Interruptible |
| Flushing water quantity: | 6 to 9 l |
| Height: | 355 mm |
| KIWA certified: | Yes |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Max. flushing water quantity: | 9 l |
| Min. flushing water quantity: | 6 l |
| Operation: | Push button |
| Outer pipe diameter reservoir side flushing bend: | 50 mm |
| Outer pipe diameter tap water: | 10 mm |
| Reservoir position: | Low |
| Reservoir type: | WISA 500/550 |
| Series: | 500 |
| Size of tap water connection: | 3/8 inch |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Suitable for close coupled toilet: | No |
| Suitable for electrical operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Water connection, bottom: | No |
| Water connection, left: | Yes |
| Water connection, rear: | No |
| Water connection, right: | Yes |
| Water connection, top: | No |
| Width: | 512 mm |
| With anti-condensation insulation: | Yes |
| With flushing bend: | Yes |
| With stop valve: | No |
| Product number: | Description | Image |
|---|---|---|
| 8050110114 | Flush pipe elbow, 230 x 210 mm, pergamon |
|
| 8050899148 | WHITE BUTTON (WITHOUT START & STOP) - CURRENT MODEL |
|
| 8050886379 | Closing cap, manhattan |
|
| 8050882430 | Flush pipe rosette, white |
|
| 8050882450 | Flushing cistern outlet seal |
|
| 8050390001 | Druktoets 8050885500 set à 5 stuks, wit |
|
| 8050110101 | Flush pipe elbow, 230 x 210 mm, white |
|
| 8050411801 | FUNCTION BUTTON - NEW MODEL, white |
|
| 8050886397 | Closing cap, pergamon |
|
| 1405987117 | Copper connection pipe |
|
| 8050882482 | Closing cap, beige |
|
| 8050886237 | Closing cap, pergamon |
|
| 8050899152 | Push button pergamon with flush interruption WISA 500 (new model) |
|

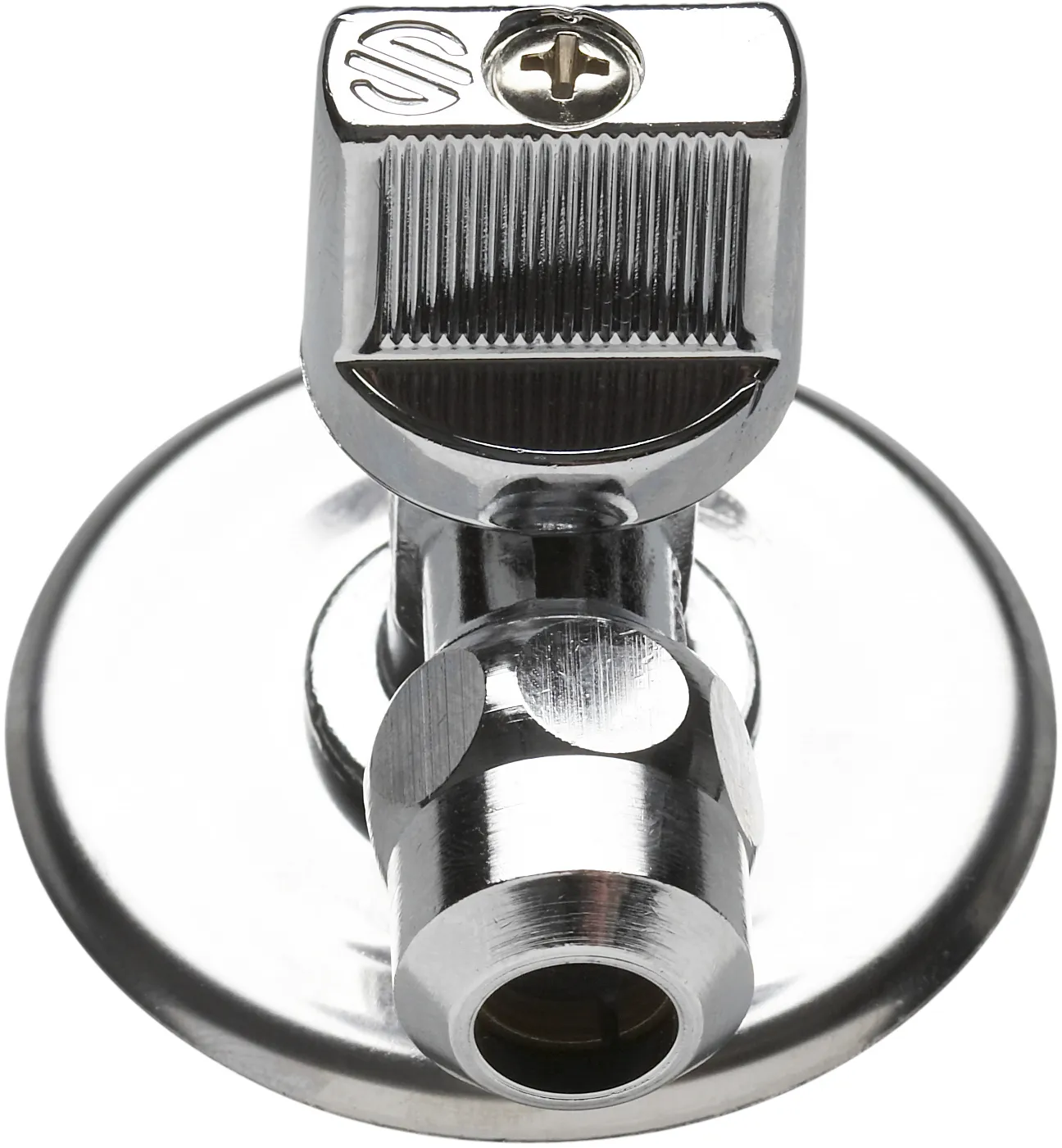

| 1403987112 | Angle valve G 1/2 |
|
| 8050411201 | Cistern cover with function button, with flush interruption, white |
|
| 8050885500 | Function button, without start/stop function, white (old model) |
|
| 8050985530 | WC Flush pipe connector seal No. 101 |
|
| 1411988436 | Flush valve rubber seal Ø 65 x 23,5 WISA 500/750 (old version till 07/1987) |
|
| 8050882480 | Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white |
|
| 8050390093 | WC flush pipe connector seals (5 pcs) |
|
| 8050800198 | Bridge, cisterns Fortuna, AP220, SLIM, W500 |
|
| 8050411203 | Cistern cover with a function button, with flush interruption, beige |
|
| 8050882490 | Spacer, white, cisterns W500, AP220, SLIM, Fortuna |
|
| 8050800504 | Flush valve with rubber gasket, cisterns Fortuna, W 500/750/790, AP 200 |
|
| 8050428000 | Push button white with flush interruption WISA 500/750 |
|
| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
|
| 8050800078 | Holder (screw and insert) with flush pipe gasket |
|
| 8050882432 | Nut for flush pipe, beige |
|
| 8050390002 | Bag of nuts for flush pipe white (5 pc.) |
|
| 8050882224 | Nut for flush pipe, manhattan |
|
| 8050411901 | Function button with flush interruption, white (old model) |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050882382 | Rosette, white |
|
| 8050390025 | Bag of gaskets for flush pipe (5 pc.) |
|
| 8035432783 | Universal hydraulic float valve 3/8 |
|
| 8050390067 | Bag of decoration caps, white (5 pc.) |
|
| 8050882227 | Nut for flush pipe, pergamon |
|
| 8050886394 | Closing cap, beige |
|
| 8050886249 | Closing cap, manhattan |
|
| 8050411214 | Cistern cover with a function button, with flush interruption, pergamon |
|
| 8050428019 | Function button WISA 500/750 manhattan |
|
