Pre-wall elements for dry construction (WC frames)
19 Products found

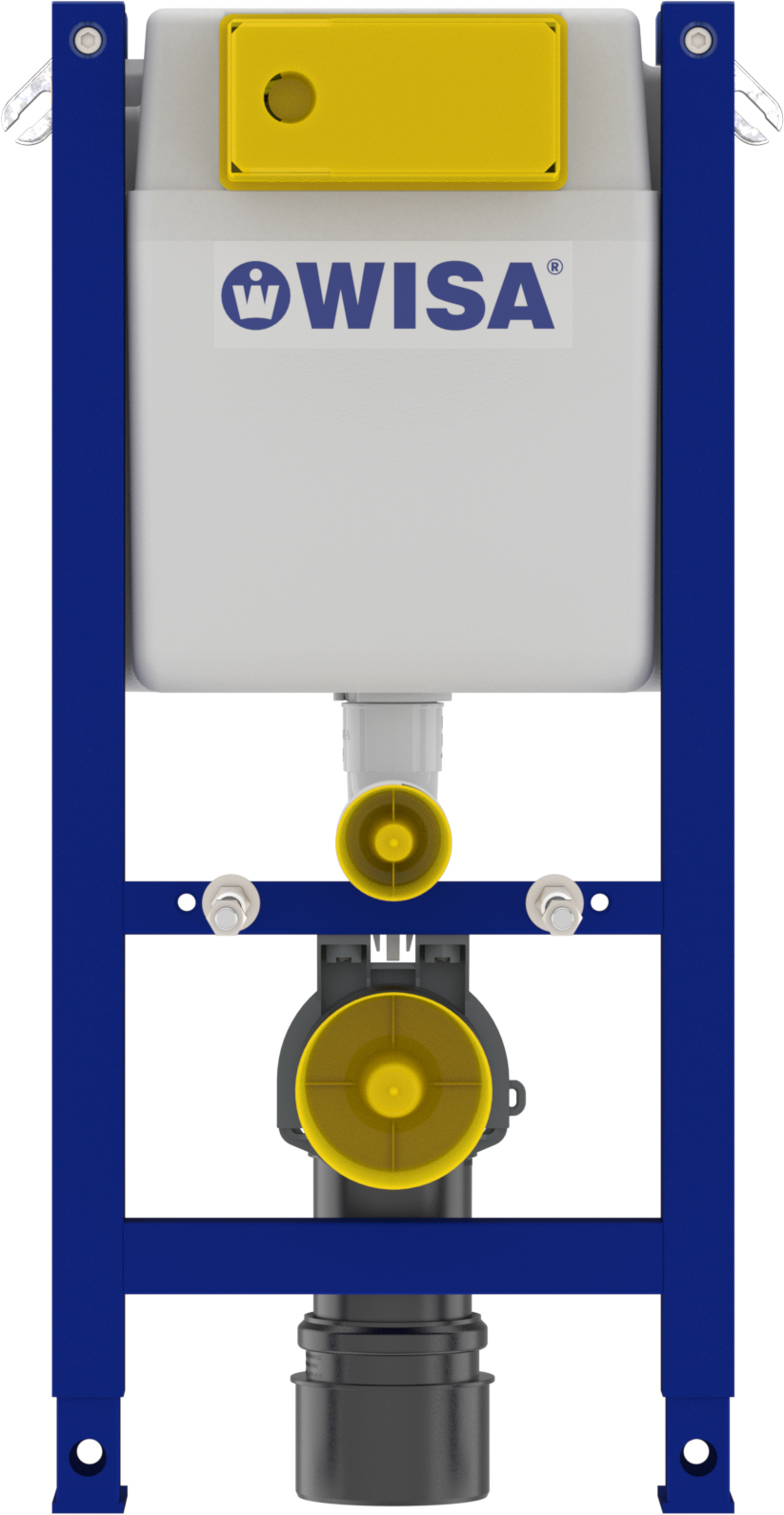

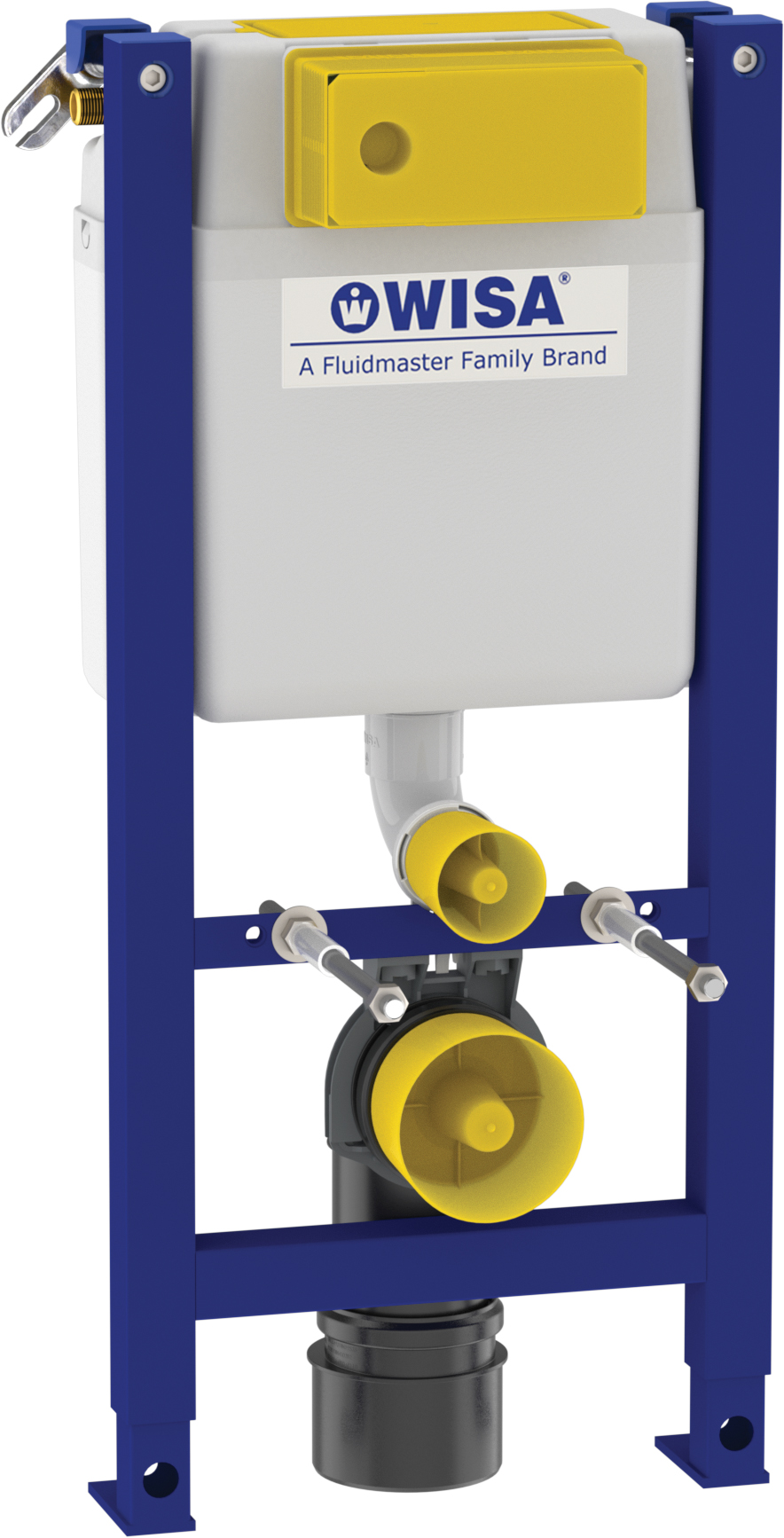

WISA XT WC top/front 83 cm
Pre-installed WC cistern with support frame Strong, powder coated frames made from 4x4 cm closed profile steel Good corrosion resistance Very small built-in frame ( Wide: 38 cm, Height: 83 cm, Depth: 14 cm) Frame adjustable up to 20 cm in height Strong flushing Dual flush 3/6 L Flush volume adjustable between 6 and 7.5 L HDPE fully insulated tank, prevents condensation Very quiet hydraulic fill valve (Acoustic class A) Pre-installed cistern, wall and waste pipe connections, valve and water connections Brass shank G1/2” Pre-assembled wall fixation kit Including WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm 90x90 mm elbow with adaptor Adaptor can also be used as a straight connector 90x110 mm Including insulation kit for pan to wall Bowl fixation for 180 and 230 mm Sleeves for protection of the rods Including cardboard drilling template and comprehensive instruction for all countries/languages Suitable for pneumatic and mechanical control panels Top or front control possible Modern, compact and slim design control panels available in different colours and materials CE EN 14055 - CL1-6- NL I - VR I Because of the pre-installed parts it’s easy and fast to install.Very easy to exchange the products inside the cistern. Easy changing from 6/3 to 4/2 liter flush by interchanging the flush valve. Easy changing from 6 to 7,5 liters without removing the valve.
WISA XS WC T 90/100 MM RE-ENFORCED FEET
Pre-installed WC cistern with support frame with re-enforced feetBlue powder coated frameAdjustable feet (20 cm)Dual flush 3/6 L or 6 L flush interruption depending on control panelFlush volume adjustable between 6 and 7.5 LInsulated against condensationQuiet hydraulic float valvePre-installed stop valveWater connection 1/2”Pre-assembled wall fixation kitIncluding WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 100 mmIncluding insulation kit for pan to wallExcluding WISA XS control panelCistern NF approvedCE EN 14055 - CL1- 6 - NL I - VR

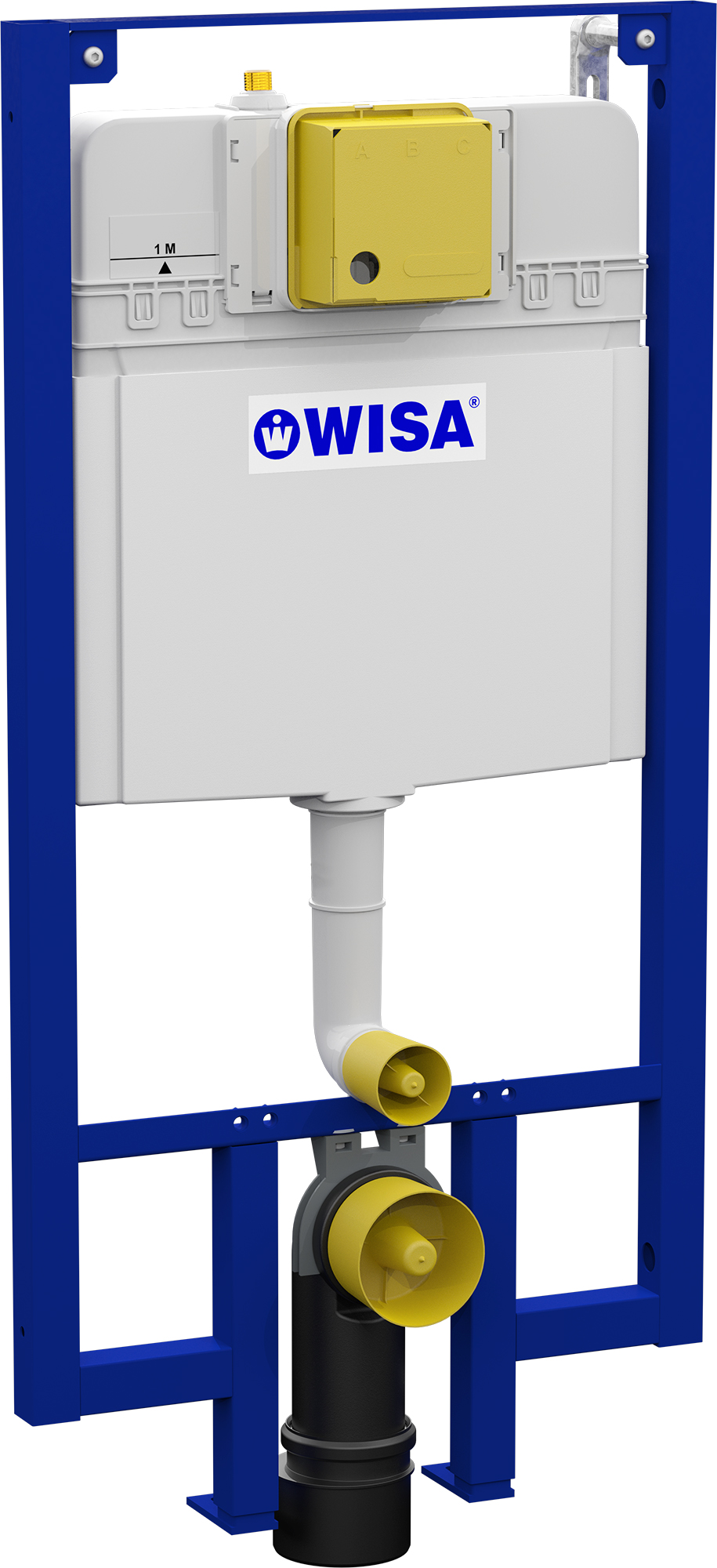

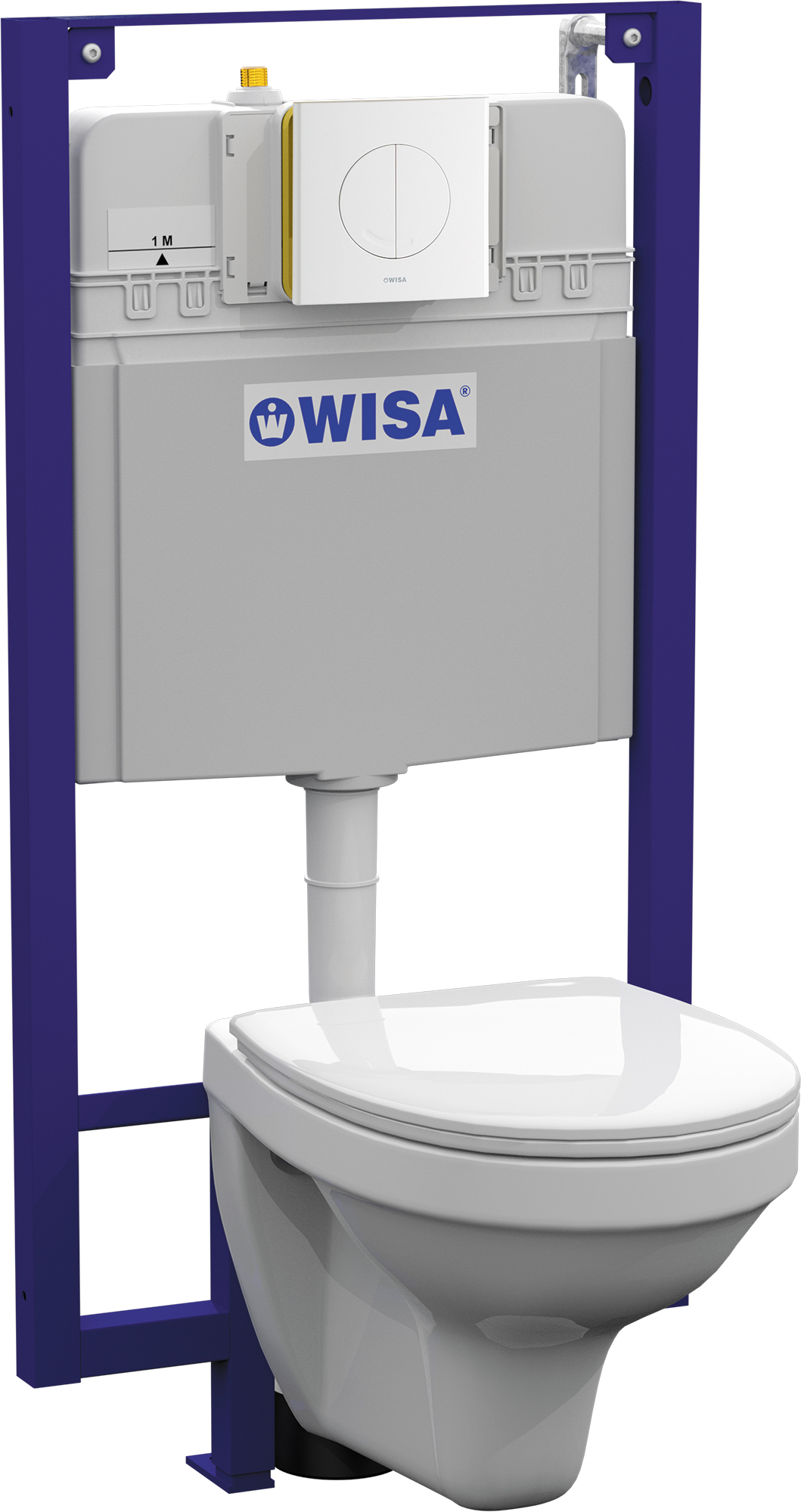

WISA XF WC frame 90/110 mm
Supporting, blue powder coated WC element, square profi le 40x40 mm Dual flush 3/6 L or 6 L flush interruption depending on control panel Pre-assembled wall brackets and adjustable feet (0-200 mm) Flush volume adjustable between (2-3 l / 4-7 l) Insulated against condensation Quiet Hydraulic Fill valve (Noise class 1 ISO 3822) Depth adjustable drain elbow (+/-20 mm) Pre-installed stop valve top center Prepared for the connection with plastic piping system Water connection 1/2” left Incl. insulation kit for pan to wall Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm Matching mechanical XS DF control panels suitable for front operation needs to be ordered separately CE EN 14055 - CL1-6- NL I - VR I

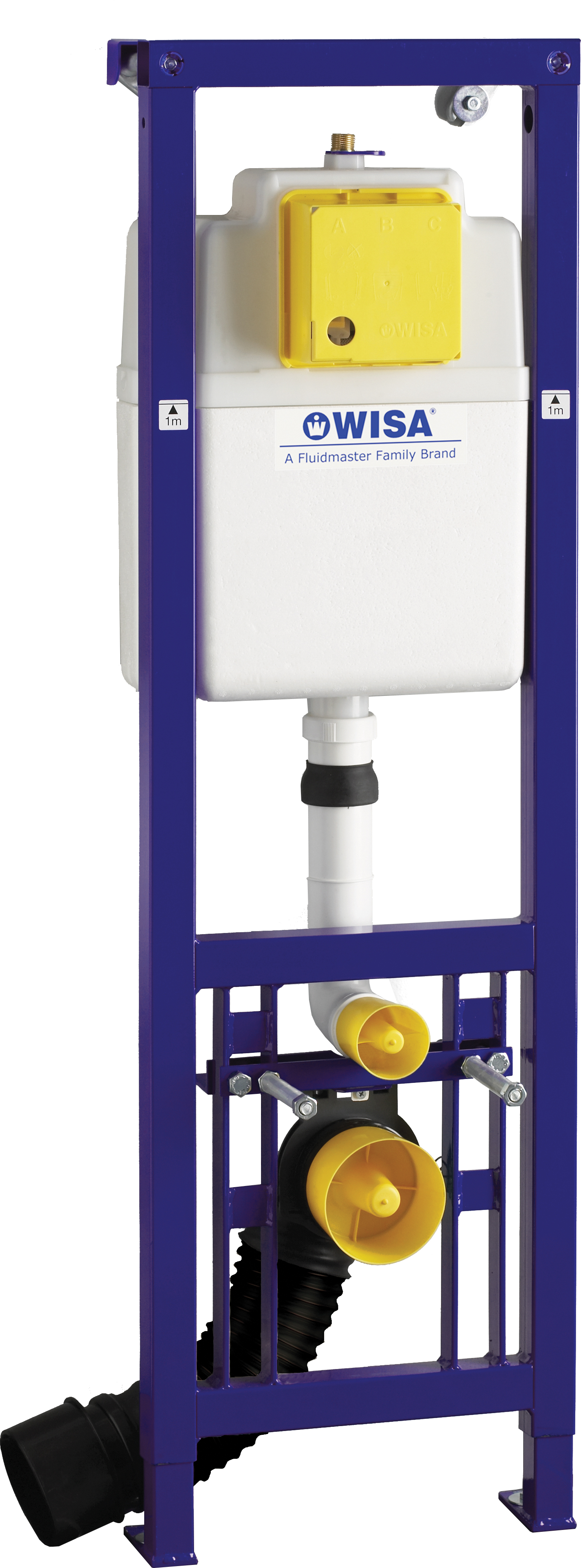

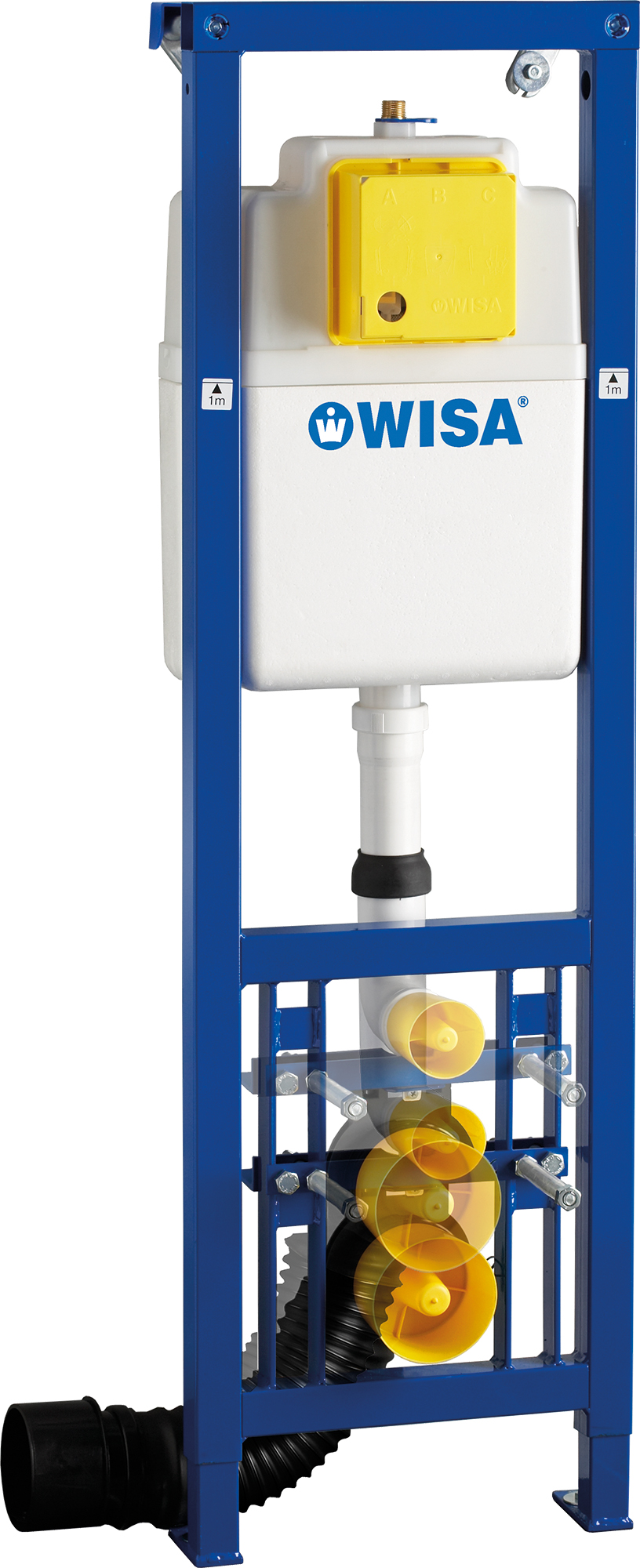

WISA XS WC Vario 130 cm
Allows height adjustment (+10 cm) of the bowl after finishing the wall Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (14 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Includes WC connection kit, fixation materials, masonry aid Includes flexible discharge elbow 90 mm with reducer to 110 mm Includes Vario cover plate (PE) CE EN 14055 - CL1- 6 - NL I - VR I

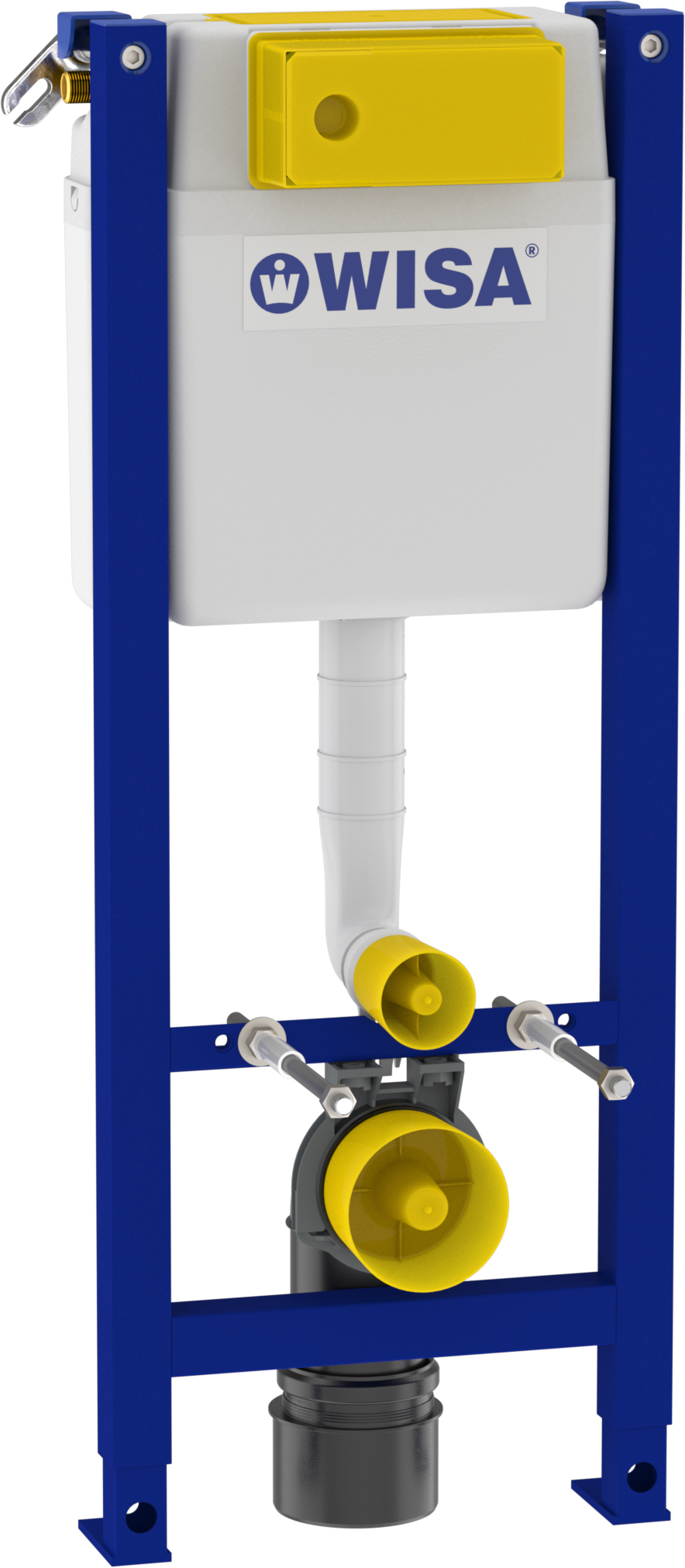

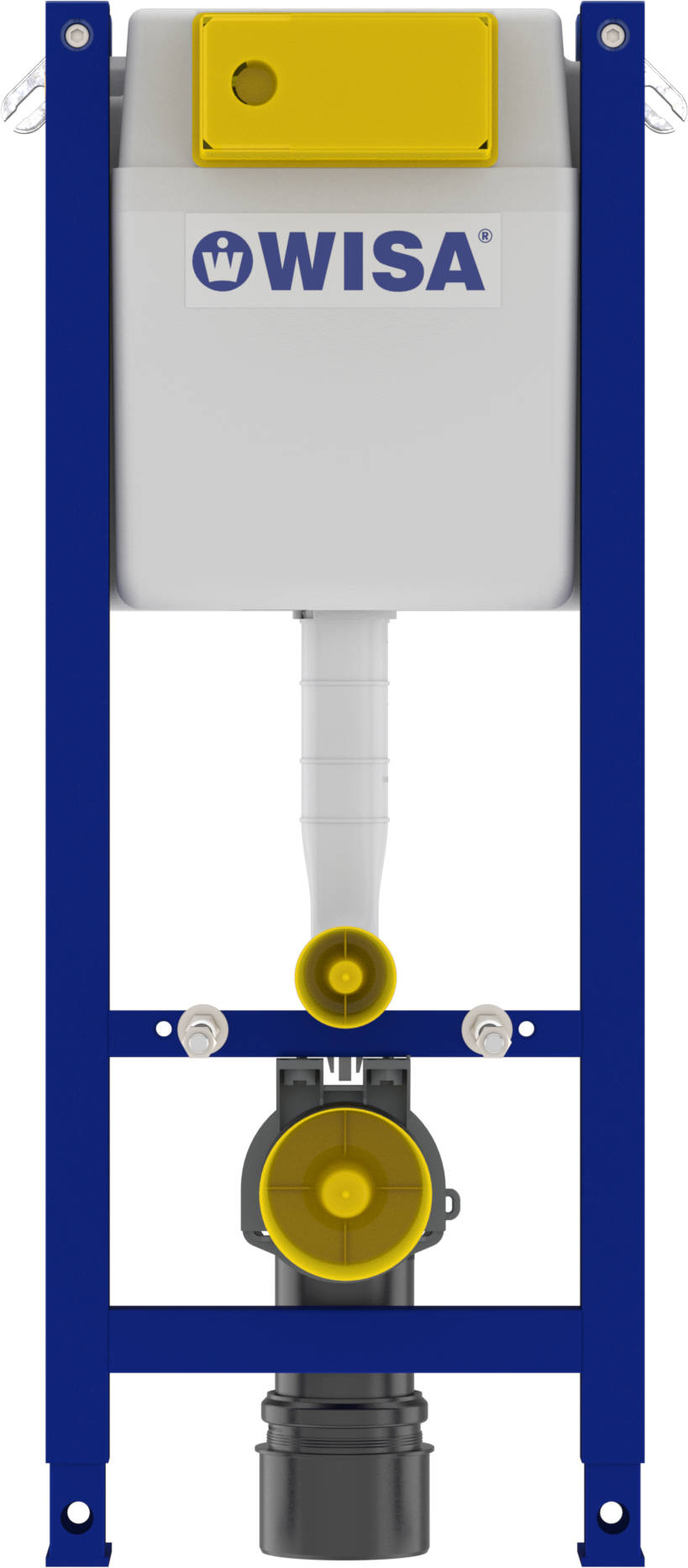

WISA XT WC top/front 98 cm
Pre-installed WC cistern with support frame Strong, powder coated frames made from 4x4 cm closed profile steel Good corrosion resistance Very small built-in frame ( Wide: 38 cm, Height: 98 cm, Depth: 14 cm) Frame adjustable up to 20 cm in height Strong flushing Dual flush 3/6 L Flush volume adjustable between 6 and 7.5 L HDPE fully insulated tank, prevents condensation Very quiet hydraulic fill valve (Acoustic class A) Pre-installed cistern, wall and waste pipe connections, valve and water connections Brass shank G1/2” Pre-assembled wall fixation kit Including WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm 90x90 mm elbow with adaptor Adaptor can also be used as a straight connector 90x110 mm Including insulation kit for pan to wall Bowl fixation for 180 and 230 mm Sleeves for protection of the rods Including cardboard drilling template and comprehensive instruction for all countries/languages Suitable for pneumatic and mechanical control panels Top or front control possible Modern, compact and slim design control panels available in different colours and materials CE EN 14055 - CL1-6- NL I - VR I Because of the pre-installed parts it’s easy and fast to install.Very easy to exchange the products inside the cistern. Easy changing from 6/3 to 4/2 liter flush by interchanging the flush valve. Easy changing from 6 to 7,5 liters without removing the valve.
WISA XS WC frame 112 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1-6- NL I - VR I
WISA x IPEE XS WC frame 118 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Extensible up to 130 cm Dual flush 3/6 L or 6 L single flush Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Pre-assembled transit for Ipee electronics Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm Incl. insulation kit for pan to wall Optional: WISA X IPEE toilet packs

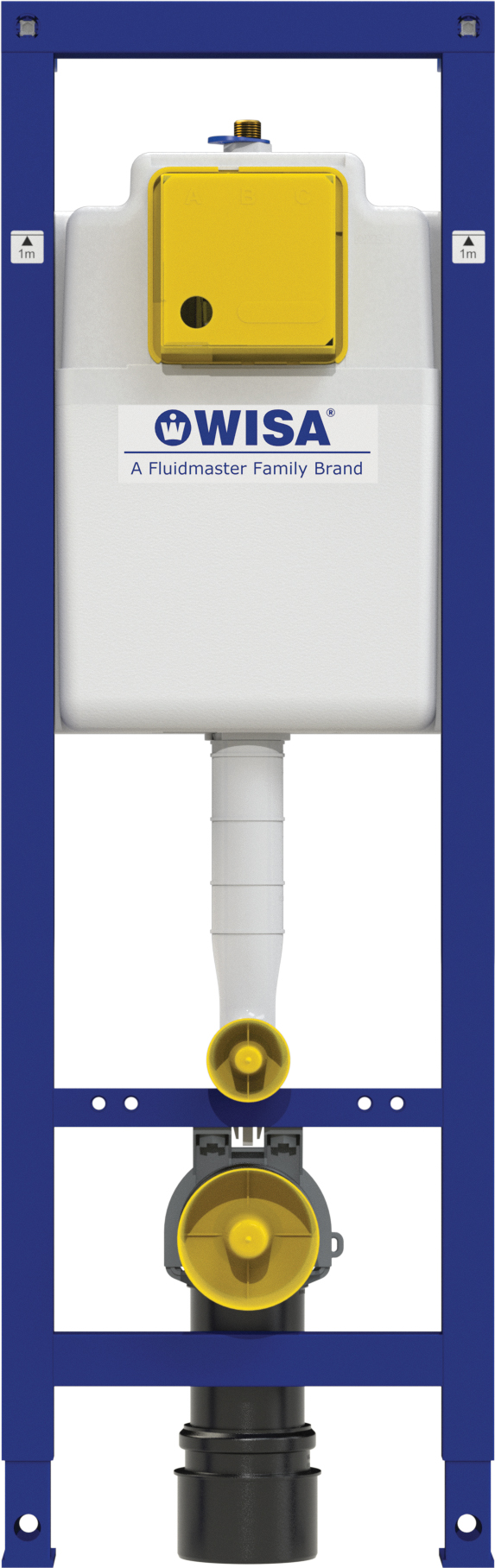

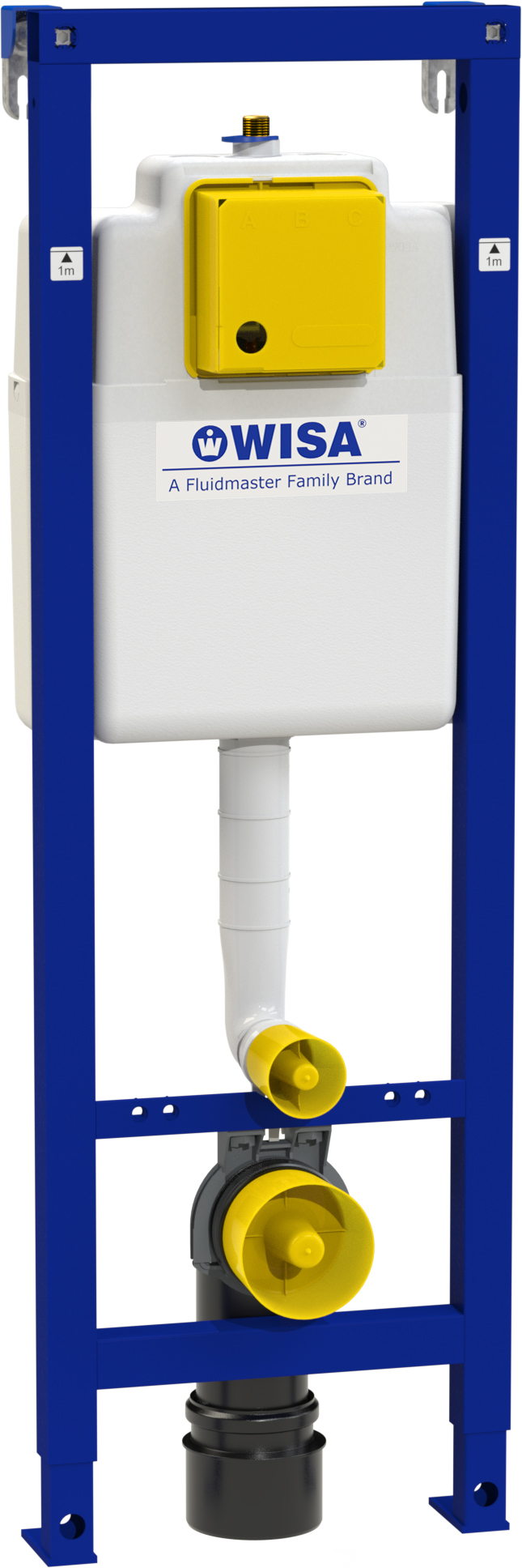

WISA XS WC frame 118 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1-6- NL I - VR I

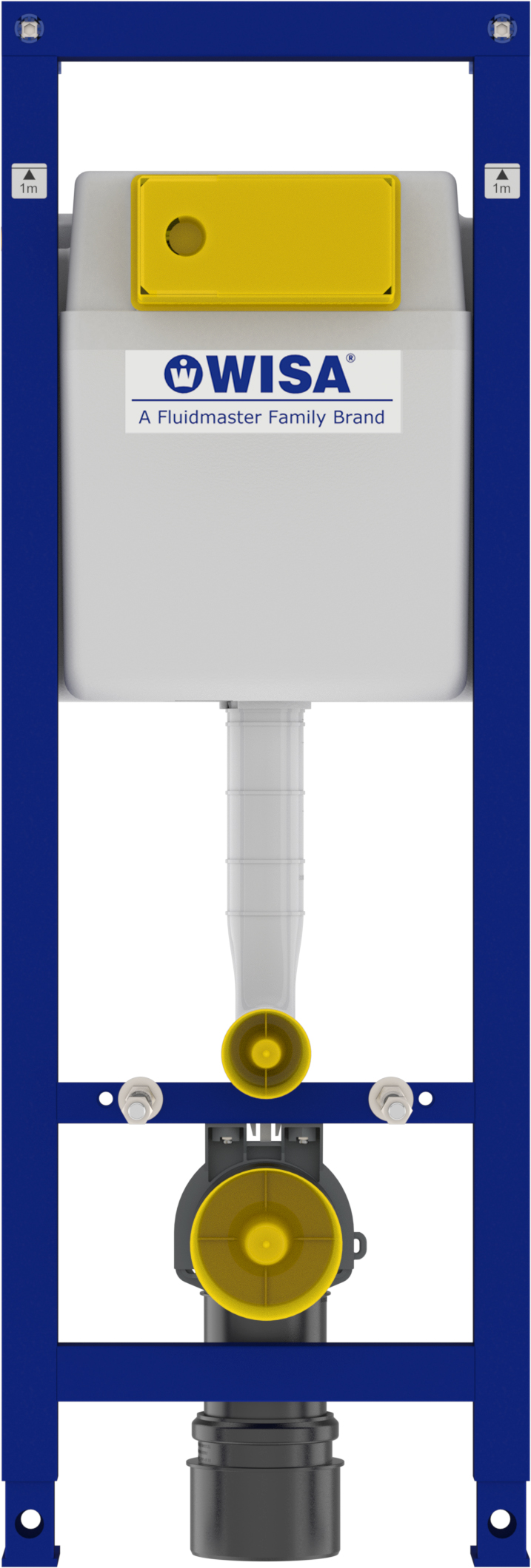

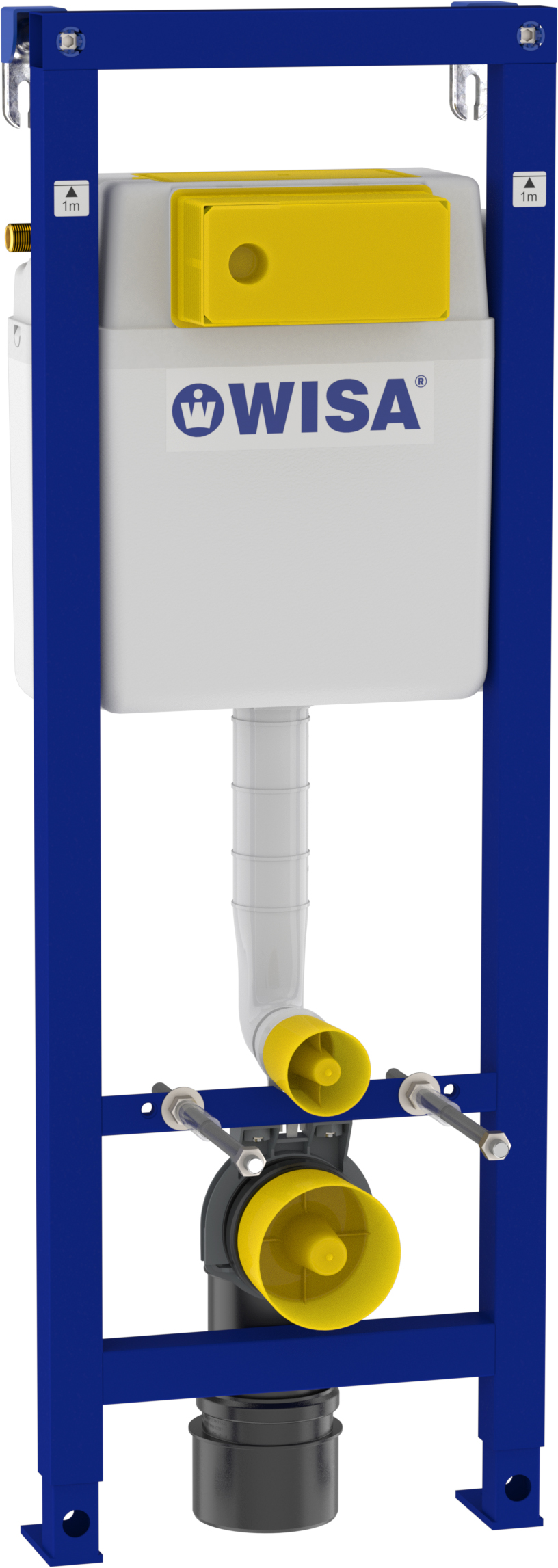

WISA XT WC frame 112 cm
Pre-installed WC cistern with support frame Strong, powder coated frames made from 4x4 cm closed profile steel Good corrosion resistance Very small built-in frame ( Wide: 38 cm, Height:112 cm, Depth: 14 cm) Frame adjustable up to 20 cm in height Strong flushing Dual flush 3/6 L Flush volume adjustable between 6 and 7.5 L HDPE fully insulated tank, prevents condensation Very quiet hydraulic fill valve (Acoustic class A) Pre-installed cistern, wall and waste pipe connections, valve and water connections Brass shank G1/2” Pre-assembled wall fixation kit Including WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm 90x90 mm elbow with adaptor Adaptor can also be used as a straight connector 90x110 mm Including insulation kit for pan to wall Bowl fixation for 180 and 230 mm Sleeves for protection of the rods Including cardboard drilling template and comprehensive instruction for all countries/languages Suitable for pneumatic and mechanical control panels Top or front control possible Modern, compact and slim design control panels available in different colours and materials CE EN 14055 - CL1-6- NL I - VR I Because of the pre-installed parts it’s easy and fast to install.Very easy to exchange the products inside the cistern. Easy changing from 6/3 to 4/2 liter flush by interchanging the flush valve. Easy changing from 6 to 7,5 liters without removing the valve.

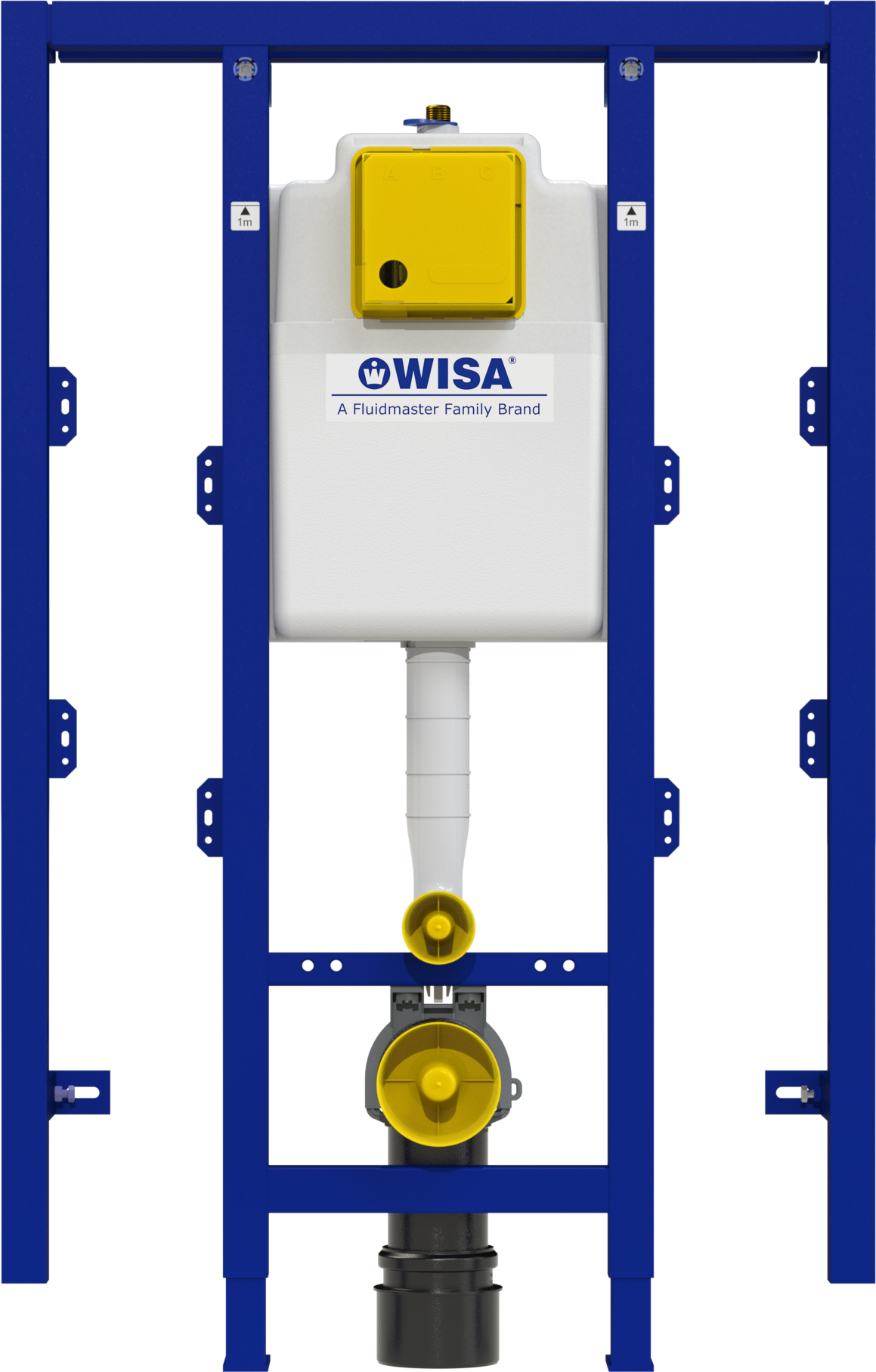

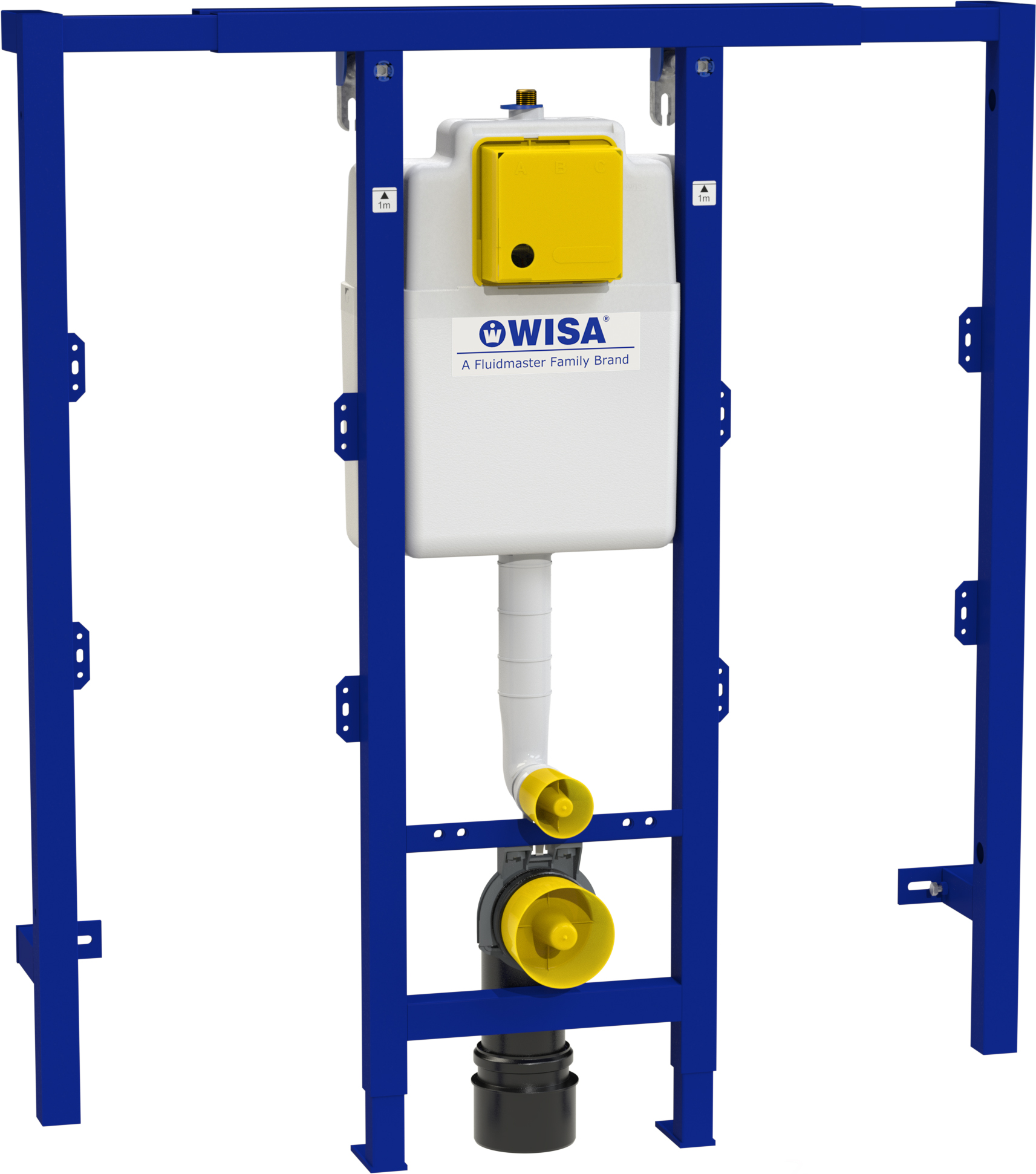

WISA XS L WC frame 118 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Extensible up to 130 cm Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1- 6 - NL I - VR I

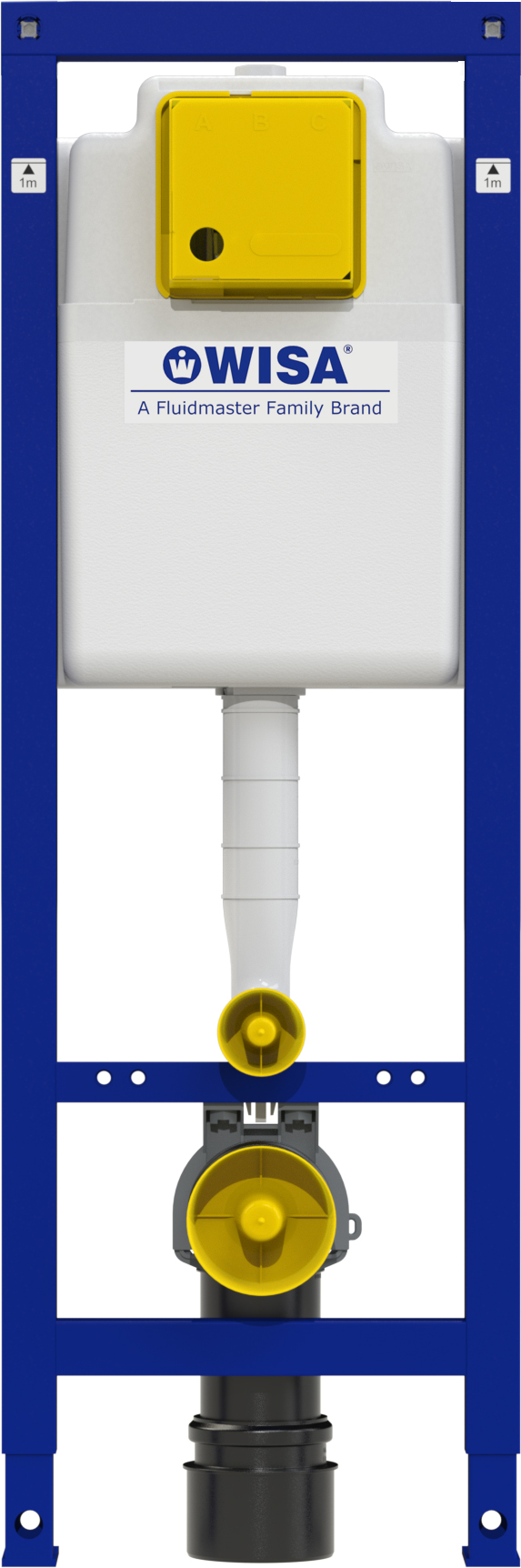

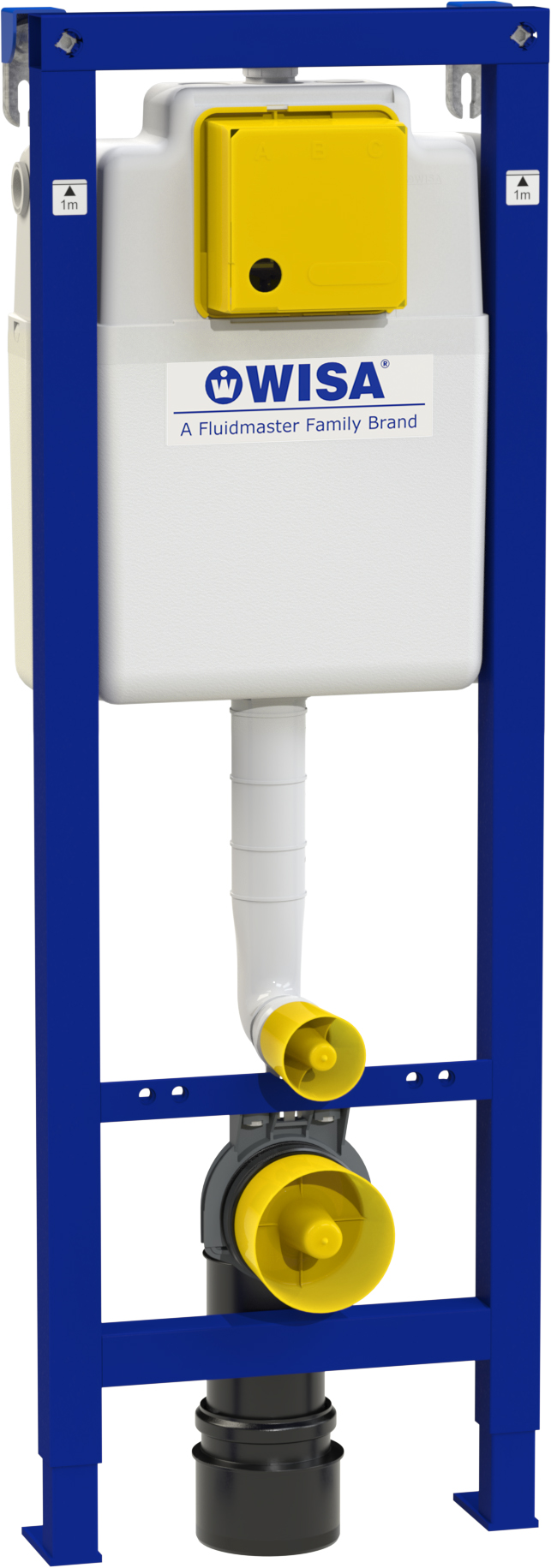

WISA XS WC frame 16 x 2 internal connection 112 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Internal water connection for 16 x 2 PE-Xc/AL/PE-Xc multilayer pipe Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1-6- NL I - VR I
WISA XS L WC frame 118 cm with support plate
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) With two wooden plates for support bars Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1- 6 - NL I - VR I

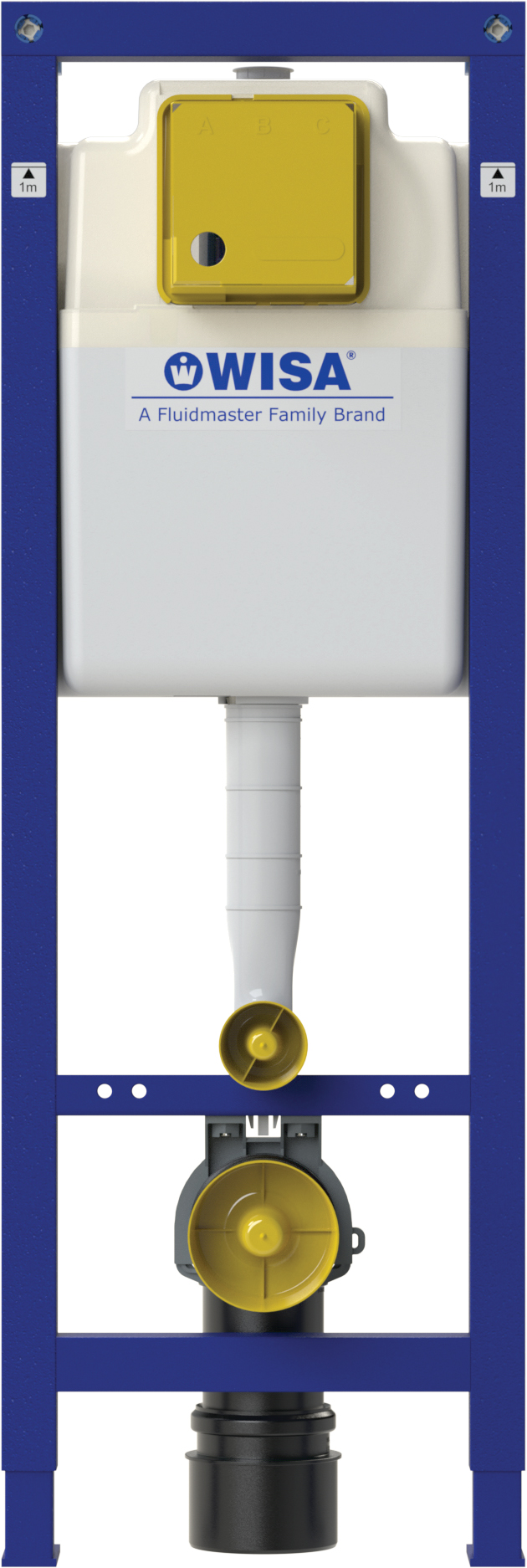

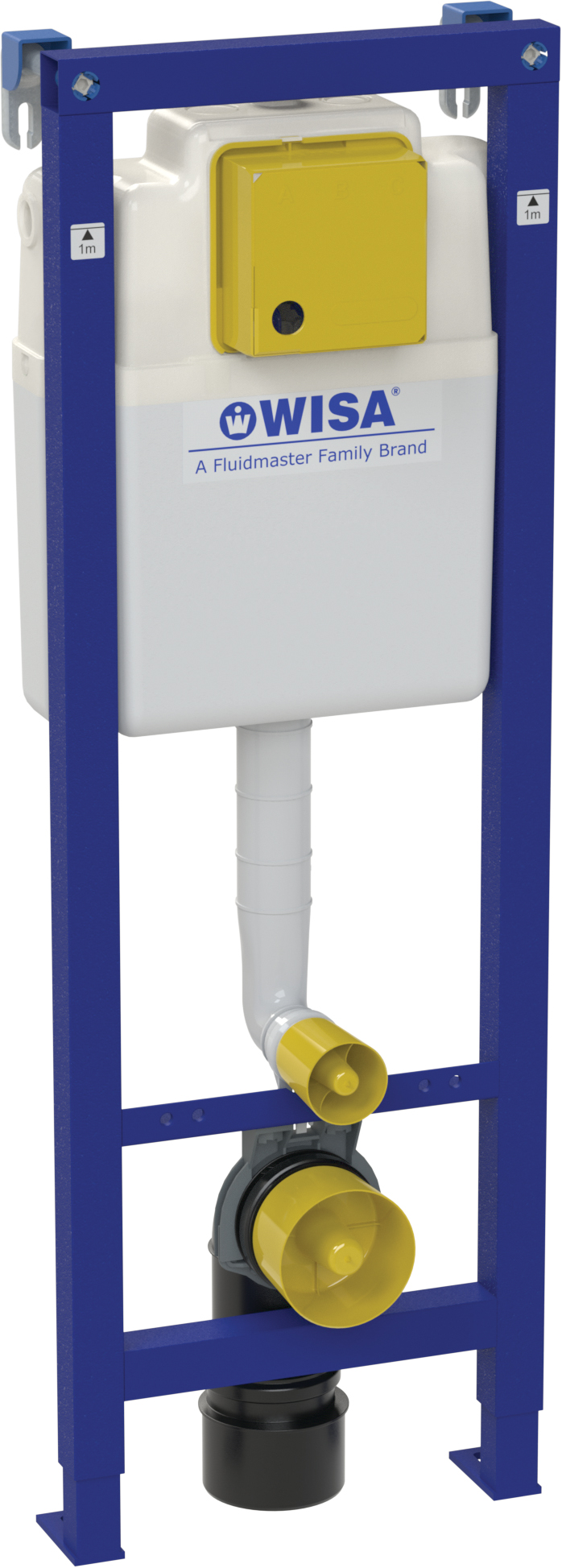

WISA XS WC frame G1/2 internal connection 112 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Internal water connection for 16 x 2 PE-Xc/AL/PE-Xc multilayer pipe Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1-6- NL I - VR I
WISA XT WC frame 118 cm
Pre-installed WC cistern with support frame Strong, powder coated frames made from 4x4 cm closed profile steel Good corrosion resistance Very small built-in frame ( Wide: 38 cm, Height:118 cm, Depth: 14 cm) Frame adjustable up to 20 cm in height Strong flushing Dual flush 3/6 L Flush volume adjustable between 6 and 7.5 L HDPE fully insulated tank, prevents condensation Very quiet hydraulic fill valve (Acoustic class A) Pre-installed cistern, wall and waste pipe connections, valve and water connections Brass shank G1/2” Pre-assembled wall fixation kit Including WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm 90x90 mm elbow with adaptor Adaptor can also be used as a straight connector 90x110 mm Including insulation kit for pan to wall Bowl fixation for 180 and 230 mm Sleeves for protection of the rods Including cardboard drilling template and comprehensive instruction for all countries/languages Suitable for pneumatic and mechanical control panels Top or front control possible Modern, compact and slim design control panels available in different colours and materials CE EN 14055 - CL1-6- NL I - VR I Because of the pre-installed parts it’s easy and fast to install.Very easy to exchange the products inside the cistern. Easy changing from 6/3 to 4/2 liter flush by interchanging the flush valve. Easy changing from 6 to 7,5 liters without removing the valve.

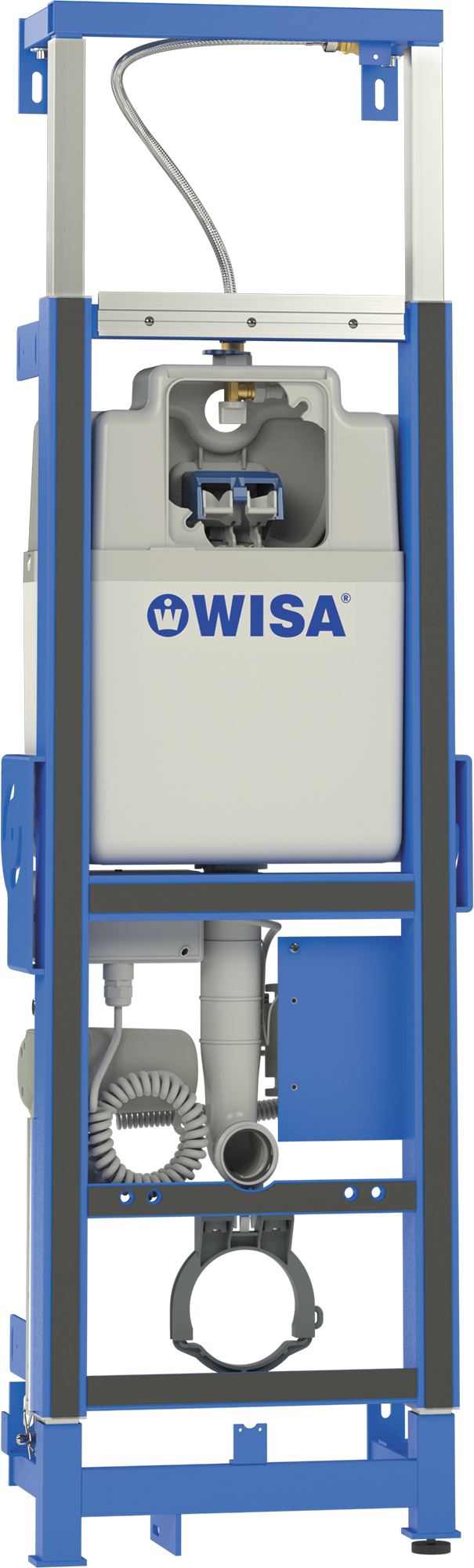

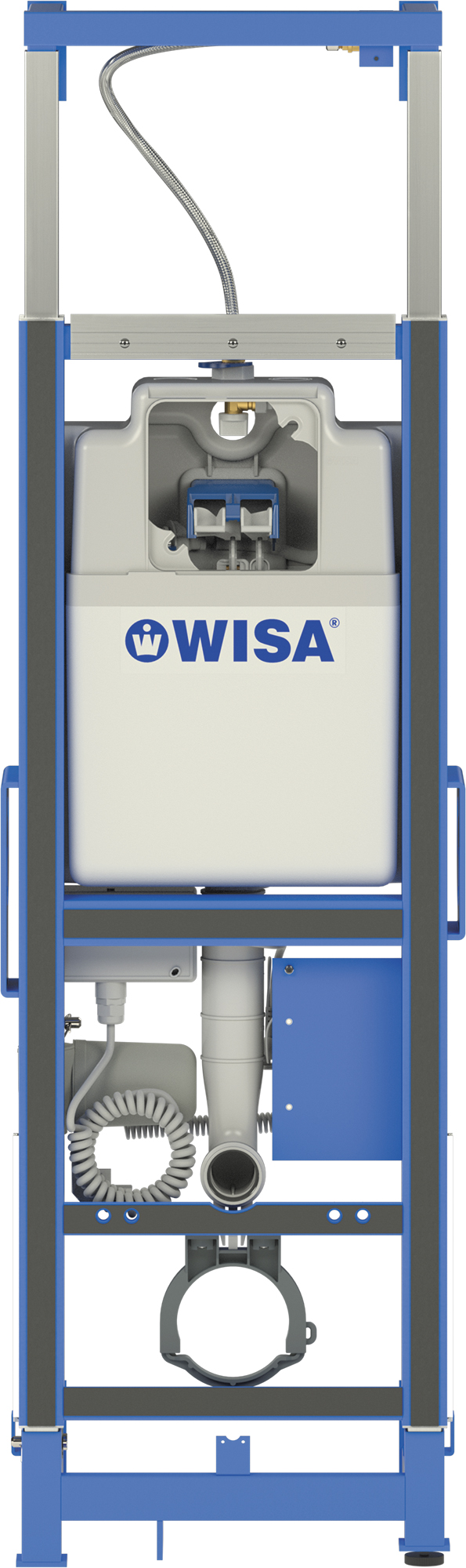

VARIOTRONIC
The concealed wall-mounted system is so thin that manoeuvring next to it in a wheelchair is easyAesthetically very attractiveThe sides and walls are finished in high-quality stainless steelServicing and maintenance via the sideStatic load up to 400 kgPeople up to 180 kg can be raisedThe system is supplied with sides and top high-quality stainless steel platesFront element is available in white HPL and in white or black tampered glassArm supports on the side can be completely folded up next to the frame for optimum transferArm supports move with the systemArm supports are easy to attach/dismantleThe concealed wall-mounted system is easy to assembleAvailable with any control panel, mechanical, pneumatic or electronic

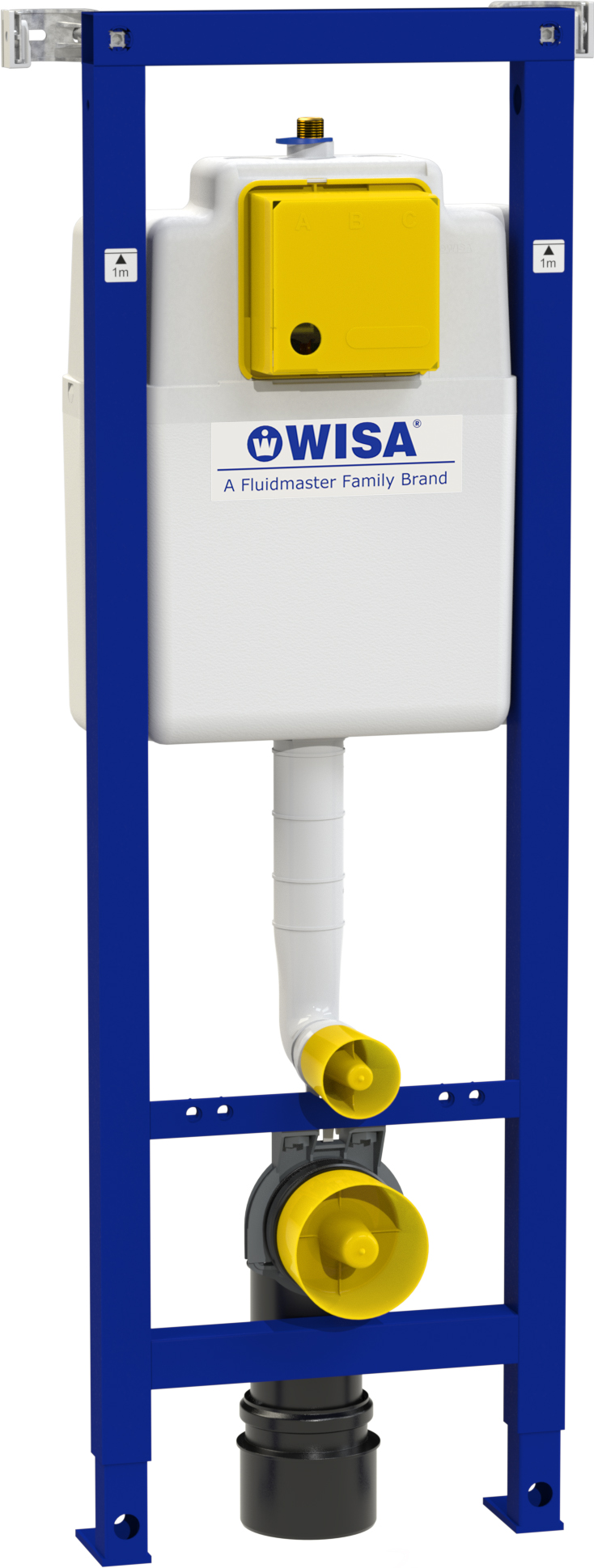

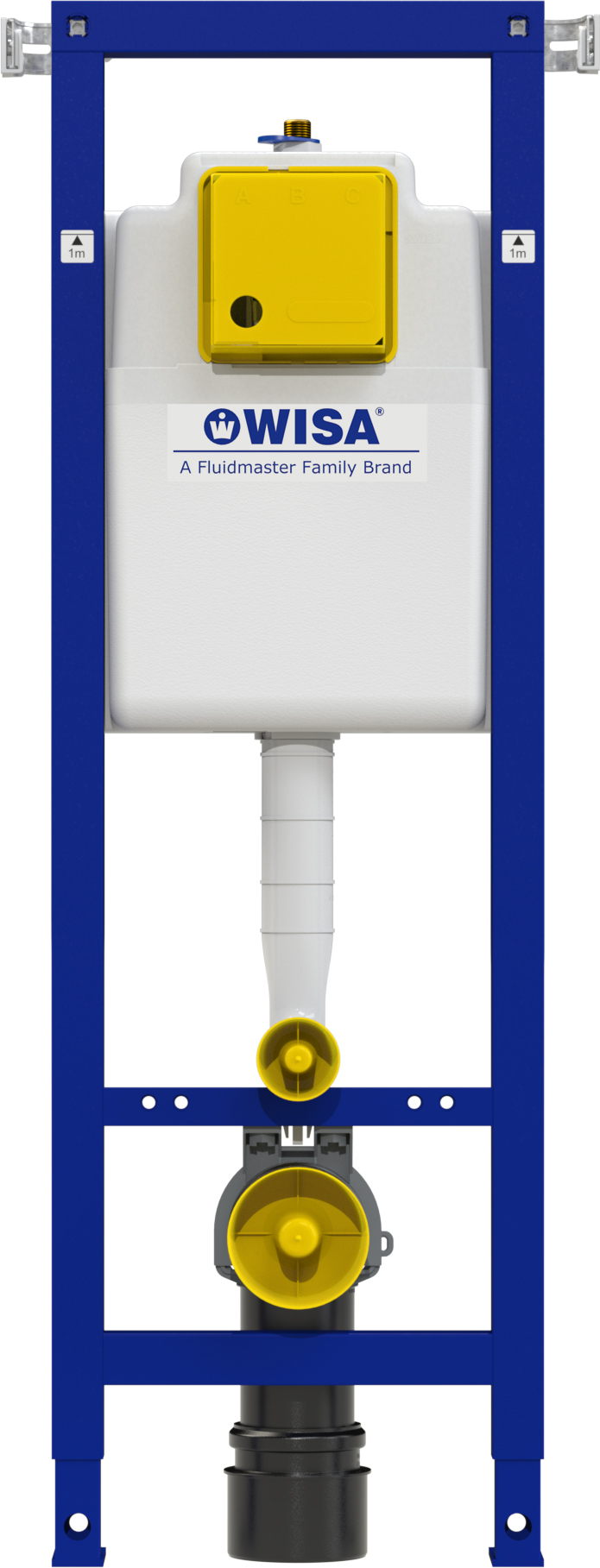

WISA XS WC frame corner 118 cm
Pre-installed WC cistern with support frame suitable for corner installation Blue powder coated frame Adjustable feet (20 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1-6- NL I - VR I

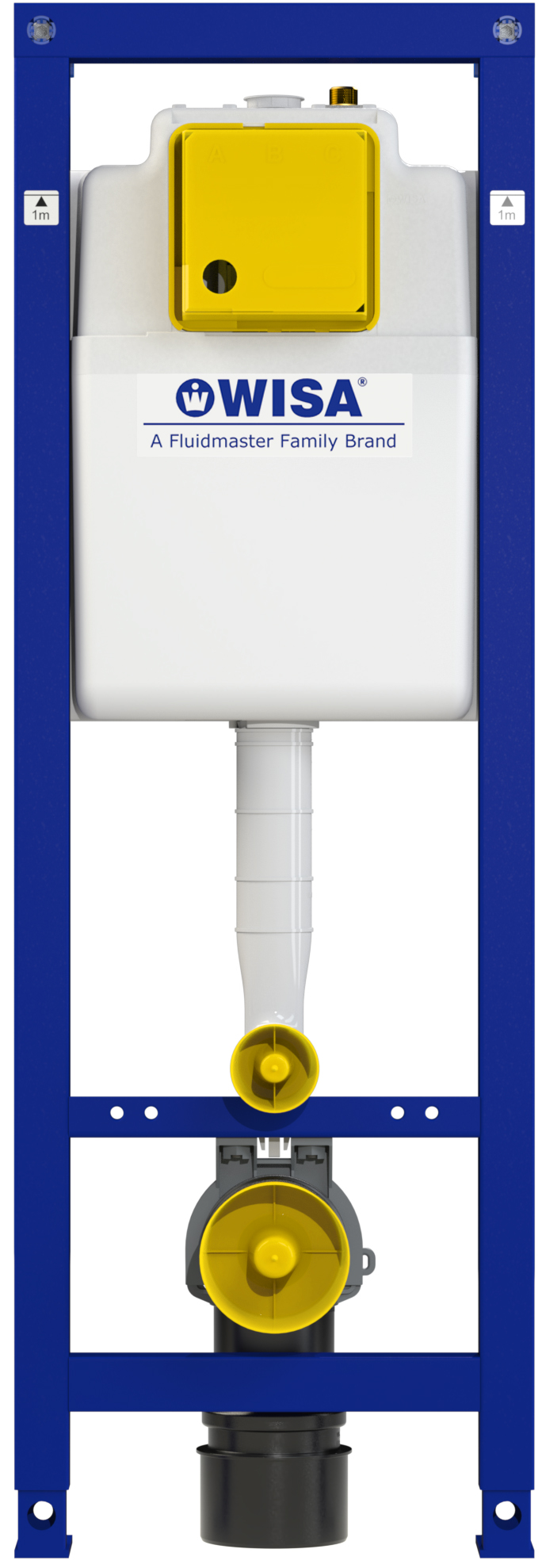

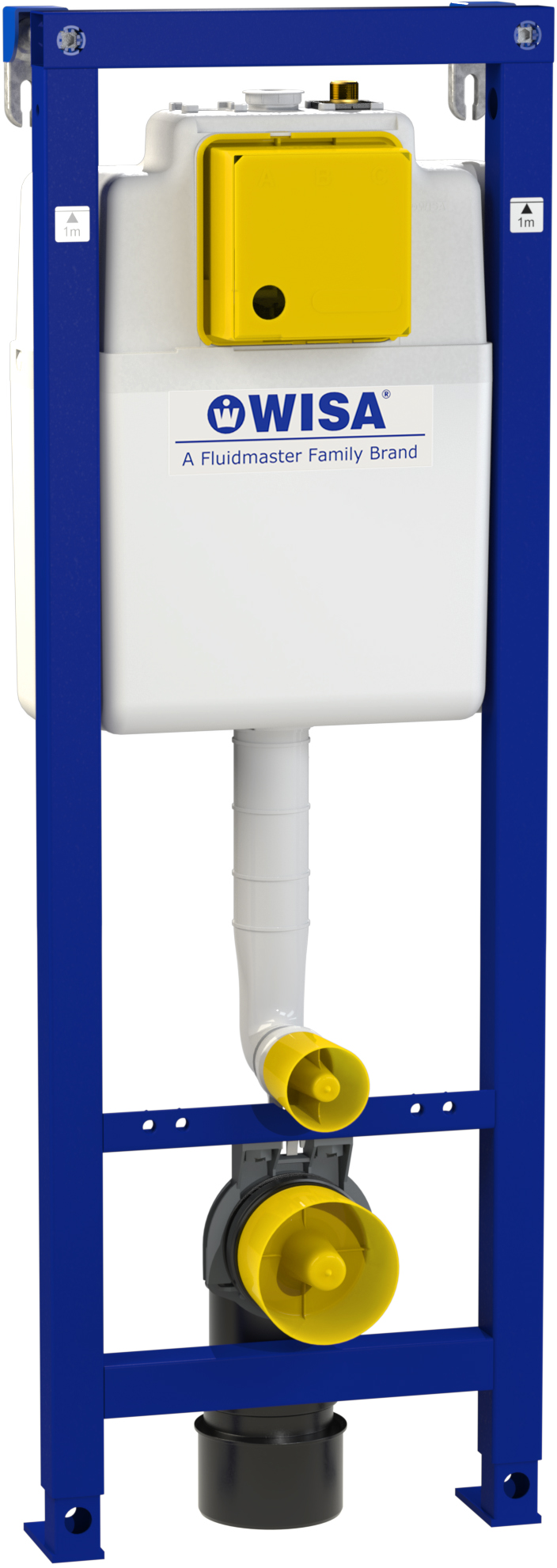

WISA XS WC frame 114 cm
Pre-installed WC cistern with support frame Blue powder coated frame Adjustable feet (20 cm) Dual flush 3/6 L or 6 L flush interruption depending on control panel Flush volume adjustable between 6 and 7.5 L Insulated against condensation Quiet hydraulic float valve Pre-installed stop valve Water connection 1/2” Pre-assembled wall fixation kit Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm Incl. insulation kit for pan to wall CE EN 14055 - CL1-6- NL I - VR I
