How do I mount a control panel on a WISA 2100 concealed cistern?

February 17, 2021

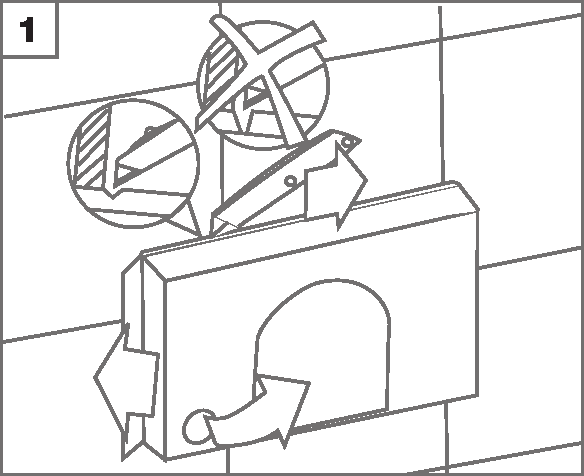

  1. Cut the masonry aid to size by cutting it at tile height.
  2. Remove the cover plate. Remove spacer pins (A) and adjustment pins (B) from the box.

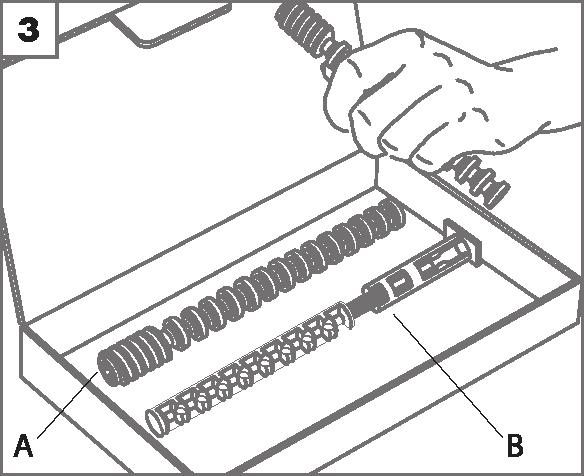

  3. Press spacer pins (A) into the click cam with the screw thread at the front, such that the ends just do not protrude from the finished wall.
  4. Shorten the rear spacer pins if necessary.
  5. Place the window on the spacers. Tighten it by turning the spacer pins counterclockwise.
  6. If the window cannot be turned tight enough, unscrew the window. Move the spacers in the cams. Repeat point 5.
  7. Insert the adjusting pin (B) through the eye and click into place, so that the adjusting pin at the front protrudes at least 2 cm from the window.
  8. Adjustment is done by turning the head or possibly by sliding it into the click cam.
  9. Hook in the control panel at the bottom. Hook the eye of the key under the knob of the leveling pin. Push the panel upwards and hook it in at the top. If the button does not work, adjust the length of the adjusting pin by turning it.
