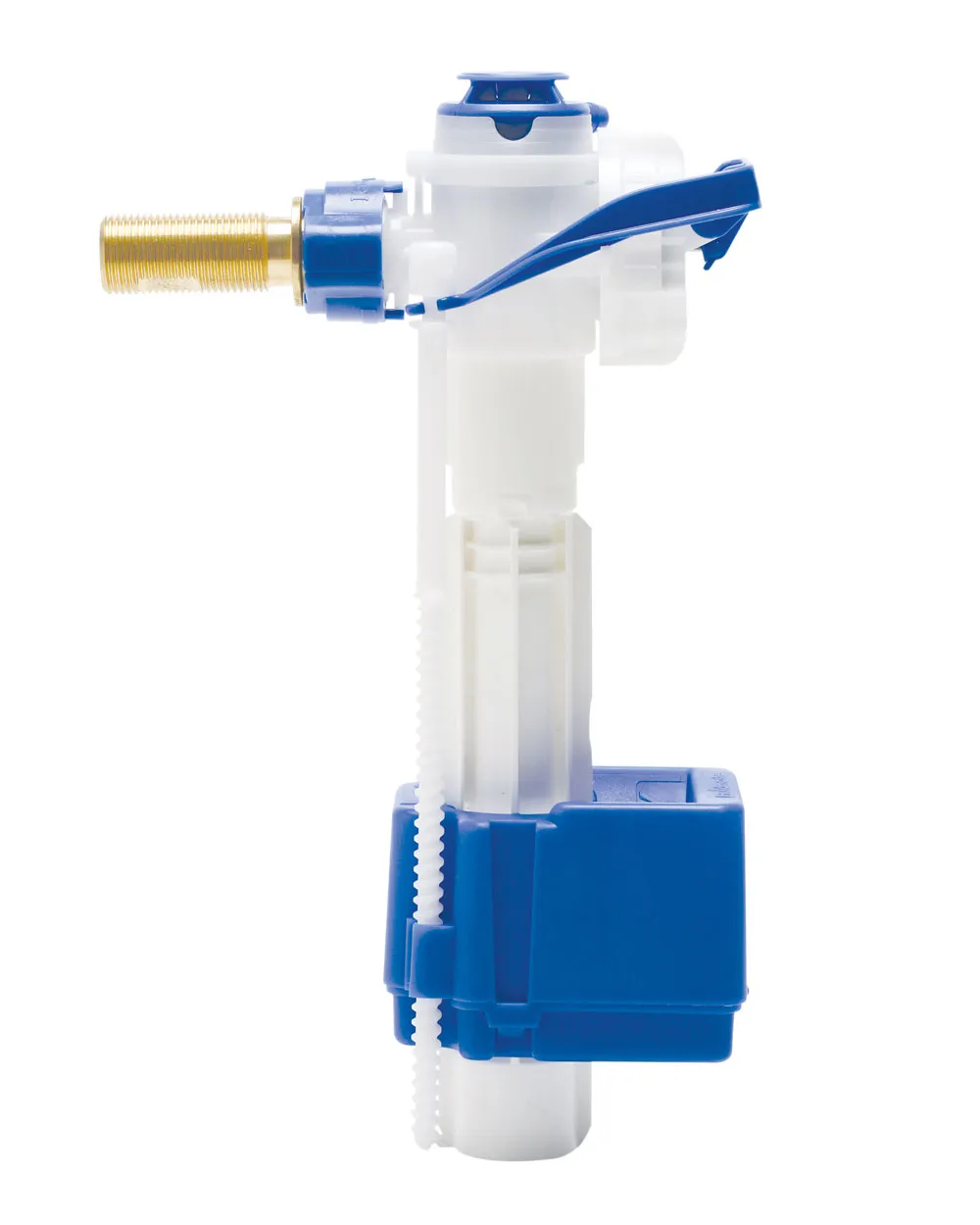

Fluidmaster 747 G 3/8 messing vlotterkraan
The high level of accuracy provided by the valve makes for an ideal flush volume in any toilet. The durable parts stand up to years of flushes, while the narrow profile allows a proper fit in slim-line WC cisterns with no adjustment needed.
Quality is assured by factory testing of every valve, living up to the highest Fluidmaster quality standards.
Productnummer:
747E-037-P20
EAN:
3838912063502
- Suitable for concealed, exposed and ceramic flushing cisterns
- Durable hydraulic filling valve
- Compact filling valve
- Side mount valve
- Suitable for high and low pressure (restrictor added in the shank)
- Extremely quiet operation (Class 1)
- Short filling time
- Water level adjusting screw
- Anti-corrosion material
- Unique self-cleaning valve mechanism
- Fast and easy to install
- Proven and reliable quality
- Consistent performance
- Brass shank G 3/8 x 39 mm
| Aansluiting: | Buitendraad |
|---|---|

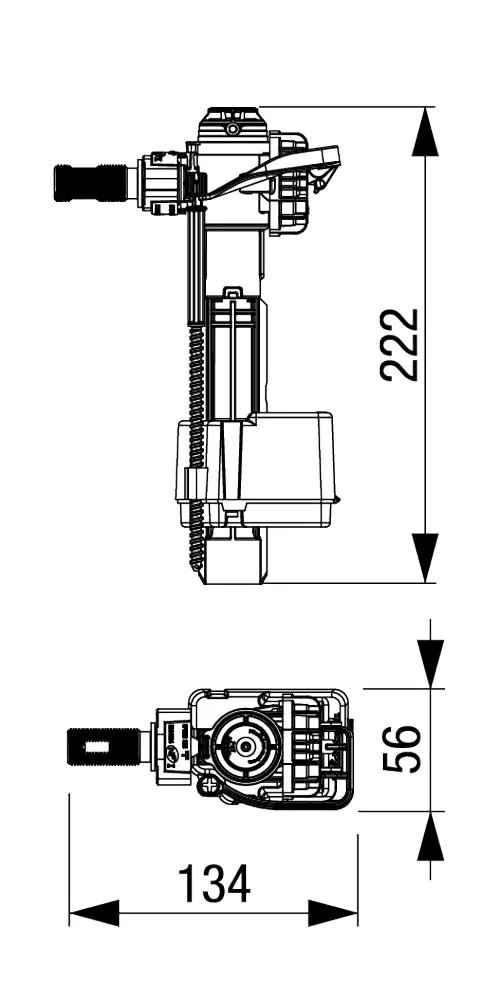

| Breedte: | 56 mm |
| Diepte: | 131 mm |
| Excentrische aansluiting: | Nee |
| Geluidsklasse: | Groep I, <= 20 dB(A) |
| Geluidsklasse volgens DIN-52 218: | Groep I, <= 20 dB(A) |
| Hoogte: | 222 mm |
| KIWA-keur: | Ja |
| Lengte draadaansluiting: | 33 mm |
| Maat draadaansluiting (inch): | 3/8" |
| Materiaal aansluiting: | Messing |
| Max. druk: | 10 bar |
| Max. mediumtemperatuur (continu): | 30 °C |
| Min. voordruk: | 0.5 bar |
| Sound class according to EN ISO 3822: | Groep I, <= 20 dB(A) |
