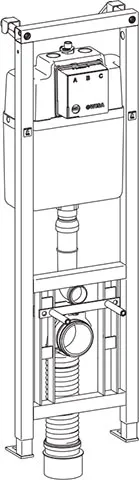

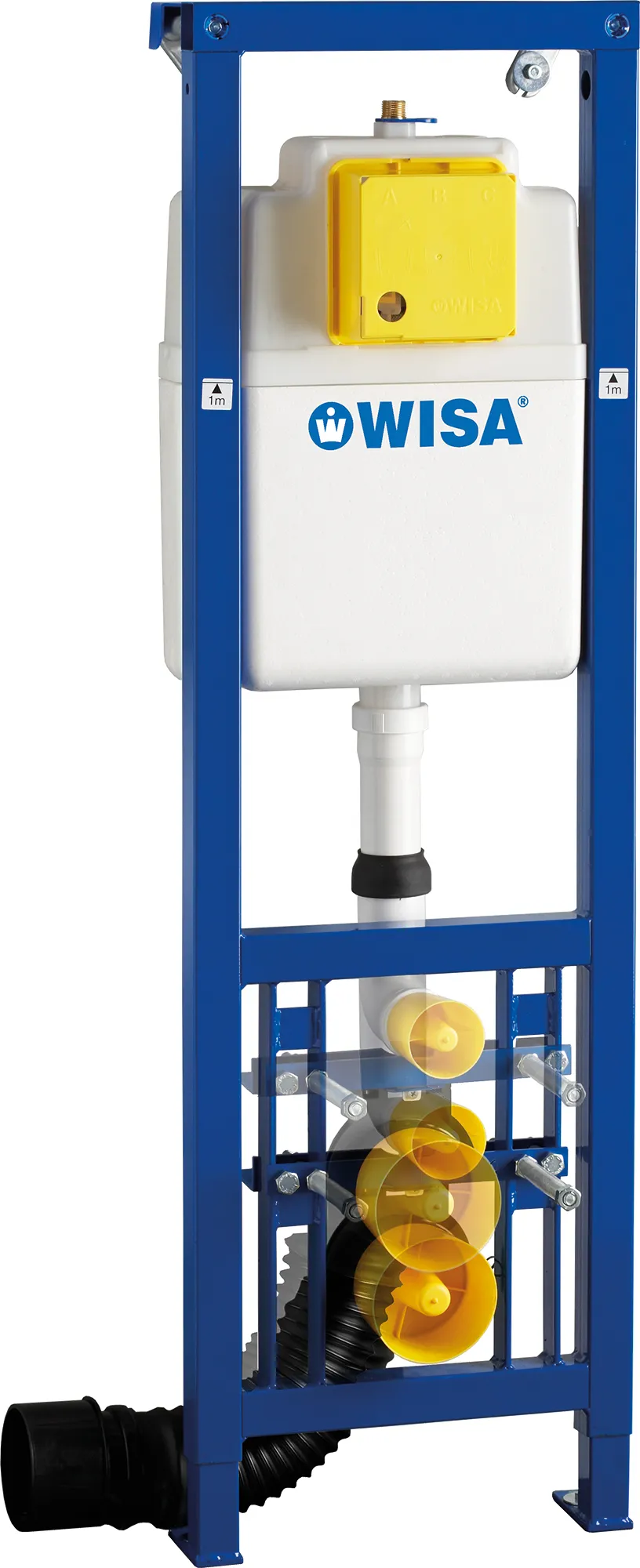

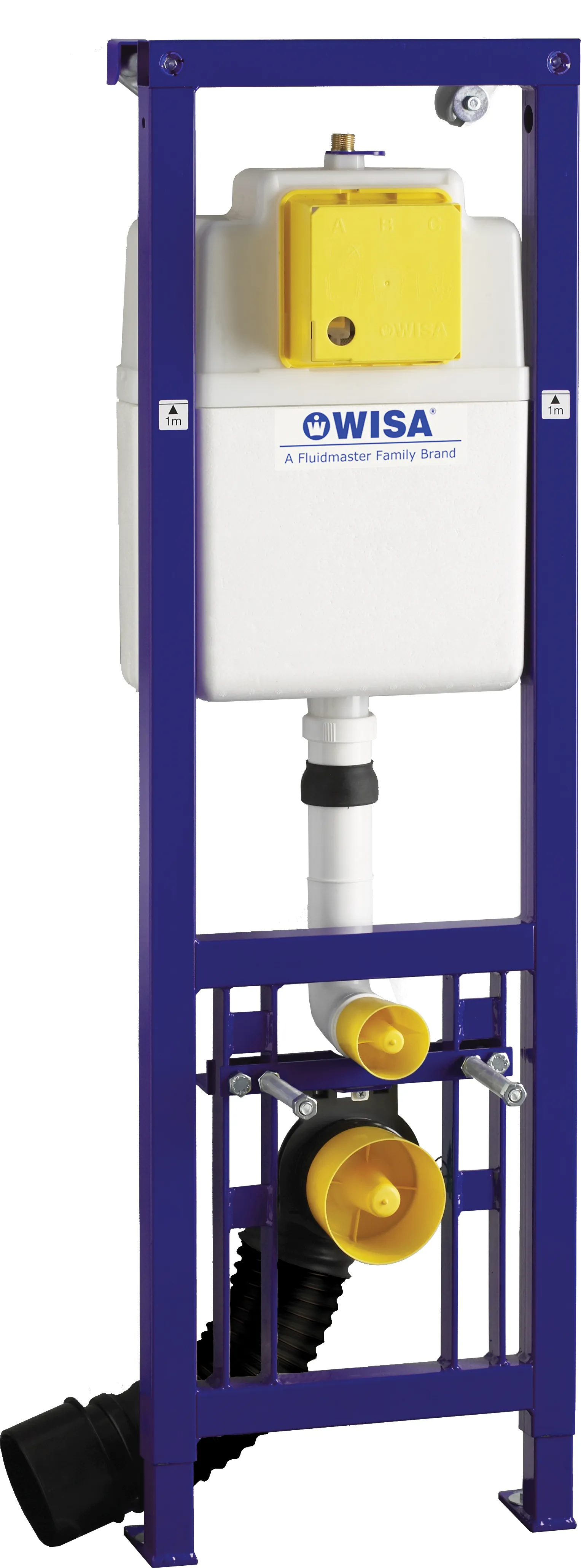

WISA XS WC Vario
Número de producto:
8050452735
EAN:
8711778121164
- elemento de inodoro preinstalado en un marco autoportante lacado en azul
- inodoro suspendido de altura regulable (+100 mm) tras el revestimiento
- pies de altura regulable (140 mm)
- técnica de descarga: dualflush (3/6 l) o interrupción de descarga (6 l)
- volumen de descarga ajustable (6-7,5 l)
- cisterna aislada anticondensación
- válvula de flotador hidráulica silenciosa
- válvula de bola preinstalada en la cisterna
- preparado para conectar a cañerías de plástico
- toma de agua G 1/2 â–¡â–¡ incluye juego de fijación a la pared preinstalado
- incluye cubierta PE (ver pagina 14)
- incluye guía de encastrado
- incluye bajante flexible de 90 mm con adaptador 90x110 mm
- CE EN 14055 - CL1-6- NL I - VR I
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | Yes |
| Adjustable width: | No |
| Alimentación por batería: | No |
| Altura: | 1300 to 1500 mm |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Con material de montaje para el elemento: | Yes |
| Con revestimiento frontal: | No |
| Depth: | 160 to 200 mm |
| Depósito de lavado de clase de calidad: | Polipropileno |
| Drenaje del diámetro exterior de la tubería: | 90 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Garantía: | 10 años |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Acero |
| Material flushing reservoir: | Plástico |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 1300 mm |
| Number of tap water connections: | 1 |
| Programmable with remote control: | No |
| Self-bearing construction: | Yes |
| Serie: | XS |
| Size of tap water connection: | 1/2 pulgada |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Tap water connection: | Rosca externa |
| Tipo de reservorio: | WISA XS |
| Tratamiento de superficie: | Con revestimiento |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | Yes |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With inlet and outlet fittings: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Número de producto: | Descripción | Imagen |
|---|---|---|
| 8035432783 | Válvula de flotador hidráulica universal |
|
| 8050801525 | Mecanismo de descarga con goma de válvula inferior XS/XT incluida |
|
| 8050801522 | Mecanismo de descarga XS/XT DFF (en combinación con el art. n.º 8050404410) |
|
| 8050390090 | Codo de desagüe PE 90 x 90mm |
|
| 8050390091 | Adaptador PE 90/110 (embalado individualmente) |
|
| 8050887372 | Adaptador PE 90/100 (embalado individualmente) |
|
| 8050390080 | Juego de conexiones para inodoro L=230mm |
|
| 8050390081 | Juego de conexiones para inodoro L=300mm |
|
| 8050885470 | Reductor WISA XS/XT (azul) |
|
