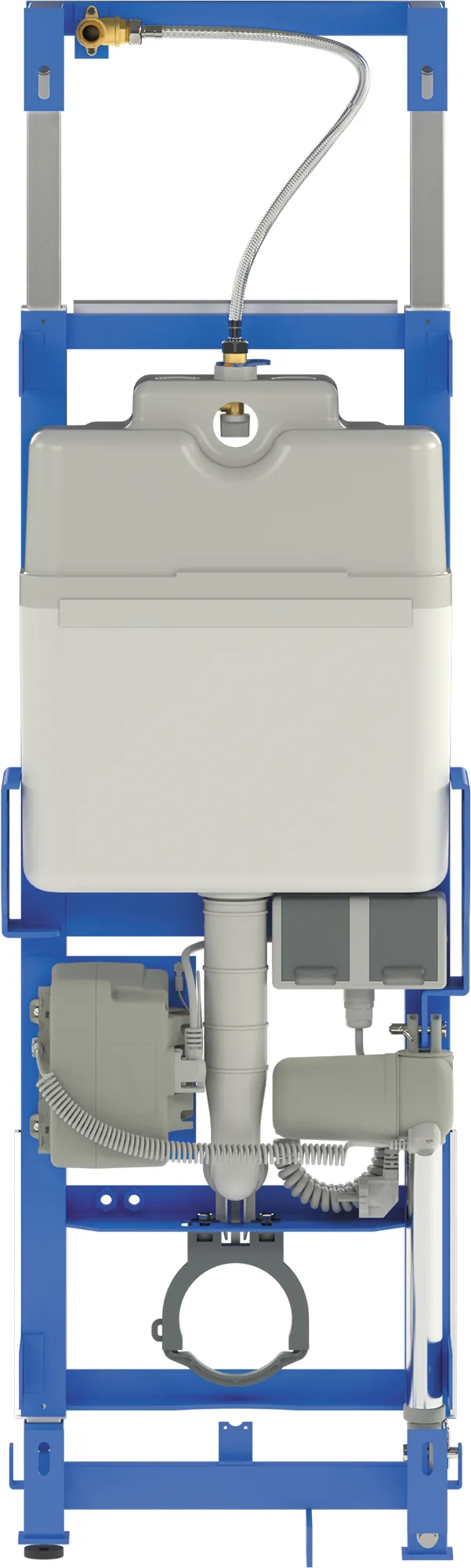

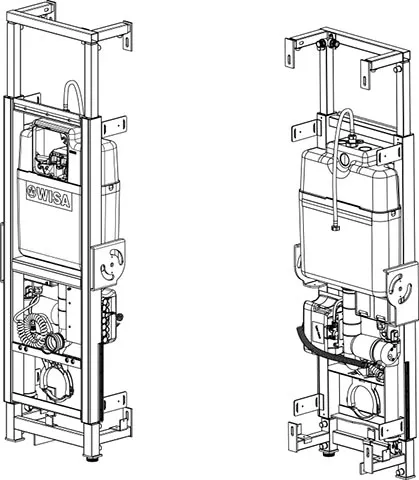

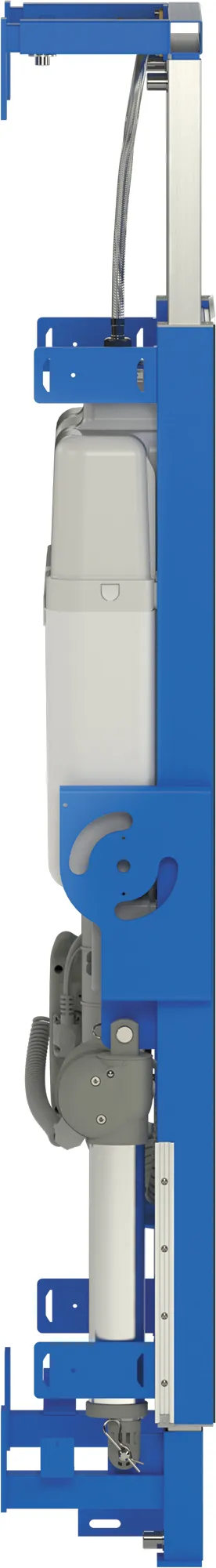

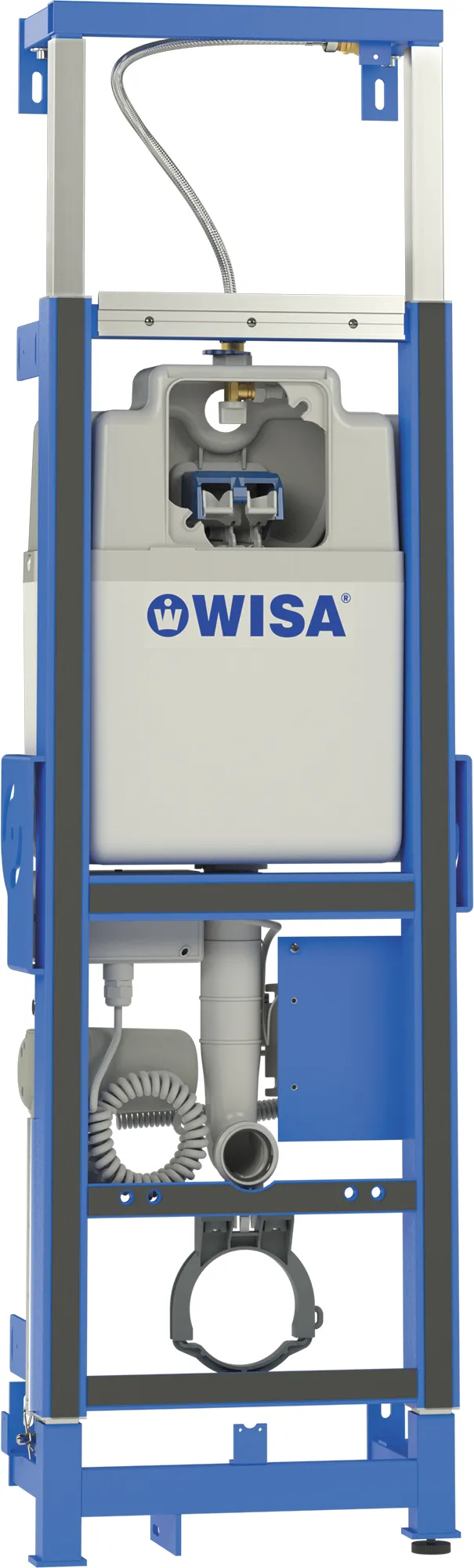

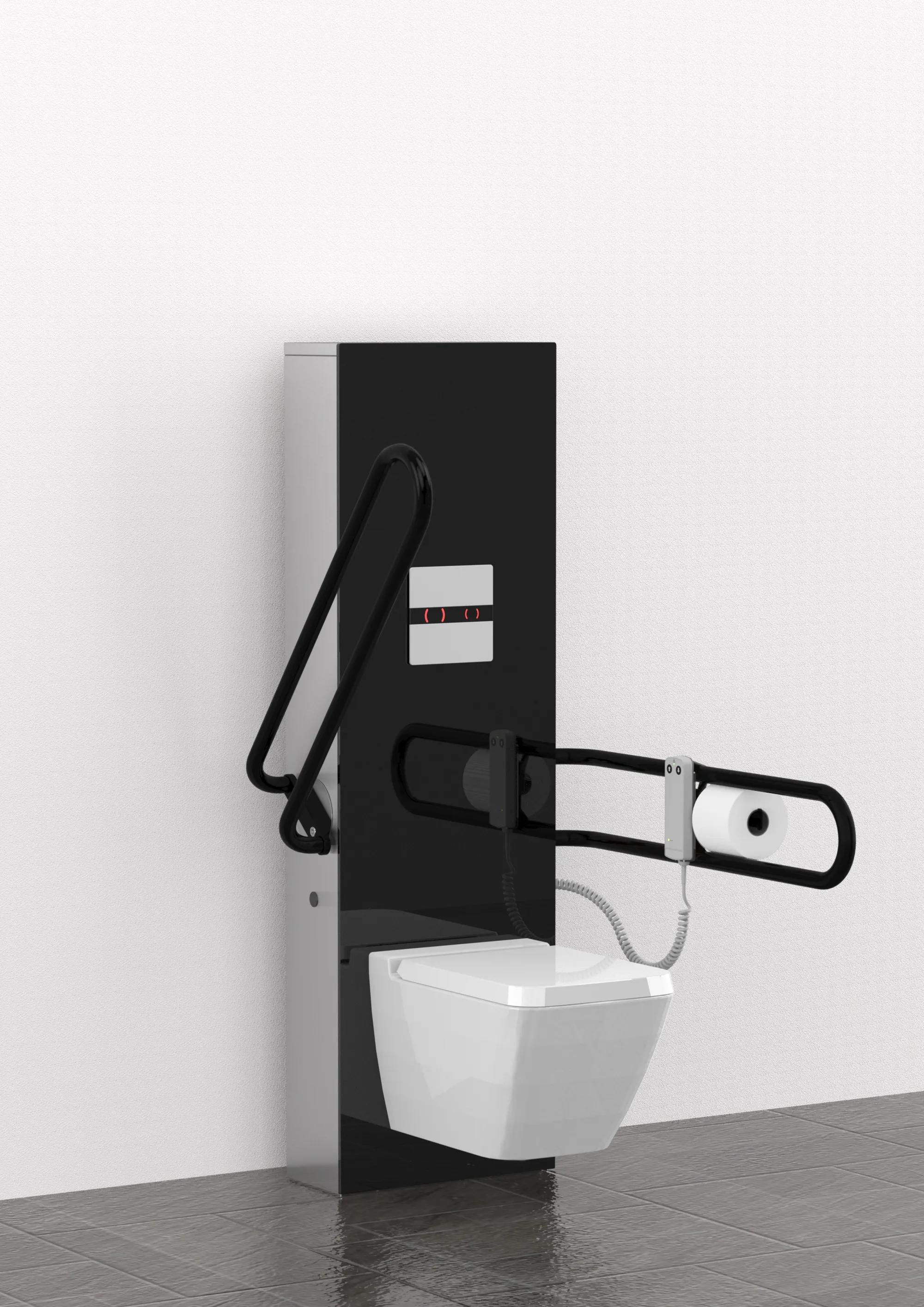

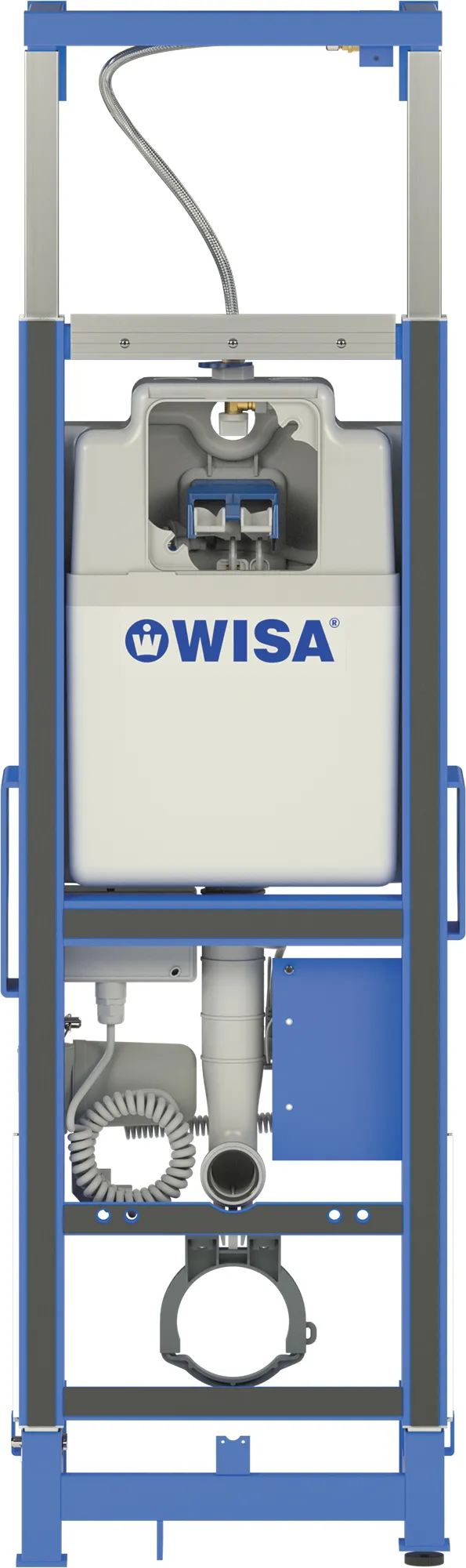

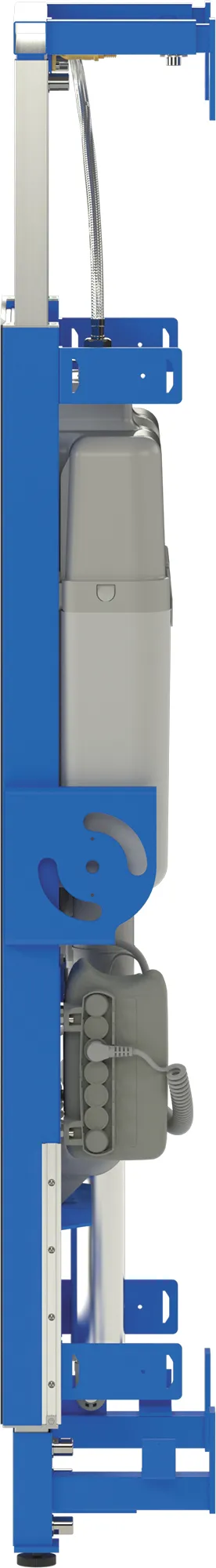

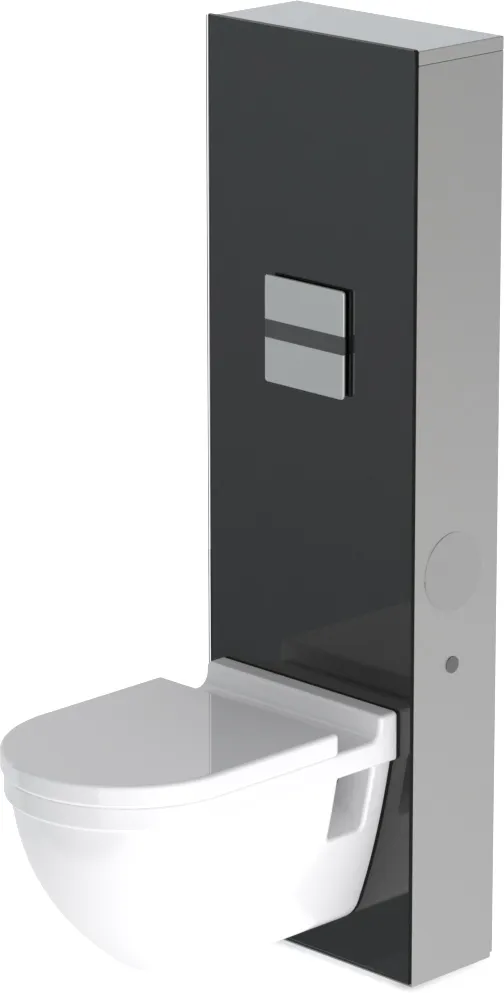

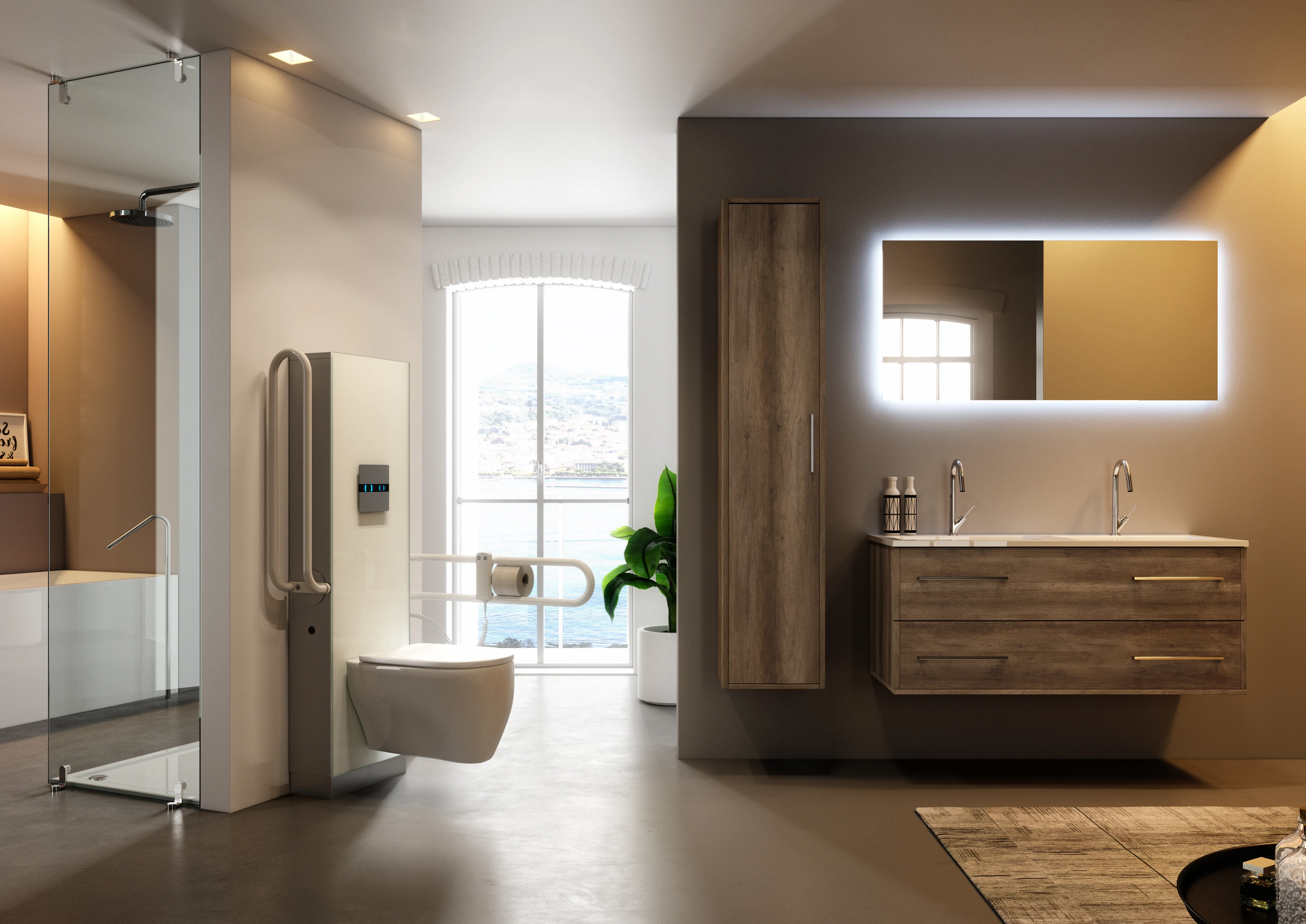

WISA XS WC elemento VarioTronic
Número de producto:
8050482101
EAN:
8711778200746
- El sistema de pared es tan estrecho que permite maniobrar con facilidad para acercar una silla de ruedas.
- Estéticamente resulta muy agradable.
- El acabado lateral y de la pared es de acero inoxidable de alta calidad.
- Acceso lateral para reparaciones.
- Soporta cargas estáticas de 400 kg.
- Puede levantar a personas de hasta 180 kg.
- Los asideros laterales pueden replegarse completamente hacia el bastidor para facilitar al máximo el traslado.
- Los asideros se desplazan junto con el elemento.
- Los asideros son fáciles de montar y desmontar.
- El sistema de pared es de montaje fácil.
| Adjustable depth: | No |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | No |
| Adjustable toilet height: | Yes |
| Adjustable width: | No |
| Alimentación por batería: | No |
| Altura: | 1400 to 1400 mm |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Con material de montaje para el elemento: | Yes |
| Con revestimiento frontal: | No |
| Declaration of Performance: | 14055 |
| Depth: | 200 to 200 mm |
| Depósito de lavado de clase de calidad: | Polipropileno |
| Drenaje del diámetro exterior de la tubería: | 90 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Garantía: | 10 años |
| Grado de protección (IP): | IP44 |
| KIWA certified: | Yes |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Acero |
| Material flushing reservoir: | Plástico |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 1400 mm |
| Number of tap water connections: | 1 |
| Programmable with remote control: | No |
| Self-bearing construction: | Yes |
| Serie: | XS |
| Size of tap water connection: | 1/2 pulgada |
| Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | Yes |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Tap water connection: | Rosca externa |
| Tensión de conexión: | 230 V |
| Tipo de reservorio: | WISA XS |
| Tratamiento de superficie: | Con revestimiento |
| Width: | 420 to 420 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | Yes |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | Yes |
| With fan connection: | No |
| With flushing bend: | Yes |
| With inlet and outlet fittings: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
Paquete de acabado XS Variotronic vidrio negro
For pre-wall VarioTronic system Panel made of tampered glass Side panels and top panel of stainless steel Colour: black

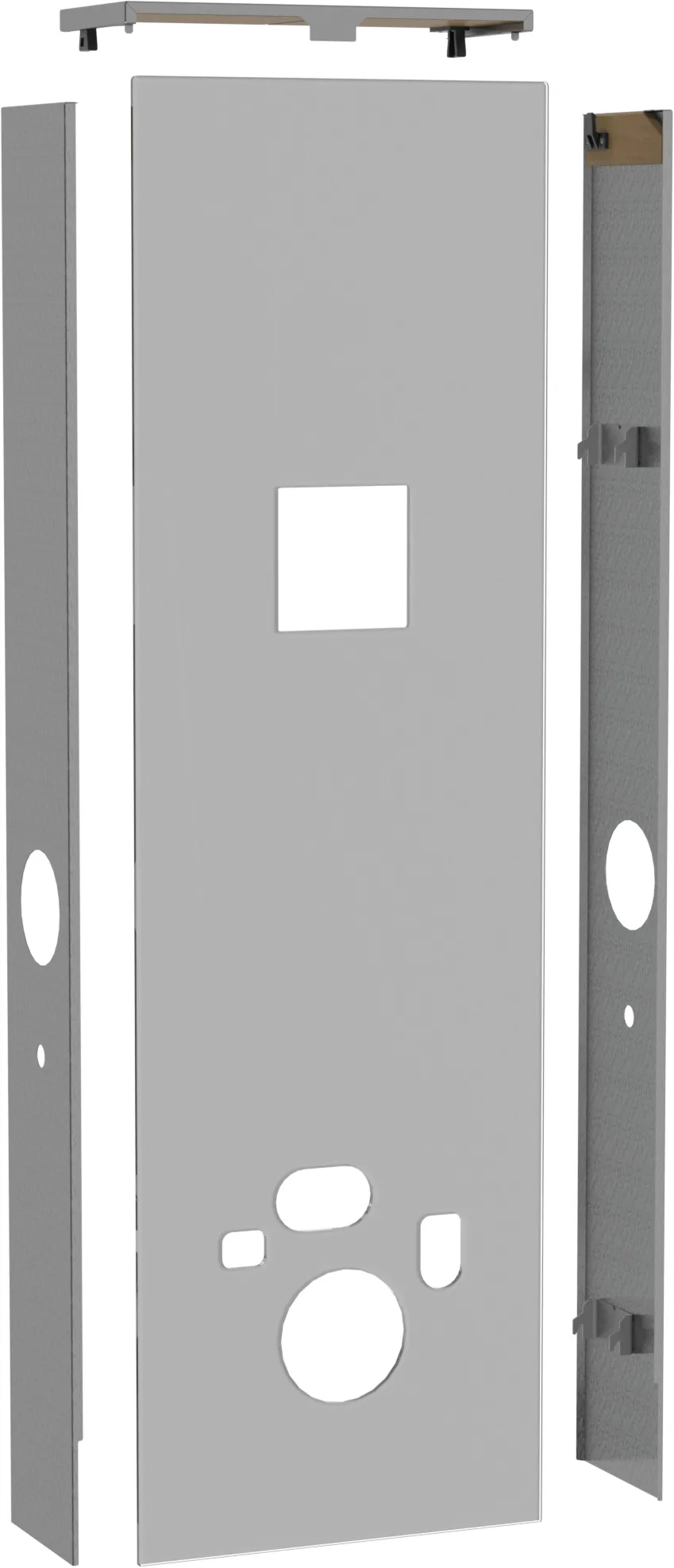

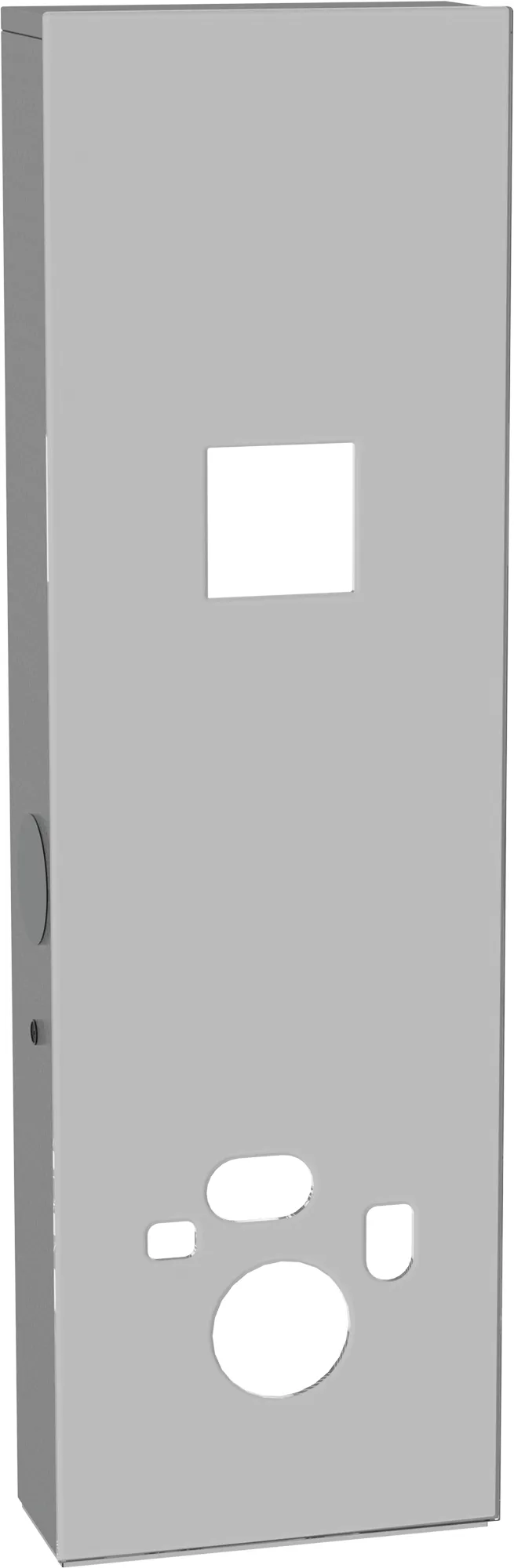

Paquete de acabado XS Variotronic vidrio blanco
For pre-wall VarioTronic system Panel made of tampered glass Side panels and top panel of stainless steelColour: white
Paquete de acabado WISA XS VarioTronic hpl blanco
For pre-wall VarioTronic system The front of the element in HPL Stainless steel side panels and top panel Color: white

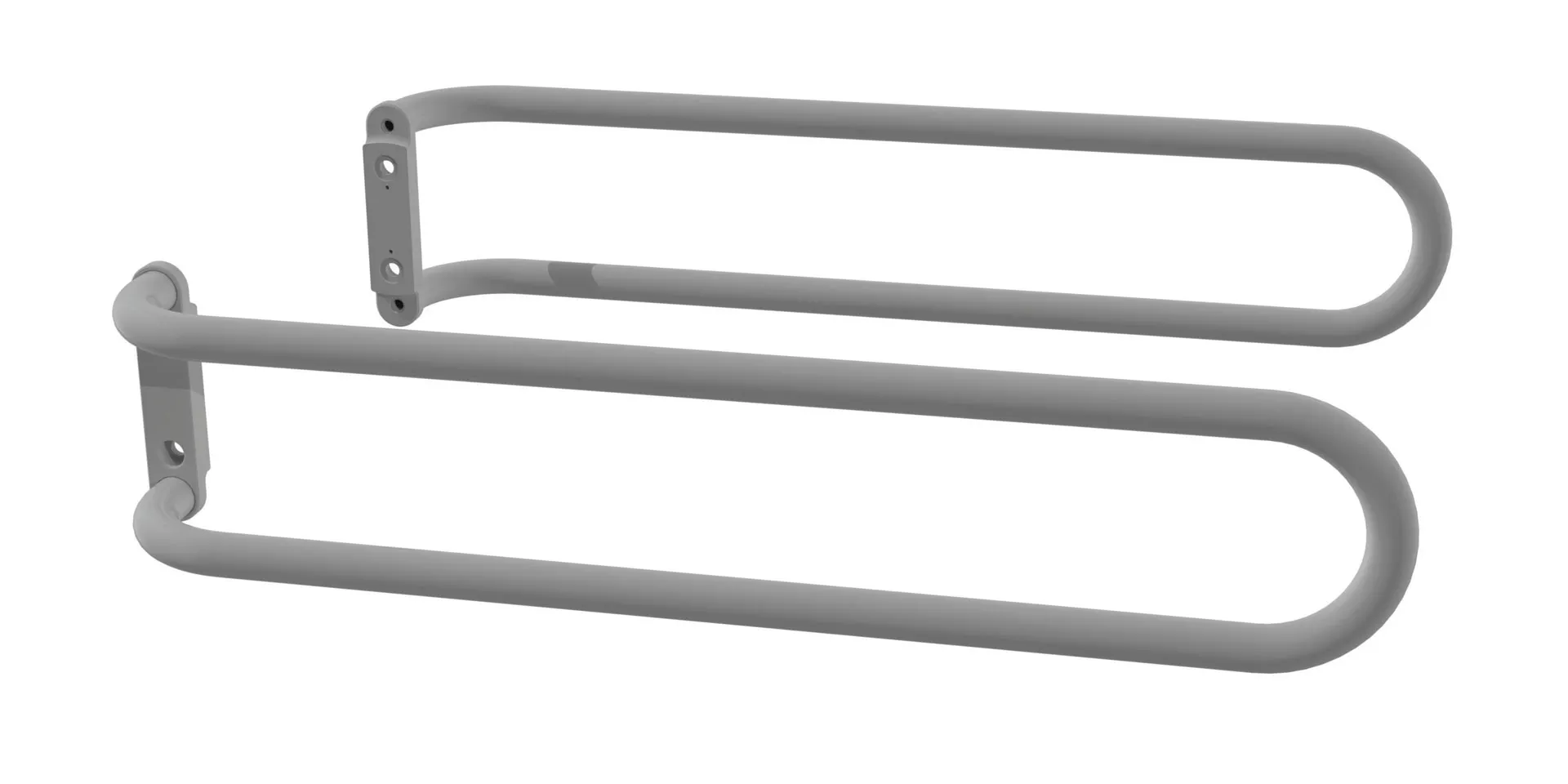

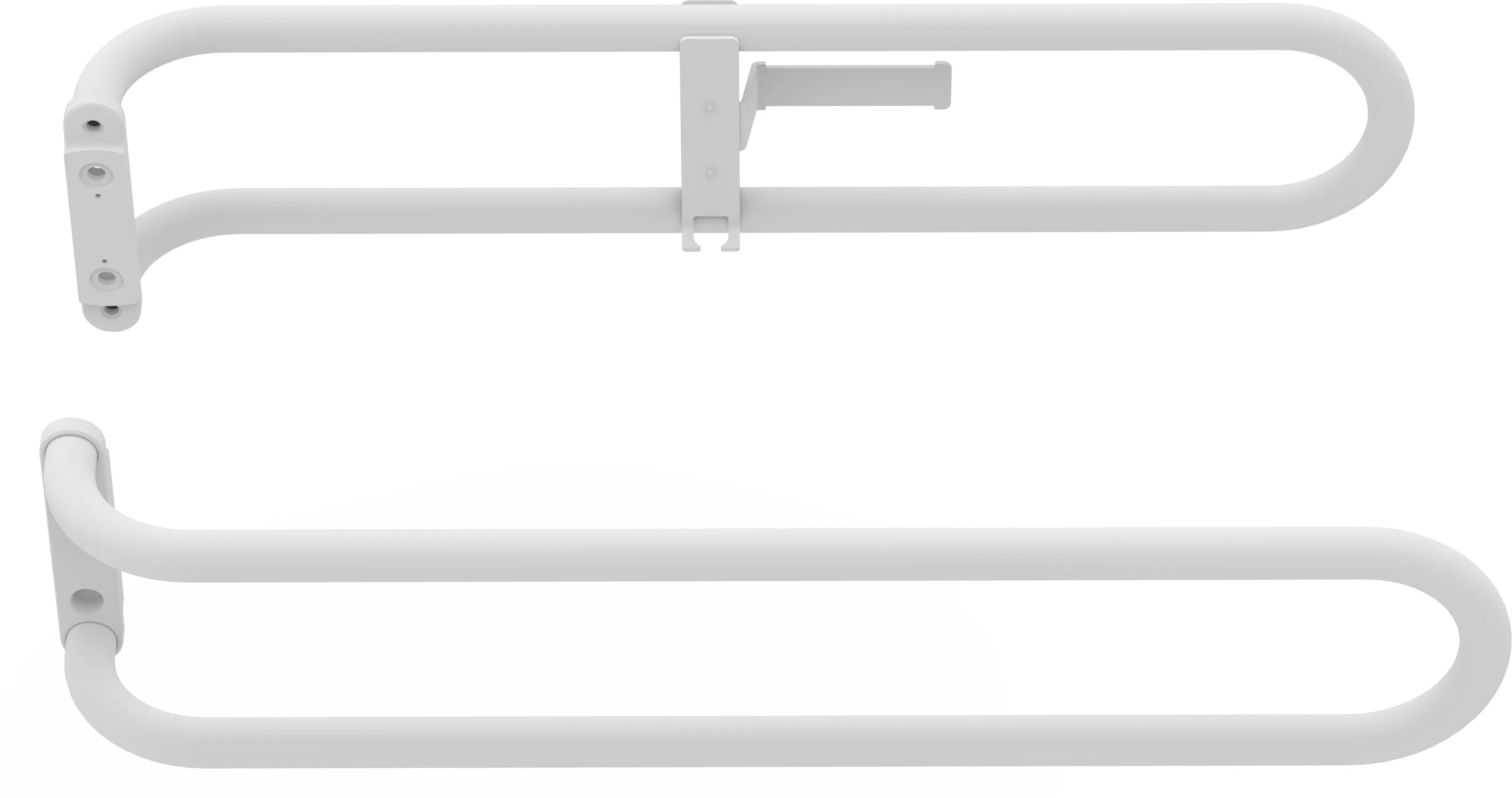

Juego de soportes WISA XS VarioTronic blanco
Arm supports on the side can be completely folded up next to the frame for optimum transferArm supports move with the systemArm supports are easy to attach/dismantleColor: white
Juego de soportes WISA XS VarioTronic negro
Arm supports on the side can be completely folded up next to the frame for optimum transferArm supports move with the systemArm supports are easy to attach/dismantleColor: black

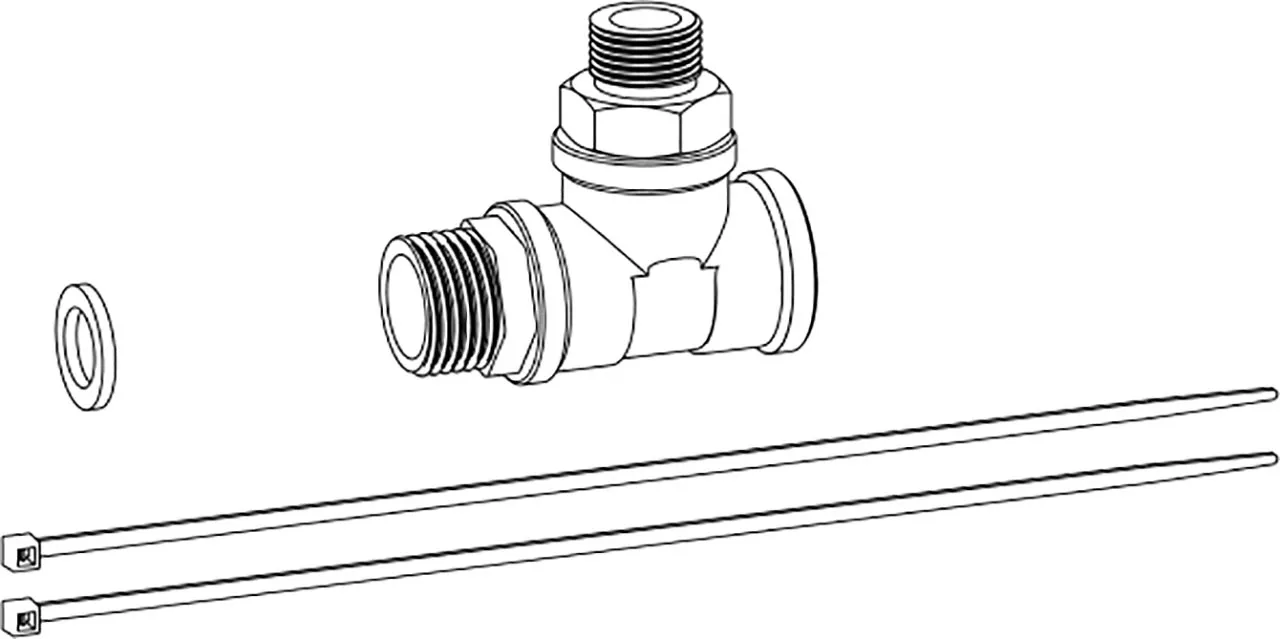

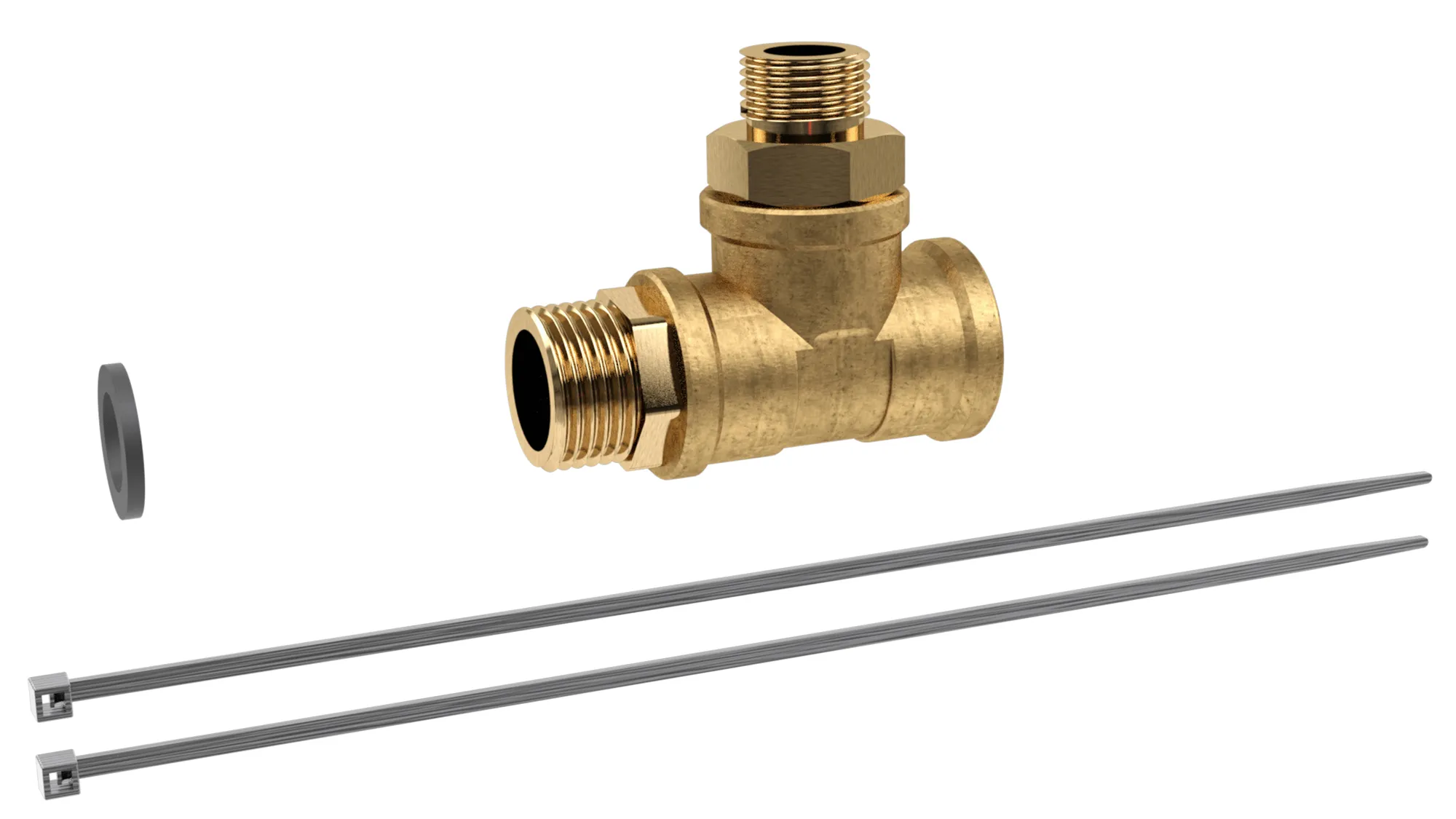

WISA XS Variotronic Juego de conexión para ducha e inodoro
For VarioTronic pre-wall system, electrically height-adjustable T piece between inlet and cistern Connecting shower toilet
| Número de producto: | Descripción | Imagen |
|---|---|---|

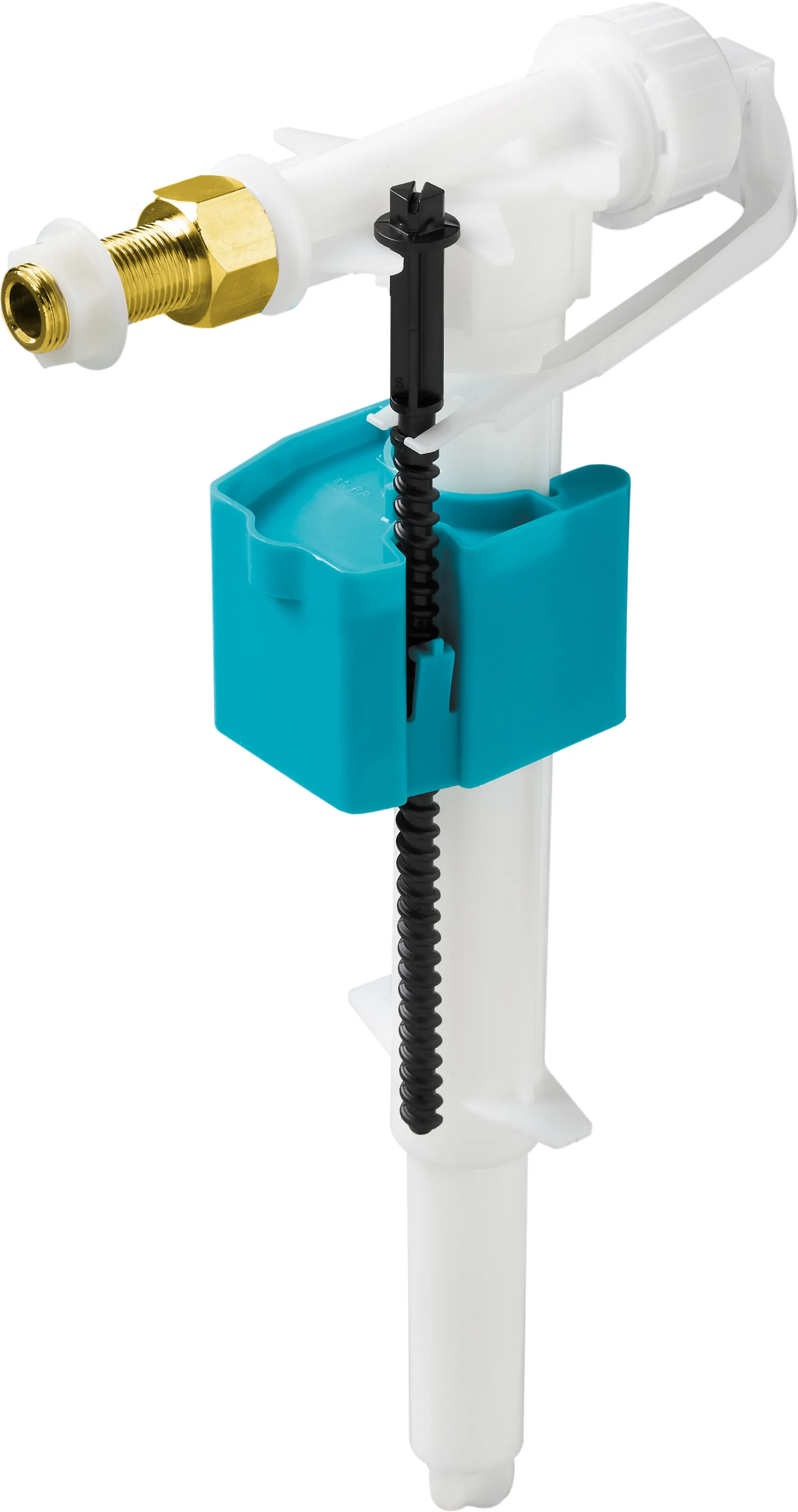

| 8035432783 | Válvula de flotador hidráulica universal |
|

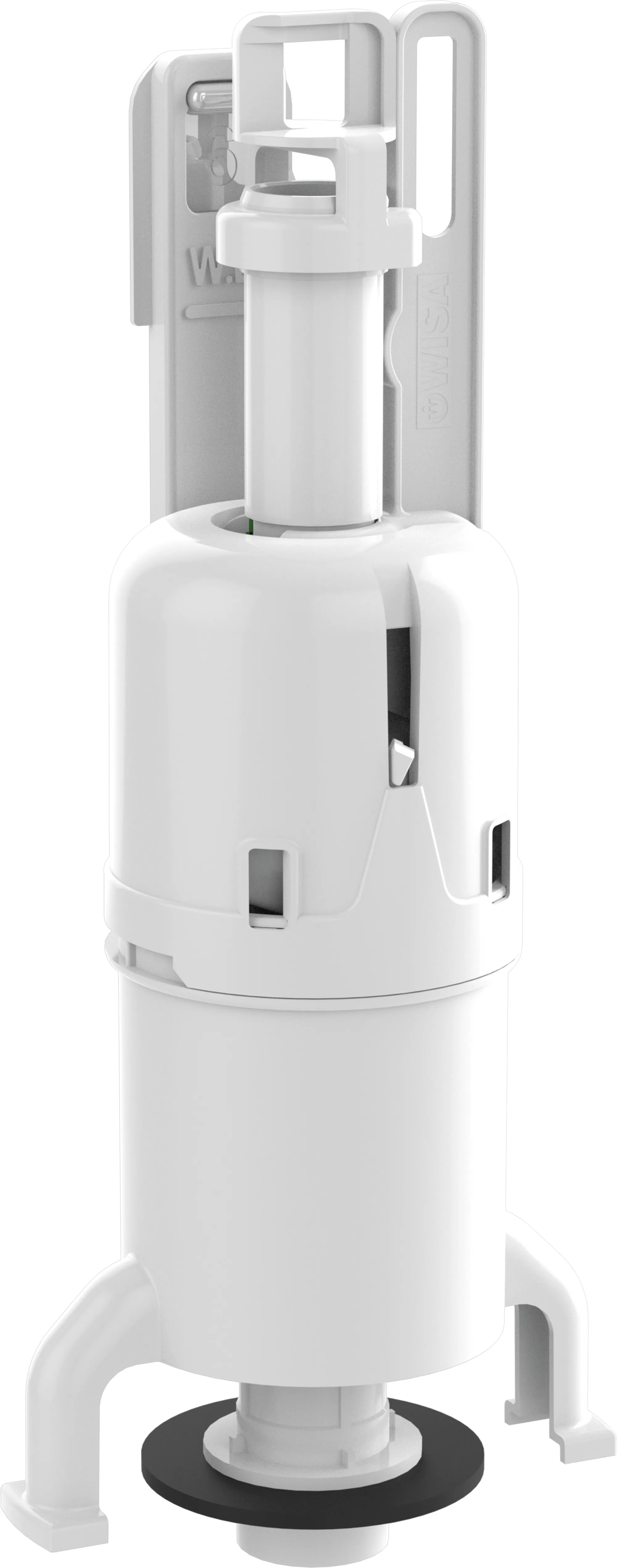

| 8050801525 | Mecanismo de descarga con goma de válvula inferior XS/XT incluida |
|
| 8050801522 | Mecanismo de descarga XS/XT DFF (en combinación con el art. n.º 8050404410) |
|

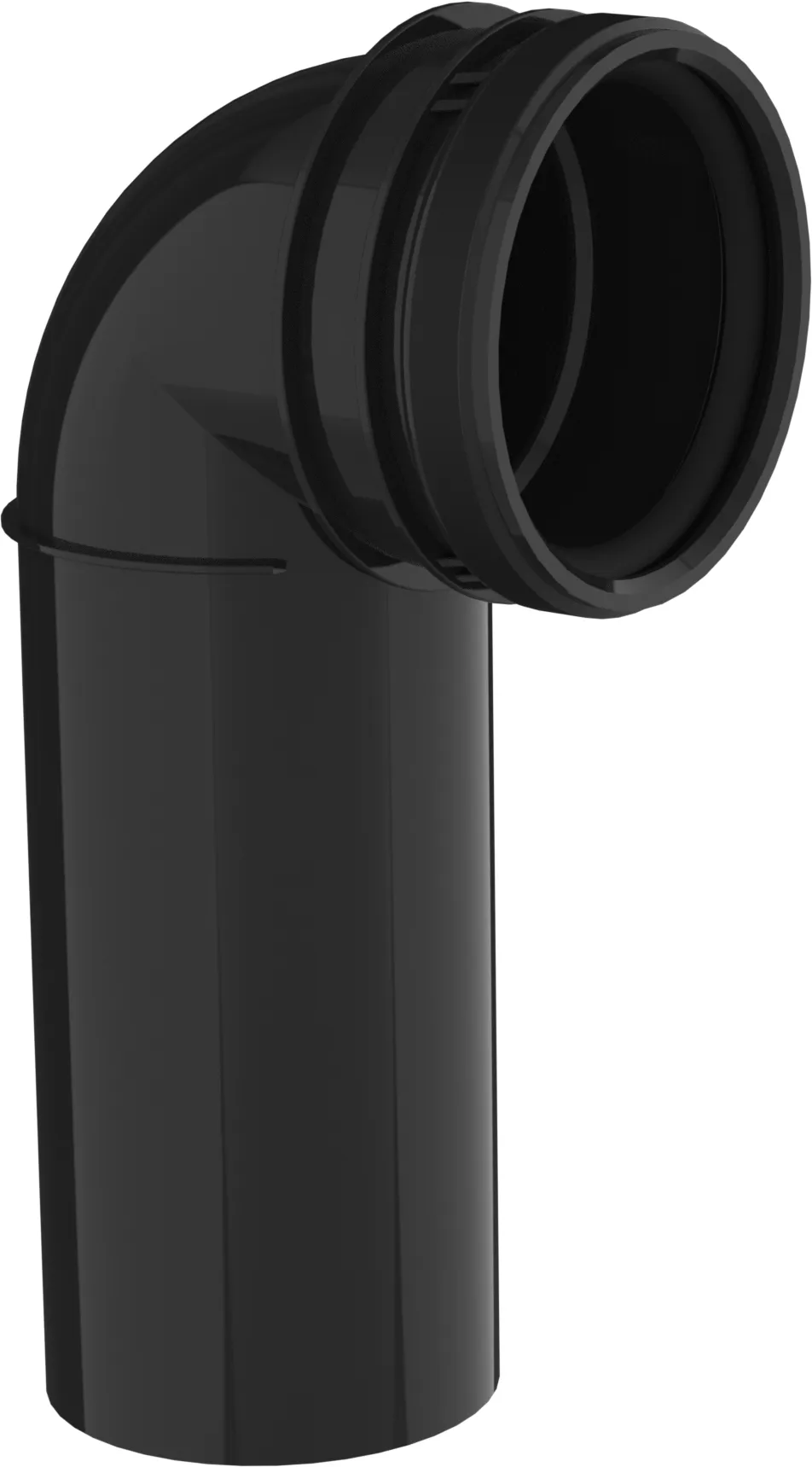

| 8050390090 | Codo de desagüe PE 90 x 90mm |
|

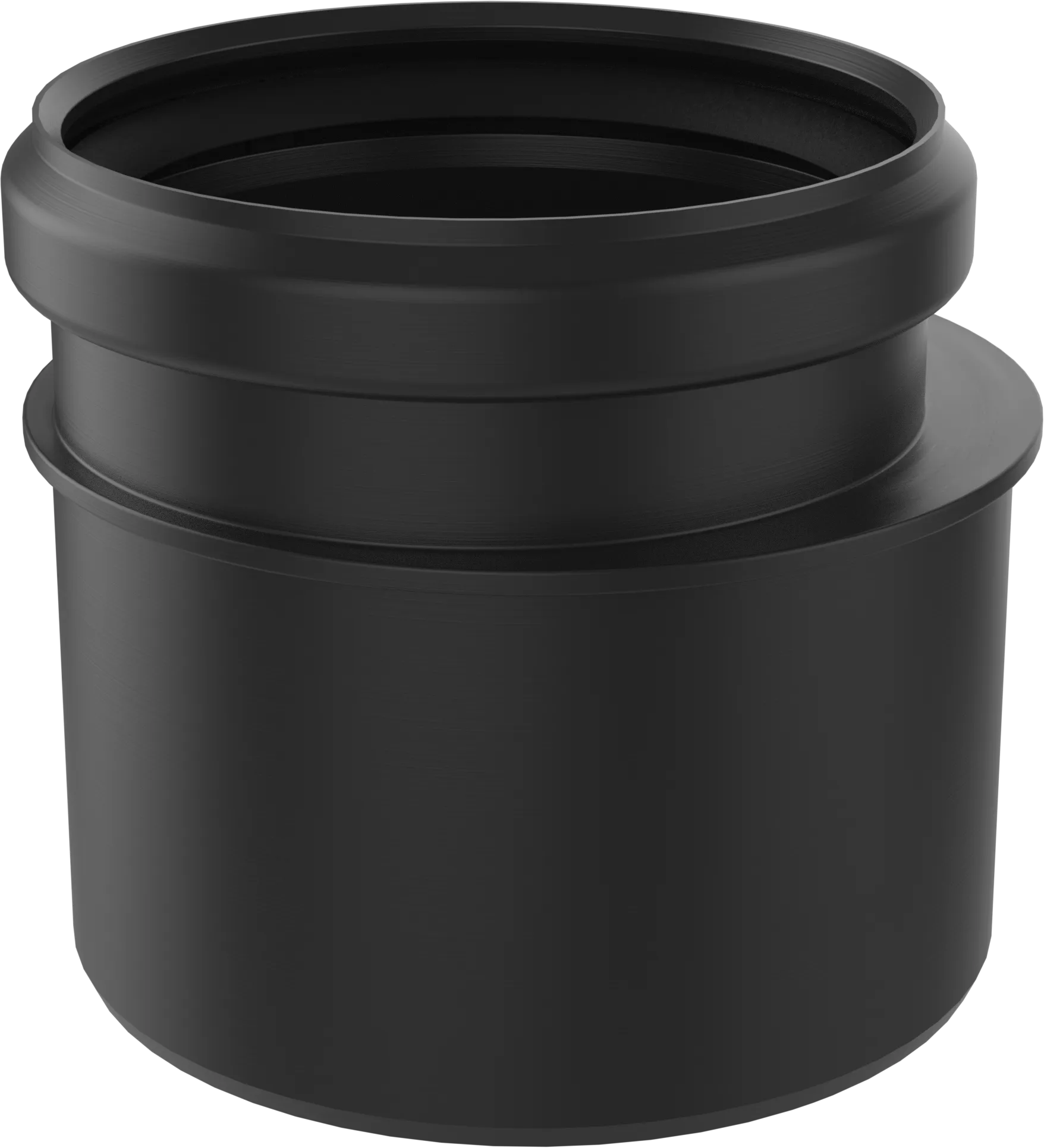

| 8050390091 | Adaptador PE 90/110 (embalado individualmente) |
|
| 8050887372 | Adaptador PE 90/100 (embalado individualmente) |
|

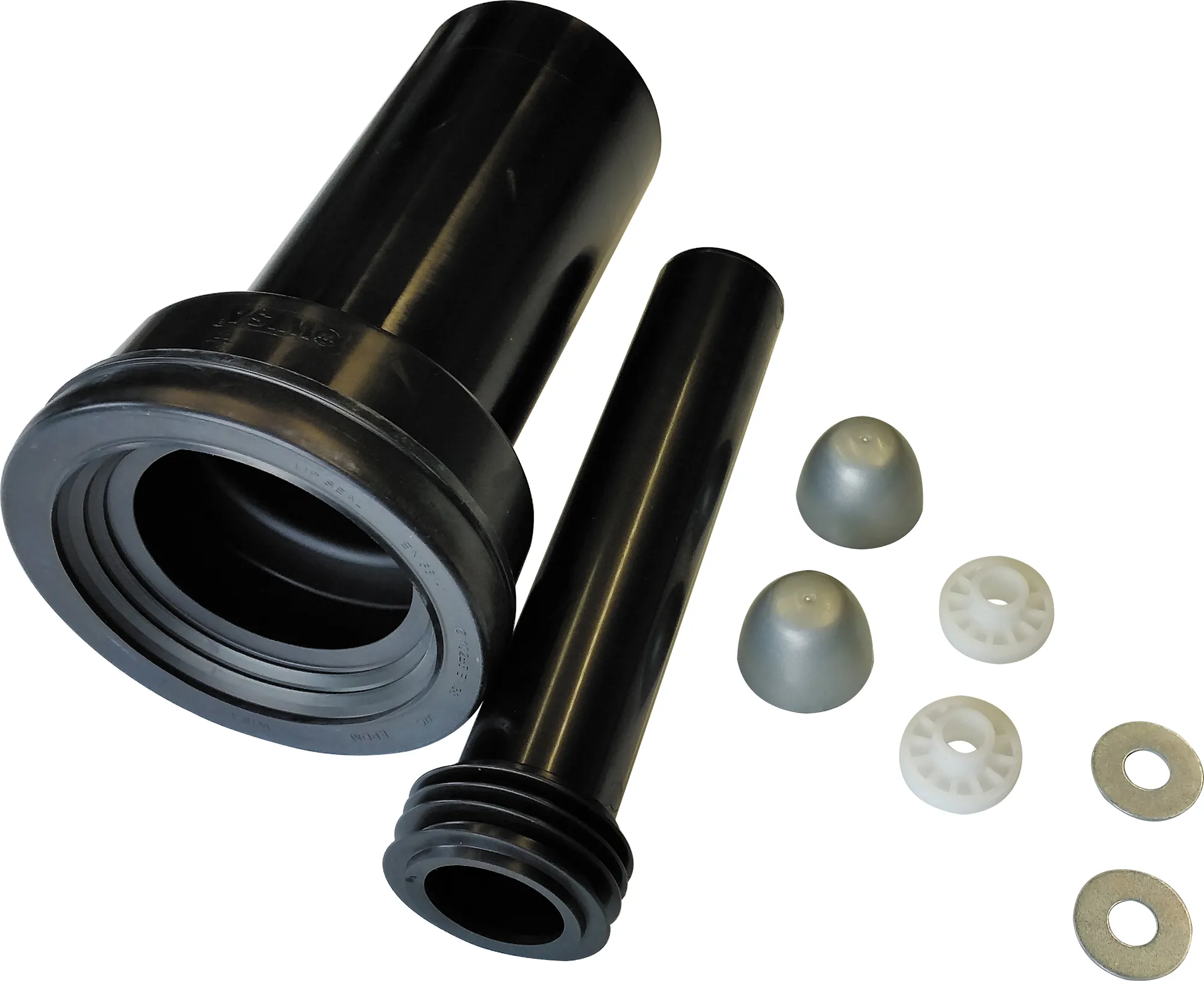

| 8050390080 | Juego de conexiones para inodoro L=230mm |
|

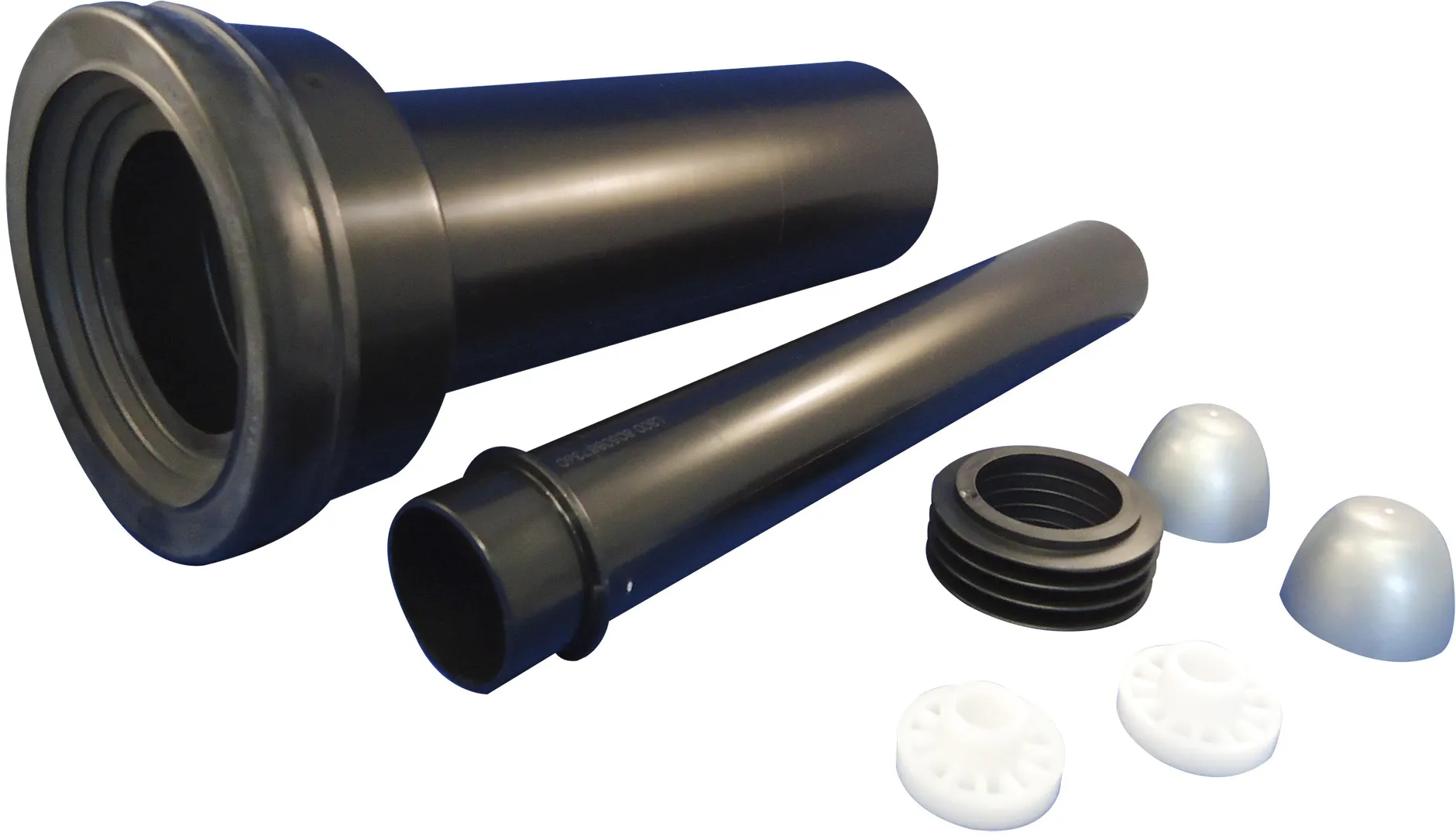

| 8050390081 | Juego de conexiones para inodoro L=300mm |
|

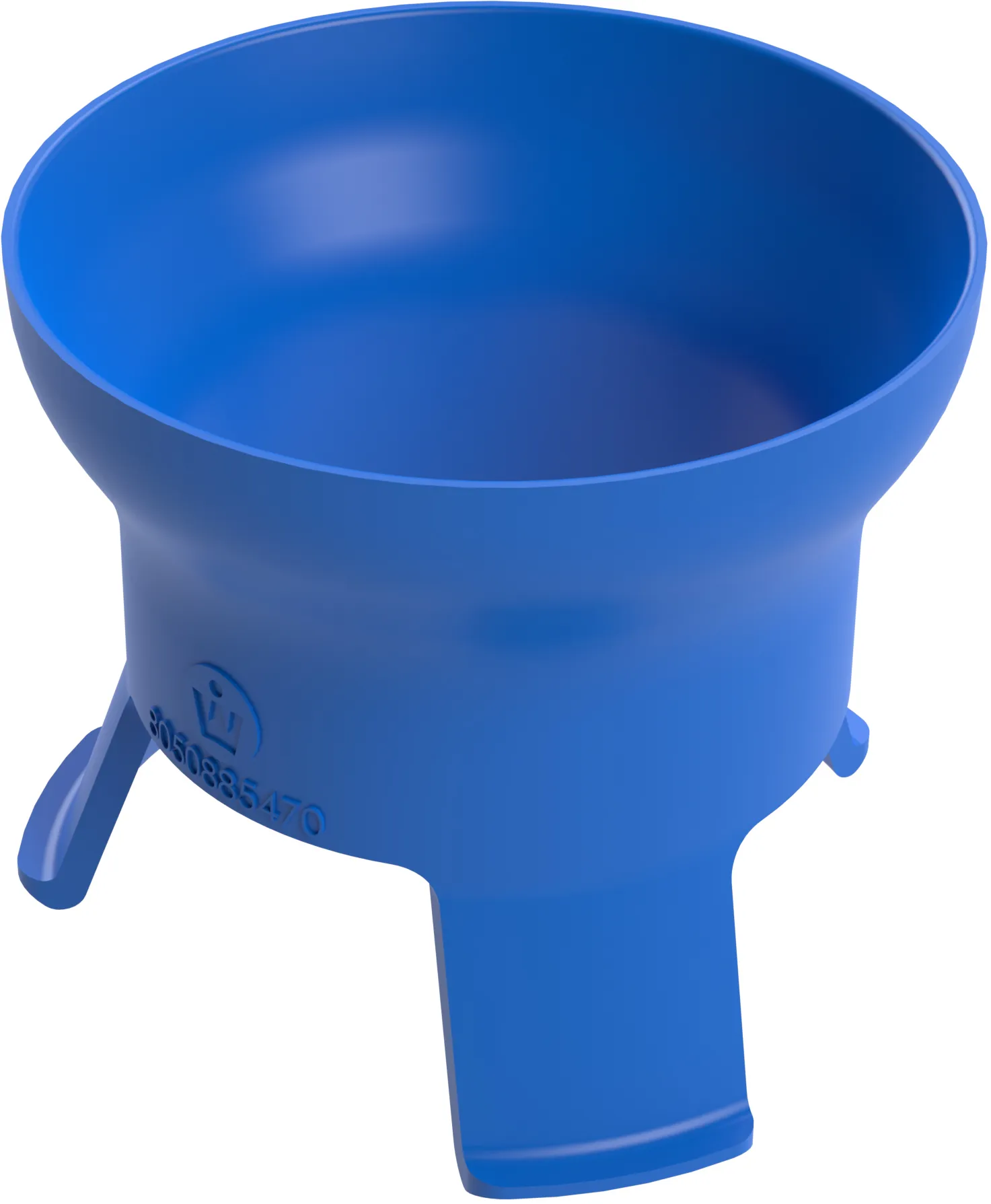

| 8050885470 | Reductor WISA XS/XT (azul) |
|
